Agilex
最小轨道

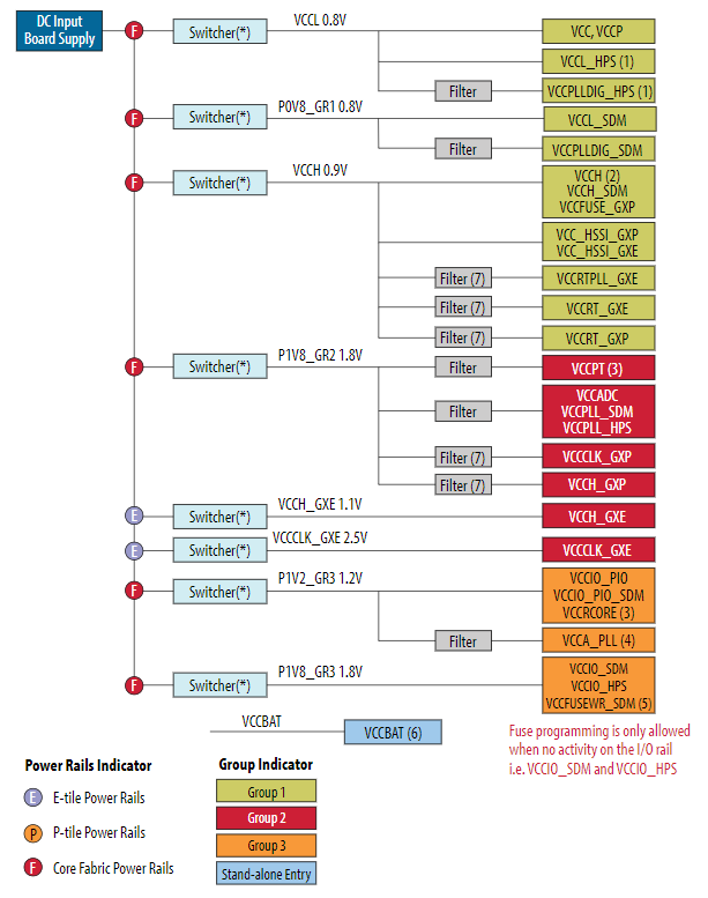

电源树映射 – PVIN = 12V
| # | 轨 | 顺序 | 电源组件 | 类型 | 上游铁路 | 输入电压（V） | 输出电压 (V) | 电流输出 (A) | AnDAPT PMIC |
| 1 | VCCL (VCC, VCCP, VCCL_HPS, VCCPLLDIG_HPS, VCCL_SDM, VCCPLLDIG_SDM) | 1 | C870 | 2-Ph DrMOS Ctrl | PVIN | 12 | 0.8 | 60 | ARD_A_AGILEX_IC1 |
| 2 | VCCH (VCCH, VCCH_SDM, VCCFUSE_GXP, VCC_HSSI_GXP, VCC_HSSI_GXE, VCCRTPLL_GXE, VCCRT_GXE, VCCRT_GXP) | 1 | C860 | 1-Ph DrMOS Ctrl | PVIN | 12 | 0.9 | 30 | ARD_A_AGILEX_IC1 |
| 3 | P1V8_GR2 (VCCPT, VCCADC, VCCPLL_SDM, VCCH_GXP, VCCH_GXP) | 2 | C220 | 同步降压高电流 | PVIN | 12 | 1.8 | 10 | ARD_A_AGILEX_IC1 |
| 4 | VCCH_GXE | 2 | C200 | 同步降压 | PVIN | 12 | 1.1 | 4 | ARD_A_AGILEX_IC1 |
| 5 | VCCCLK_GXE | 2 | C200 | 同步降压 | PVIN | 12 | 2.5 | 3 | ARD_A_AGILEX_IC2 |
| 6 | P1V2_GR3 | 3 | C200 | 同步降压 | PVIN | 12 | 1.2 | 6 | ARD_A_AGILEX_IC2 |
| 7 | P1V8_GR3 | 3 | C220 | 同步降压高电流 | PVIN | 12 | 1.8 | 6 | ARD_A_AGILEX_IC2 |

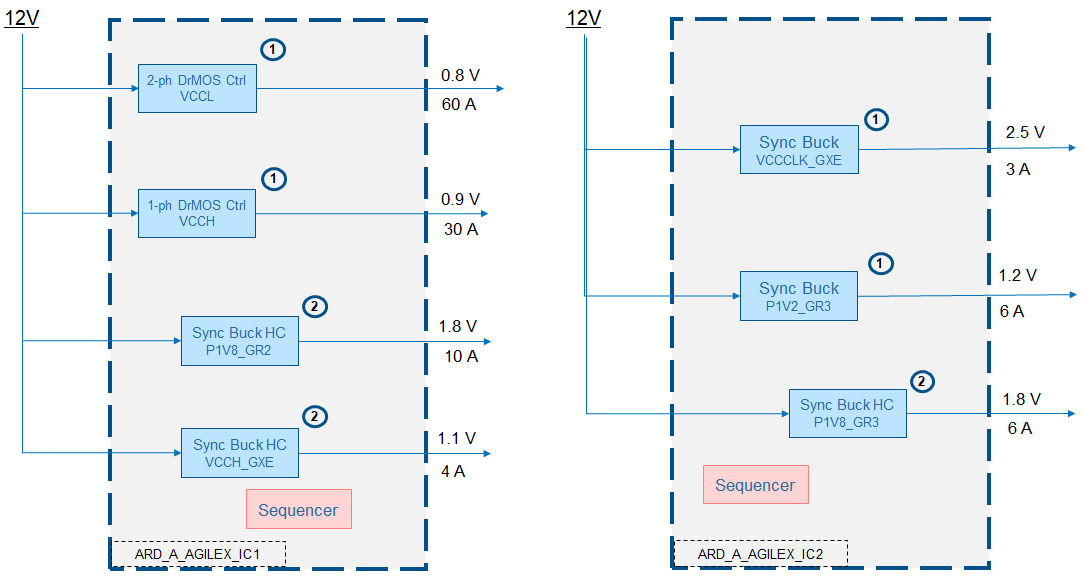

ANDAPT解决方案

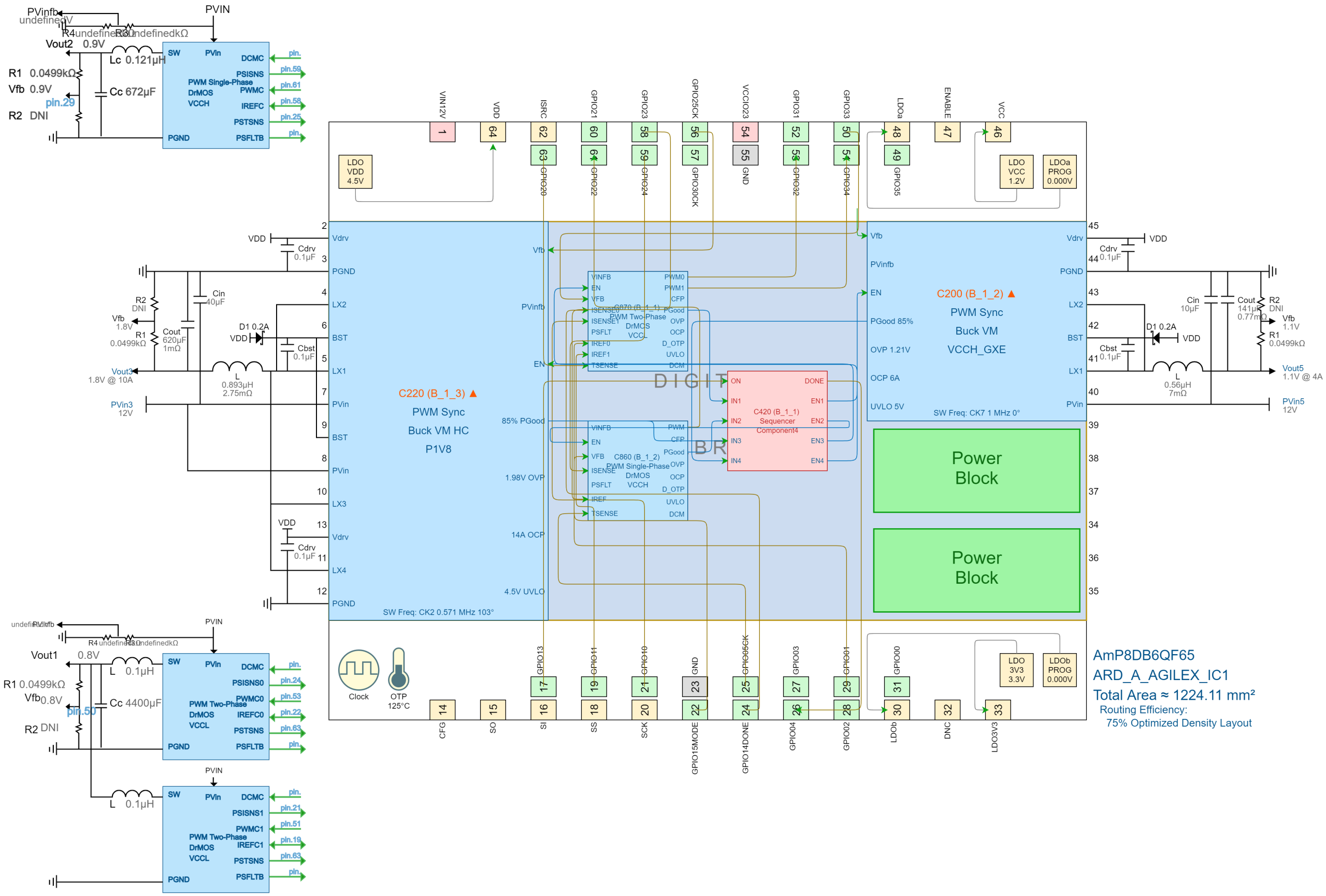

设计视图 IC1

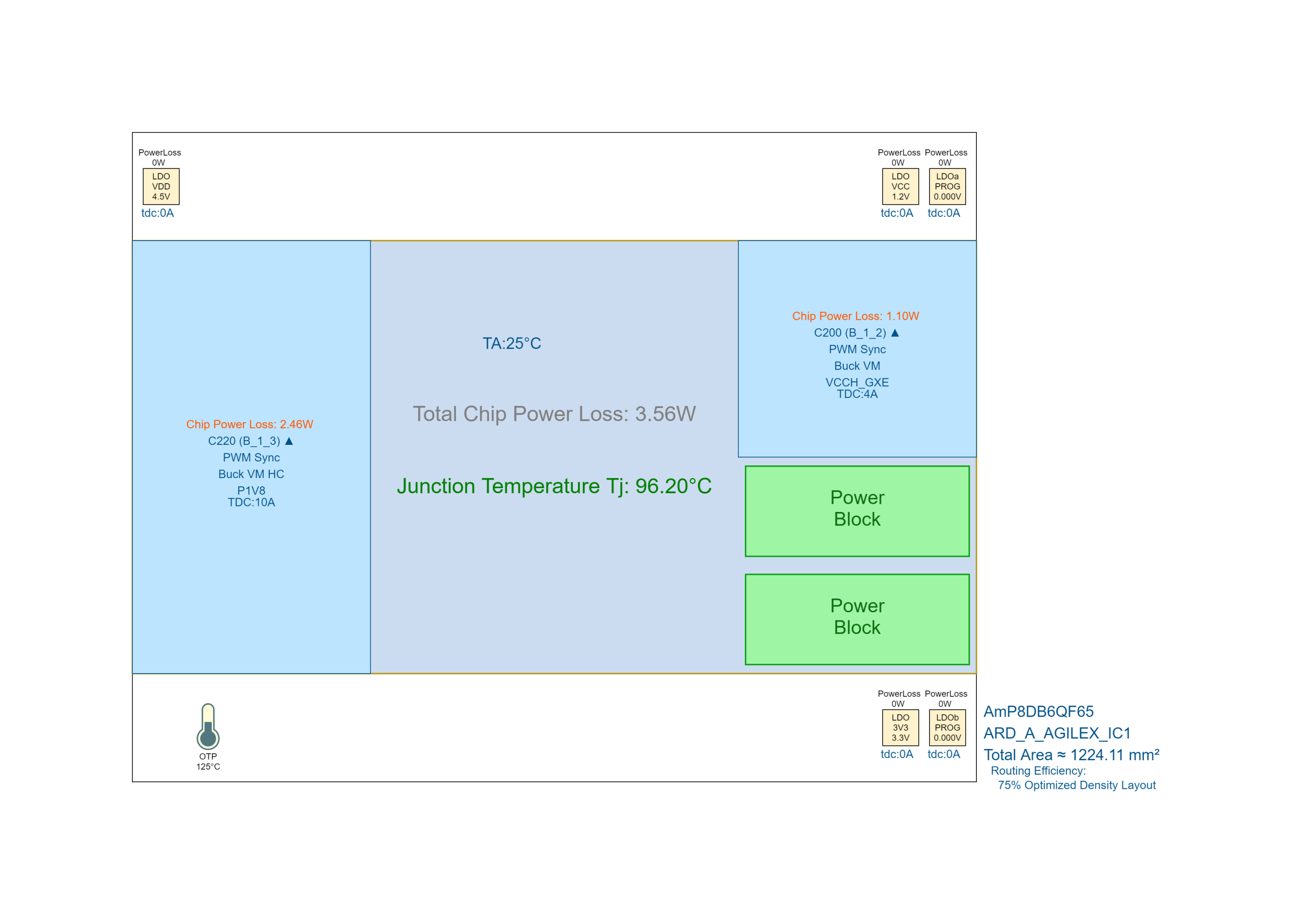

热视图 IC1

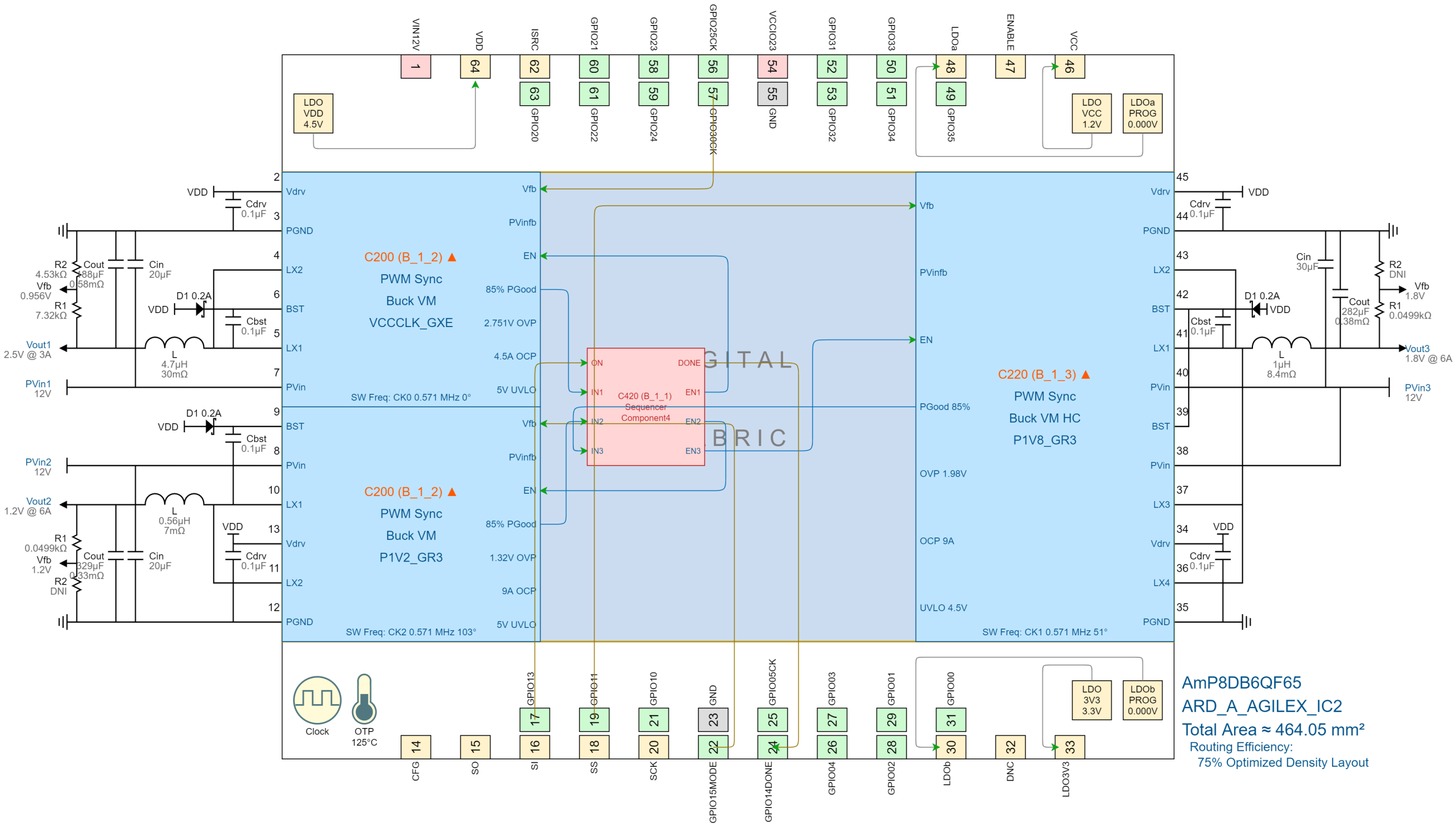

设计视图 IC2

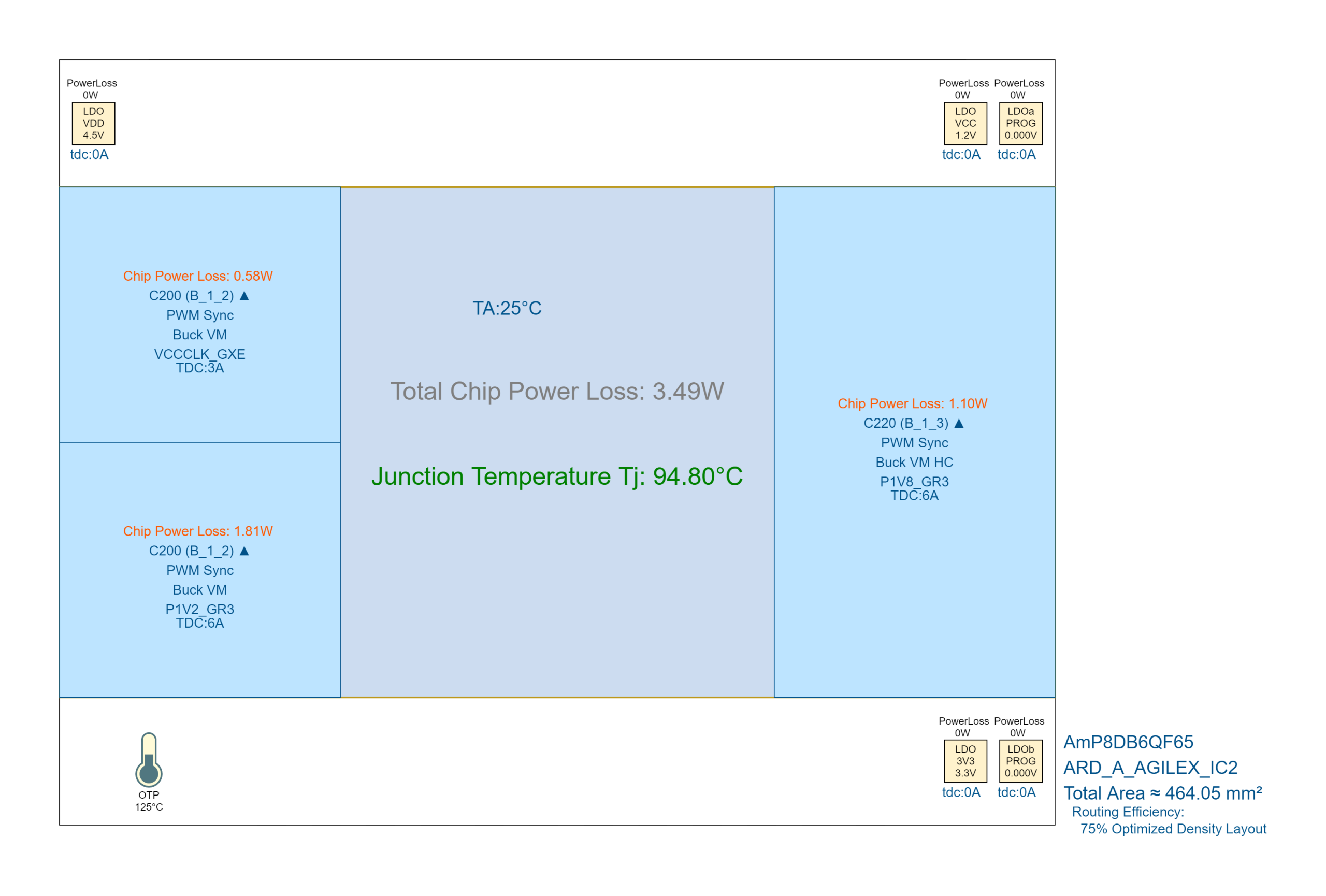

热视图 IC2
