Arria 10 GT

ARD_A_ARR10GT

Arria 10 GT

The ARD_A_ARR10GT is a scalable power supply designed to provide power to Intel Altera Arria 10 GT devices. The design is scalable and flexible to support the FPGA family SKUs from the most basic 10AT090 to the most feature-rich and power hungry 10AT115. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of Arria 10 GT FPGA solutions.


POWER TREE MAPPING – ARRIA 10 GT

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCC
(VCC, VCCP)
1C8702-Ph DrMOS CtrlPVIN120.9555ARD_A_ARR10GT_IC1
2VCCERAM2C220Sync Buck
High Current
PVIN120.954ARD_A_ARR10GT_IC1
3VCCA_PLL3C200Sync BuckPVIN121.82.5 + 0.5ARD_A_ARR10GT_IC1
4VCCIO4C710LDOVCCA_PLL1.81.20.5ARD_A_ARR10GT_IC1

ANDAPT SOLUTION

ARD_A_ARRIA10GX_A AnDAPT Solution

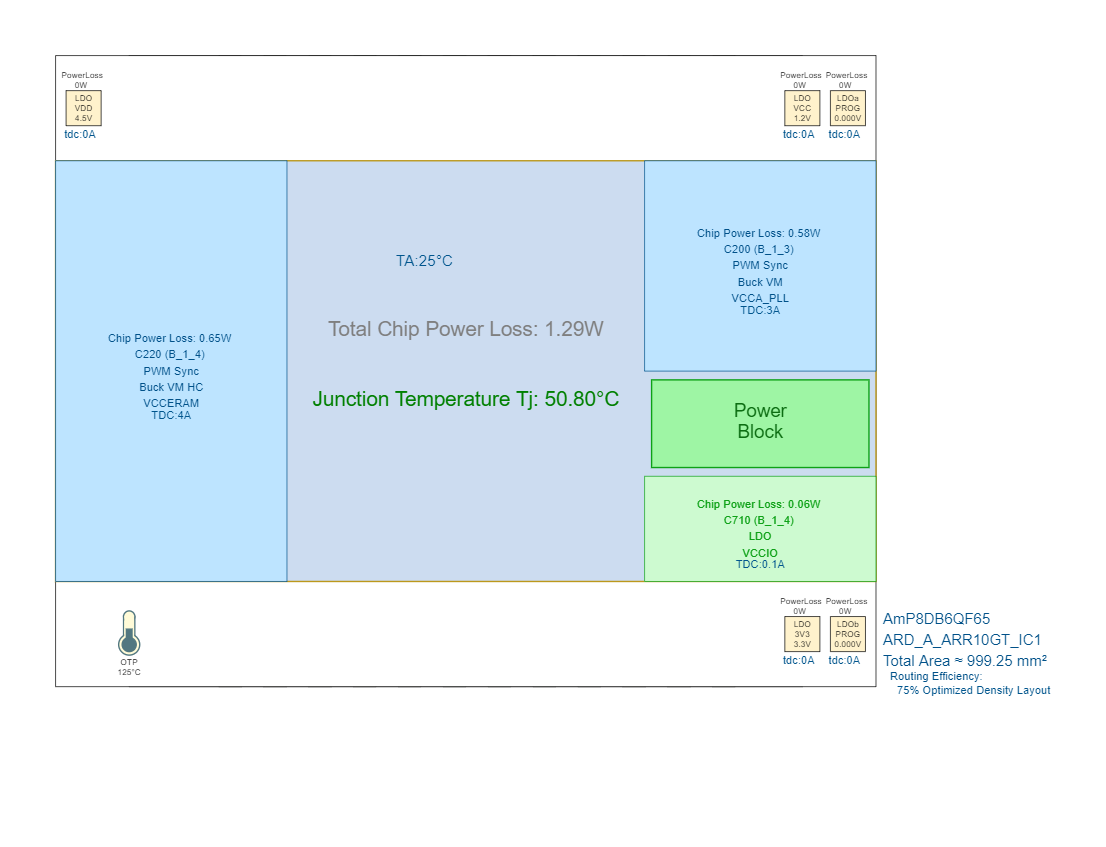

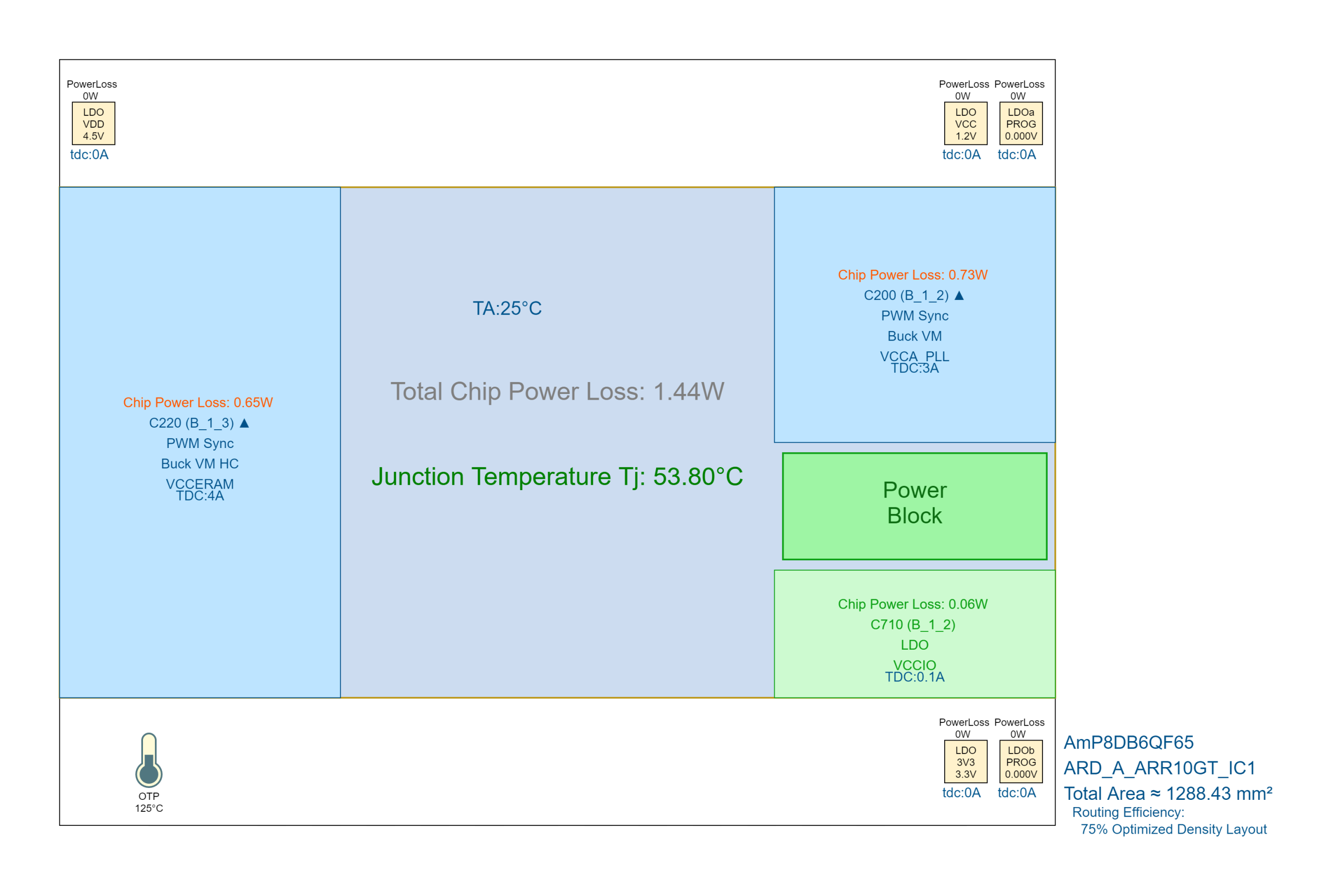

THERMAL VIEW IC1

ARD_A_ARRIA10GX_A Thermal View IC1

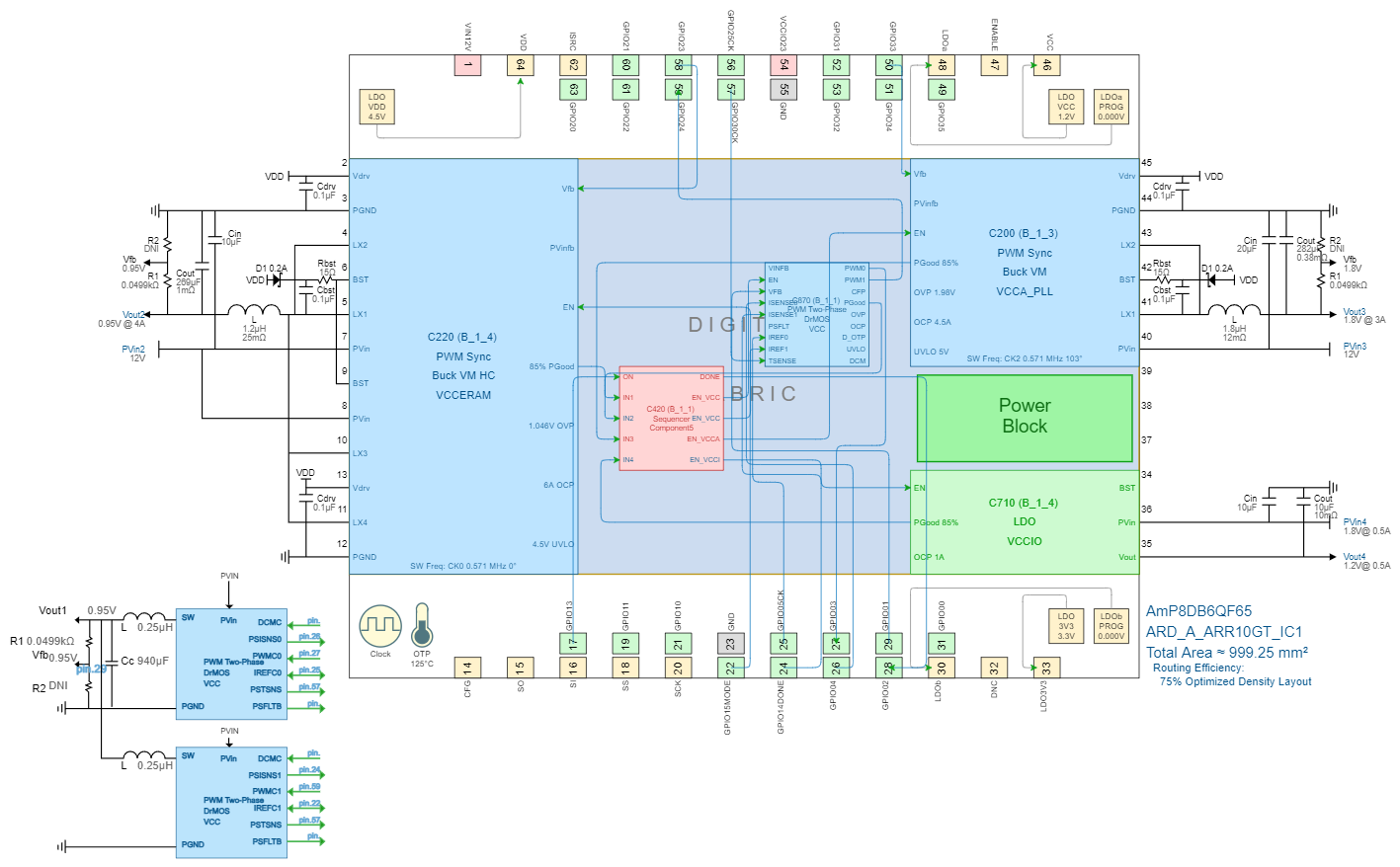

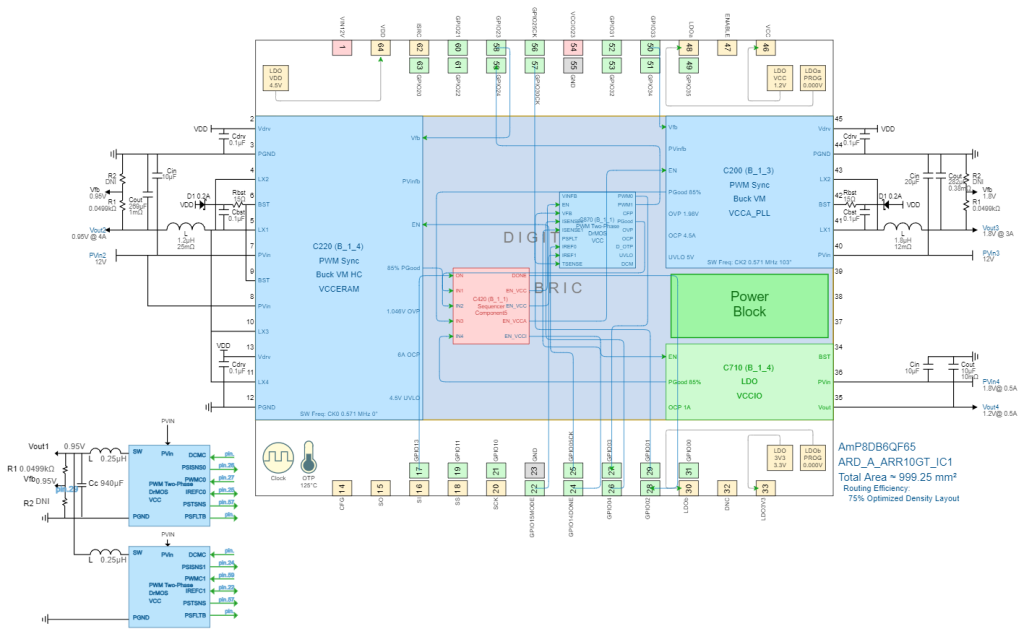

DESIGN VIEW IC1

ARD_A_ARRIA10GX_A Design View IC1
