On-Demand Select, Integrate Power Components

AmP Power Components are proven software-based (IP) library offerings, that replace traditional single function catalog devices, such as Buck, Boost, Buck-Boost, DrMOS controller, Load Switches, LDOs, Battery Chargers and Sequencers.


List of Components

CategoryFunctionPro SeriesI2C Series
PWM
Switching Regulator
Integrated Switch
PWM Sync Buck VM
PWM Sync Buck VM High Current
PWM Async Buck VM
C200
C220
C150
I200
I220
Linear RegulatorLDO-SSR CV Source Side Regulation
LDO-DDR CV Push-Pull DDR RAM
C710
Load SwitchLoad Switch, Slew Rate Controlled, Current LimitC750
DrMOS ControllerPWM Buck DrMOS [ACM]C860I860
SupervisorSequencer
Gate
Clock Source
DFF4
Reference Comparator
I2C Control
C420
C430
C431
C432
C434
I480

Software Based Power Components

Switching Regulator Topologies, Linear Topologies, Controllers, Chargers and Supervisor.

Proven, Pre-built, Best Figures of Merit.

  • Regulators: Buck, Boost, Buck-Boost, Synchronous/Asynchronous, Single/Multi-phase.
  • Linear: LDO-SSR, LDO-DSR, LDO-DDR, Load Switch.
  • Controllers: Buck, Single/Multi-Phase, External MOSFET or DrMOS.
  • Mixed topologies: Battery chargers, H-Bridges.
  • Regulation: PWM PID Single/Dual Pole, Hysteretic CoT/CoF, Linear, Hybrid.
  • Supervisors: Sequencers, Fault Managers, Timers.
  • Telemetry: Control, Monitor, Voltage Scale, I2C or DVS.

Buck Regulators

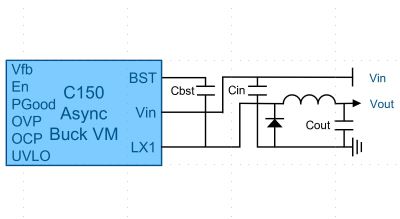

C150: Buck Regulator, PWM, Voltage Mode

  • Voltage mode control.
  • 1% load regulation.
  • 95% peak efficiency.
  • Vin: 3.0 to 14 V
  • Vout: 0.6 to 5.5 V
  • Iout: 6.0 A
  • Integrated 30 mΩ MOSFETs.
  • Adjustable switching frequency.
  • Adaptable stability, bandwidth, gain and phase margin.
  • Internal adjustable soft start and stop.
  • Adjustable protections: Under-voltage lockout (UVLO), over-current (OCP), over-voltage (OVP), and over-temperature (OTP).
  • One SIM element.

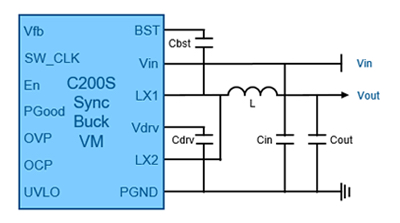

C200: Buck Regulator, PWM, Voltage Mode

  • Voltage mode control.
  • 1% load regulation.
  • 95% peak efficiency.
  • Vin: 3.0 to 14 V
  • Vout: 0.6 to 5.5 V
  • Iout: 6.0 A
  • Integrated 30 mΩ MOSFETs.
  • Adjustable switching frequency.
  • Adaptable stability, bandwidth, gain and phase margin.
  • Internal adjustable soft start and stop.
  • Adjustable protections: Under-voltage lockout (UVLO), over-current (OCP), over-voltage (OVP), and over-temperature (OTP).
  • Two SIM elements.

C220: Buck Regulator, PWM, Voltage Mode

  • 2 High-Side, 2 Low-Side Drivers.
  • Voltage mode control.
  • Vin: 3.0 to 14 V
  • Vout: 0.6 to 5.5V
  • Iout: 10.0 A
  • Integrated 30 mΩ MOSFETs.
  • Adjustable switching frequency.
  • Adaptable stability, bandwidth, gain and phase margin.
  • Internal adjustable soft start and stop.
  • Adjustable protections: Under-voltage lockout (UVLO), over-current (OCP), over-voltage (OVP), and over-temperature (OTP).
  • Four SIM elements.

Low-Dropout (LDO) Regulators

Load Switches

DrMOS Controllers

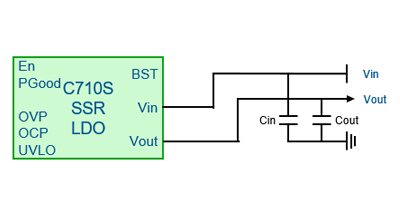

C710: LDO, Source-Side Regulator

  • Vin: 0.7 to 6.0 V
  • Vout: 0.6 to 3.3V, internally adjustable
  • Iout: 6.0 A
  • 100 mV dropout voltage.
  • Integrated current sense.
  • Enable input and Power Good flag with programmable delays.
  • Adjustable protections: Under-voltage lockout (UVLO), over-current (OCP), over-voltage (OVP), and over-temperature (OTP).
  • Short-circuit protection (SCP).
  • One SIM element.
  • FREE in WebAmp.

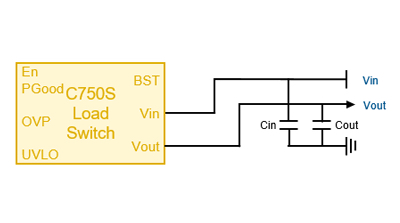

C750: Load Switch, Integrated Current Limit

  • Vin up to 3.3 V
  • Vout: 0.6 to 3.3V, internally adjustable
  • Low 30mΩ RDS(on) for low loss
  • 6A continuous switch current
  • Adjustable over-current protection (OCP)
  • Internal adjustable soft start and stop
  • Slew-rate control for inrush current
  • Enable input and Power Good flag with programmable delays
  • Adjustable protections: Under-voltage lockout (UVLO), over-voltage (OVP), and over-temperature (OTP)
  • Short-circuit protection (SCP)
  • One SIM element

C860: Buck Regulator, PWM

  • Voltage Mode Controller for External DrMOS Drivers
  • Iout: Limited only by DrMOS driver (40A)
  • 1% load regulation
  • Passive-free, one/two-pole compensator
  • Adjustable switching frequency
  • Adaptable stability, bandwidth, gain and phase margin
  • Adjustable switching frequency
  • Internal adjustable soft start and stop
  • Adjustable protections: Under-voltage lockout (UVLO), over-current (OCP), over-voltage (OVP), and over-temperature (OTP)
  • No SIM elements required
