Arria 10 GX

ARD_A_ARR10GX

Arria 10 GX

The ARD_A_ARR10GX is a scalable power supply designed to provide power to Intel Altera Arria 10 GX devices. The design is scalable and flexible to support the FPGA family SKUs from the most basic 10AX048K1F35I1HG to the most feature-rich and power hungry 10AX115U1F45I1SG. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of ARRIA10 GX FPGA solutions.


POWER TREE MAPPING – ARRIA 10 GX

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCC
(VCC, VCCP, VCCERAM)
1C8601-Ph DrMOS CtrlPVIN120.9530ARD_A_ARR10GX_IC1
2VCCR
(VCCR_GXB, VCCT_GXB)
2C220Sync Buck
High Current
PVIN120.9510ARD_A_ARR10GX_IC1
3VCCH_GXB
(VCCH_GXB, VCCPT, VCCA_PLL)
3C200Sync BuckPVIN121.85ARD_A_ARR10GX_IC1
4VCCPGM4C710LDOVCCH_GXB1.81.20.5ARD_A_ARR10GX_IC1
5VCCIO5C710LDOVCCH_GXB1.81.20.5ARD_A_ARR10GX_IC1

ANDAPT SOLUTION

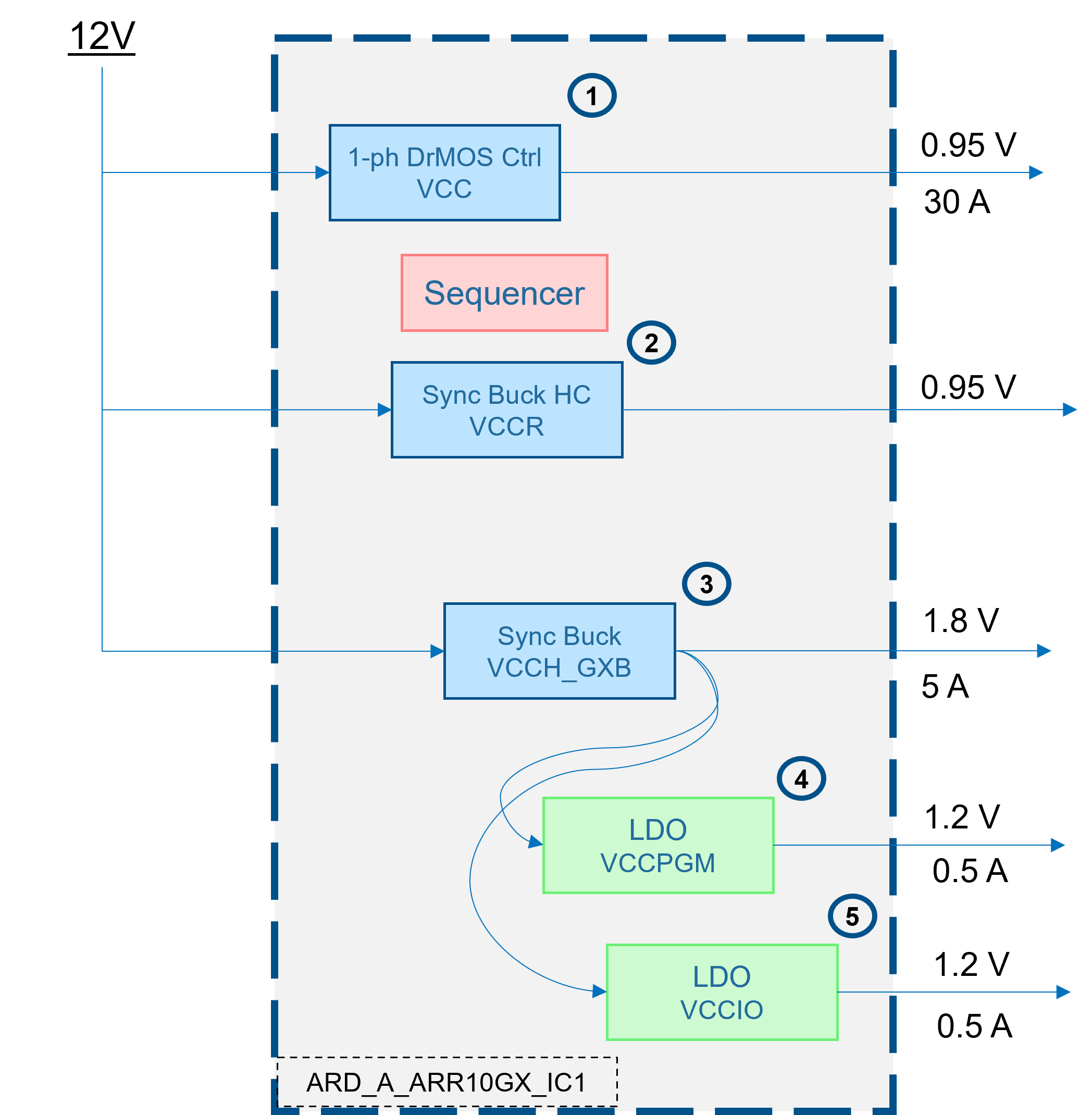

ARD_A_ARRIA10GX_A AnDAPT Solution

THERMAL VIEW IC1

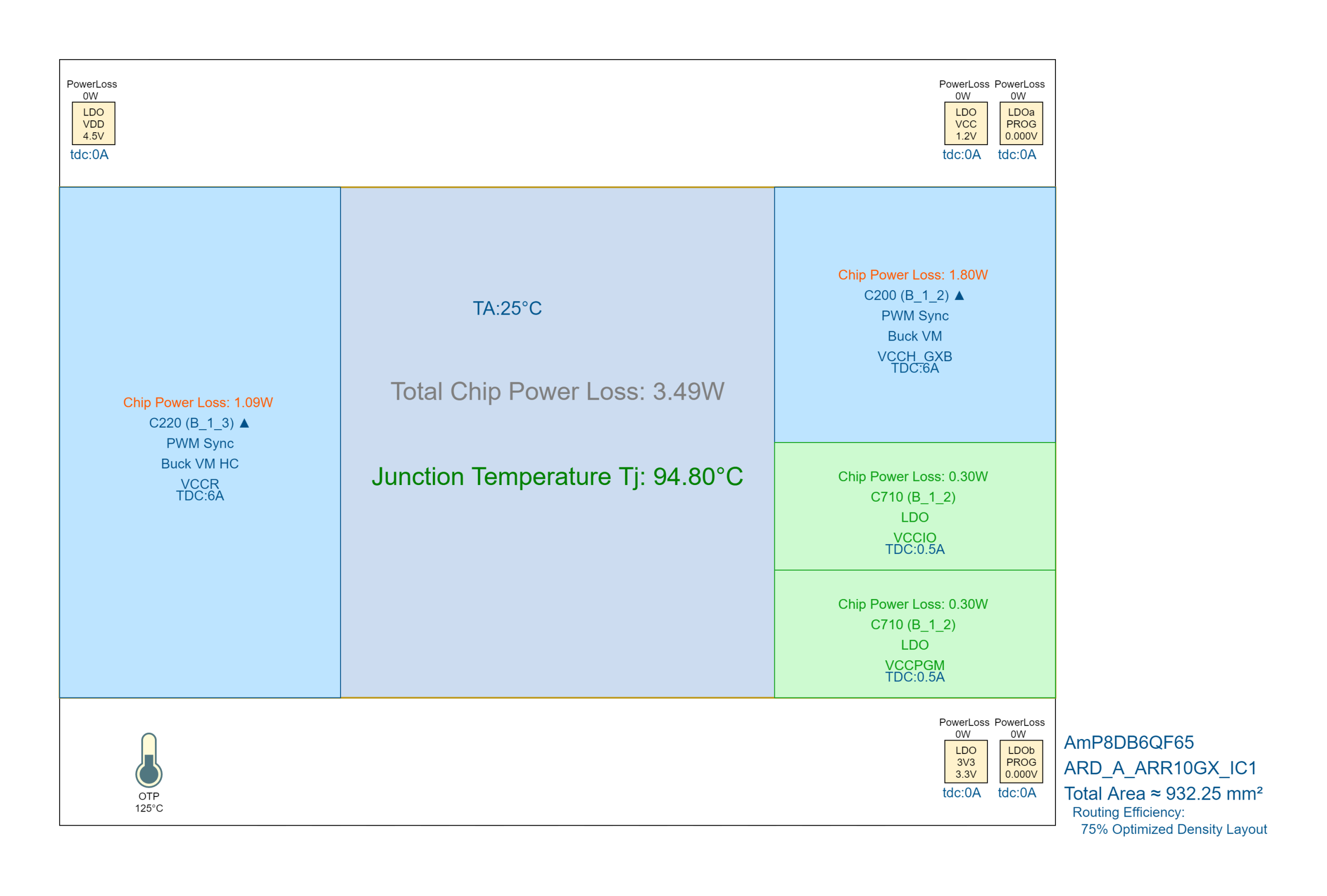

ARD_A_ARRIA10GX_A Thermal View IC1

DESIGN VIEW IC1

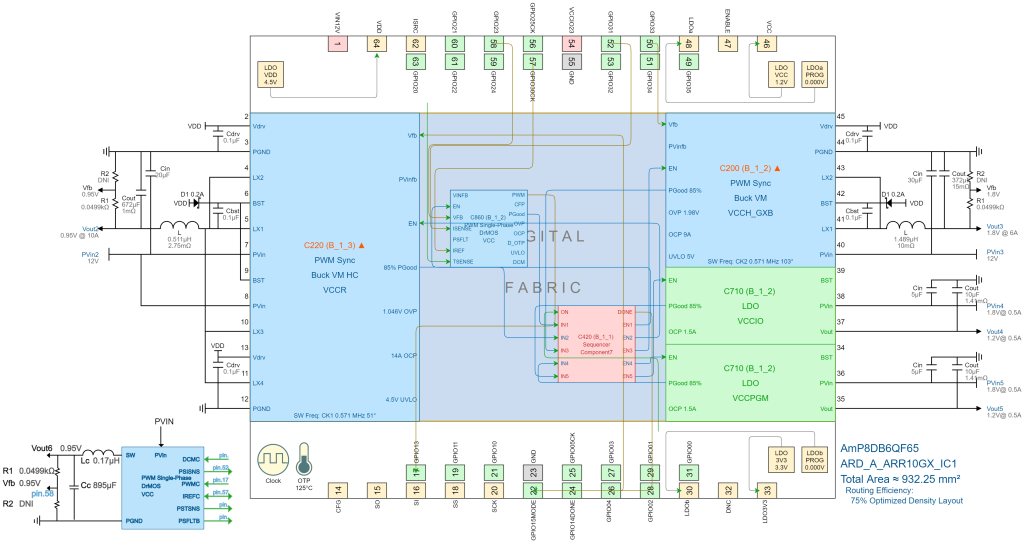

ARD_A_ARRIA10GX_A Design View IC1
