Cyclone V

ARD_A_CYCV

Cyclone V

The ARD_A_CYCV is a scalable power supply designed to provide power to Intel Altera Cyclone V devices. The design is scalable and flexible to support the FPGA family SKUs from the most basic 5CEA2 to the most feature-rich and power hungry 5CSXC2. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of Cyclone V FPGA solutions.


POWER TREE MAPPING – CYCLONE V

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCCINT
(VCCINT_FPGA,
VCCEL_GXB)
1C8651-Ph DrMOS CtrlPVIN121.115ARD_A_CYCV_IC1
2VCCINT_HPS2C200Sync BuckPVIN121.12.5ARD_A_CYCV_IC1
3HPS3V33C200Sync BuckPVIN123.35 + 1ARD_A_CYCV_IC1
4HPS2V5
(HPS_2V5, HPS2V5FLIT)
4C710LDOHPS3V33.32.51ARD_A_CYCV_IC1
5VCCIO
(VCCIO1V5HPS, FPGA1V5)
5C200Sync BuckPVIN121.53ARD_A_CYCV_IC1

ANDAPT SOLUTION

ARD_A_CYCV AnDAPT Solution

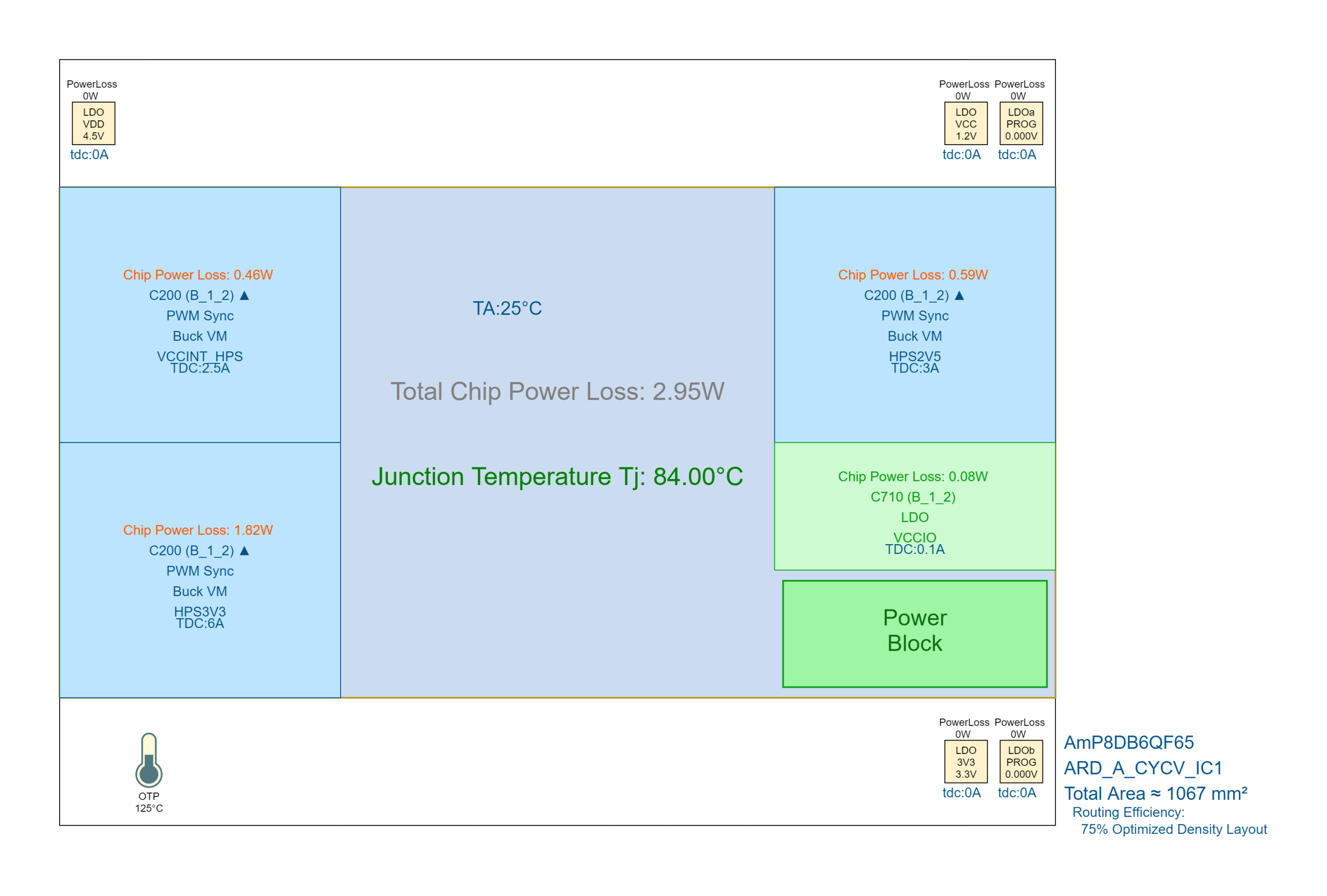

THERMAL VIEW IC1

ARD_A_CYCV Thermal View IC1

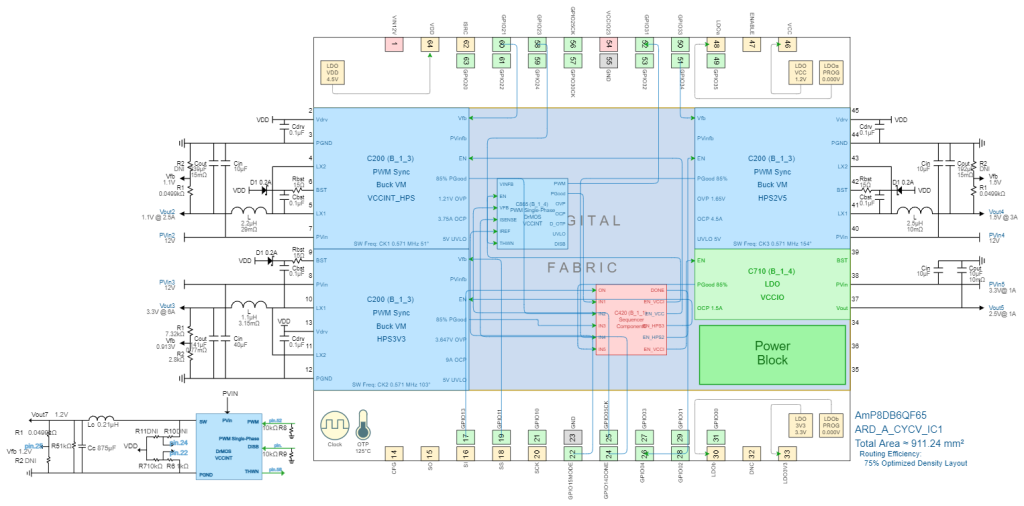

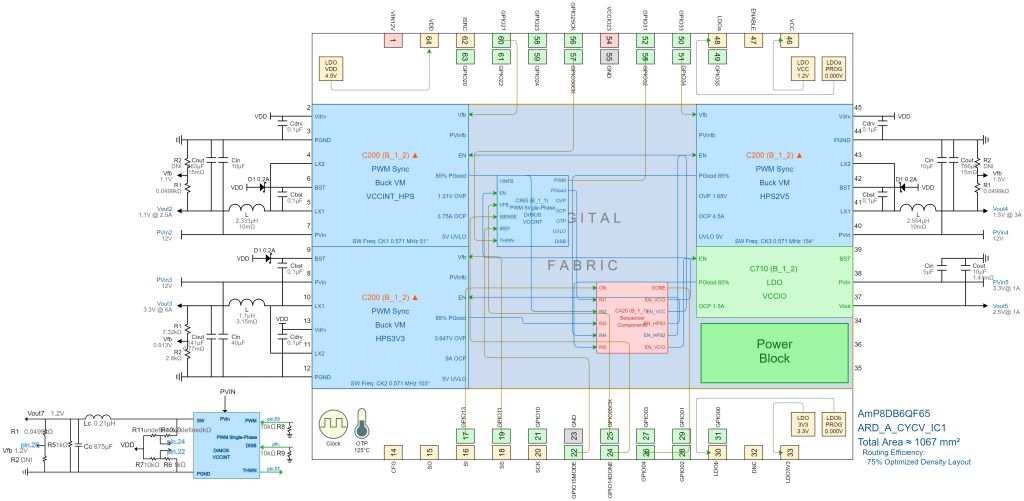

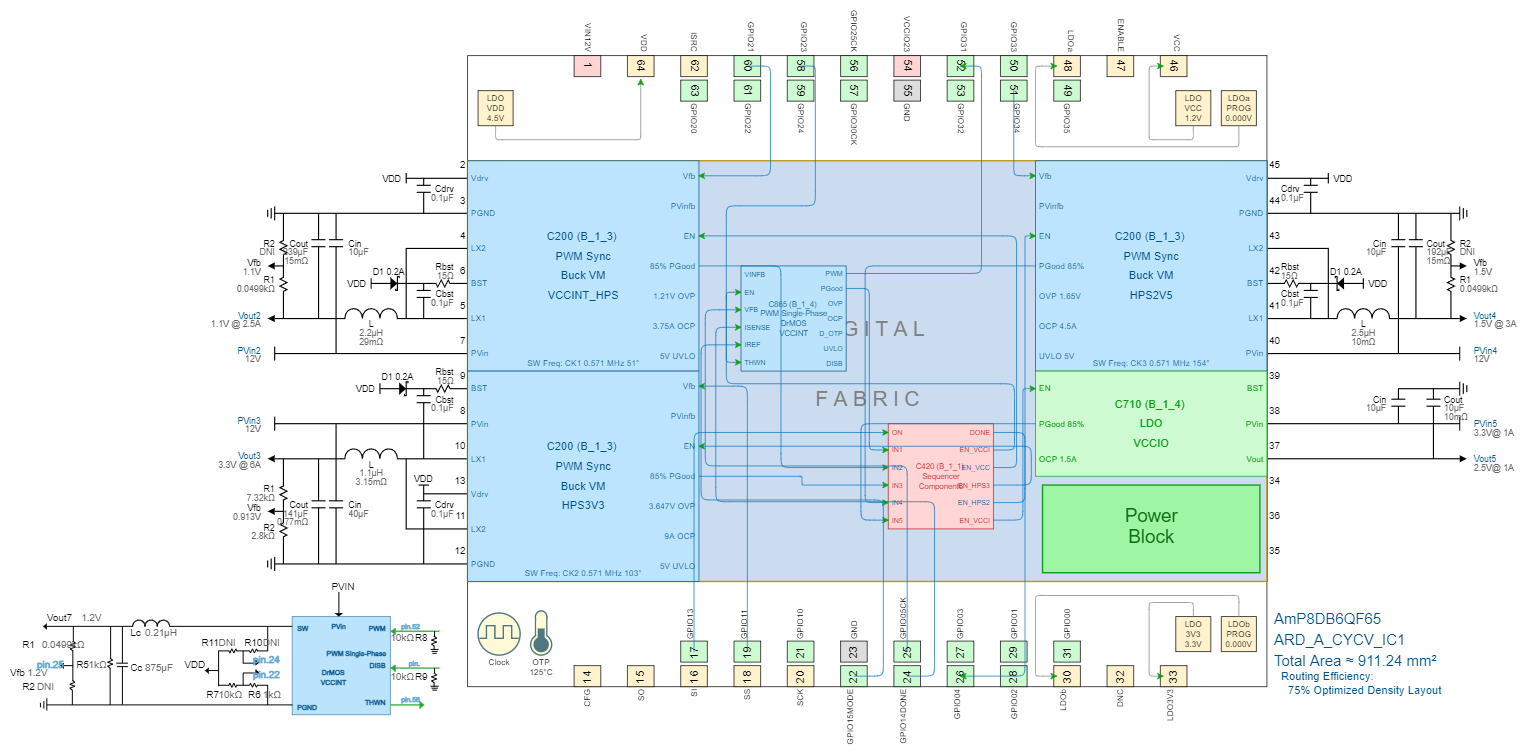

DESIGN VIEW IC1

ARD_A_CYCV Design View IC1
