Stratix 10

The ARD_A_STR10 is a scalable power supply designed to provide power to Intel Altera Stratix 10 devices. The design is scalable and flexible to support the FPGA family SKUs from the most basic GX400 to the most feature-rich and power hungry SX2500. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of Stratix 10 FPGA solutions.


POWER TREE MAPPING – STRATIX 10

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCCINT1C8701-Ph DrMOS CtrlPVIN120.8560ARD_A_STR10_IC1
2ZeroP9V1C200Sync BuckPVIN120.96ARD_A_STR10_IC1
3VCC_GXB2C220Sync Buck
High Current
PVIN121.88ARD_A_STR10_IC1
4VCCPT3C220Sync Buck
High Current
PVIN121.810ARD_A_STR10_IC2
5OneP2V4C200Sync BuckPVIN121.24ARD_A_STR10_IC2
6TwoP4V4C200Sync BuckPVIN122.41ARD_A_STR10_IC2

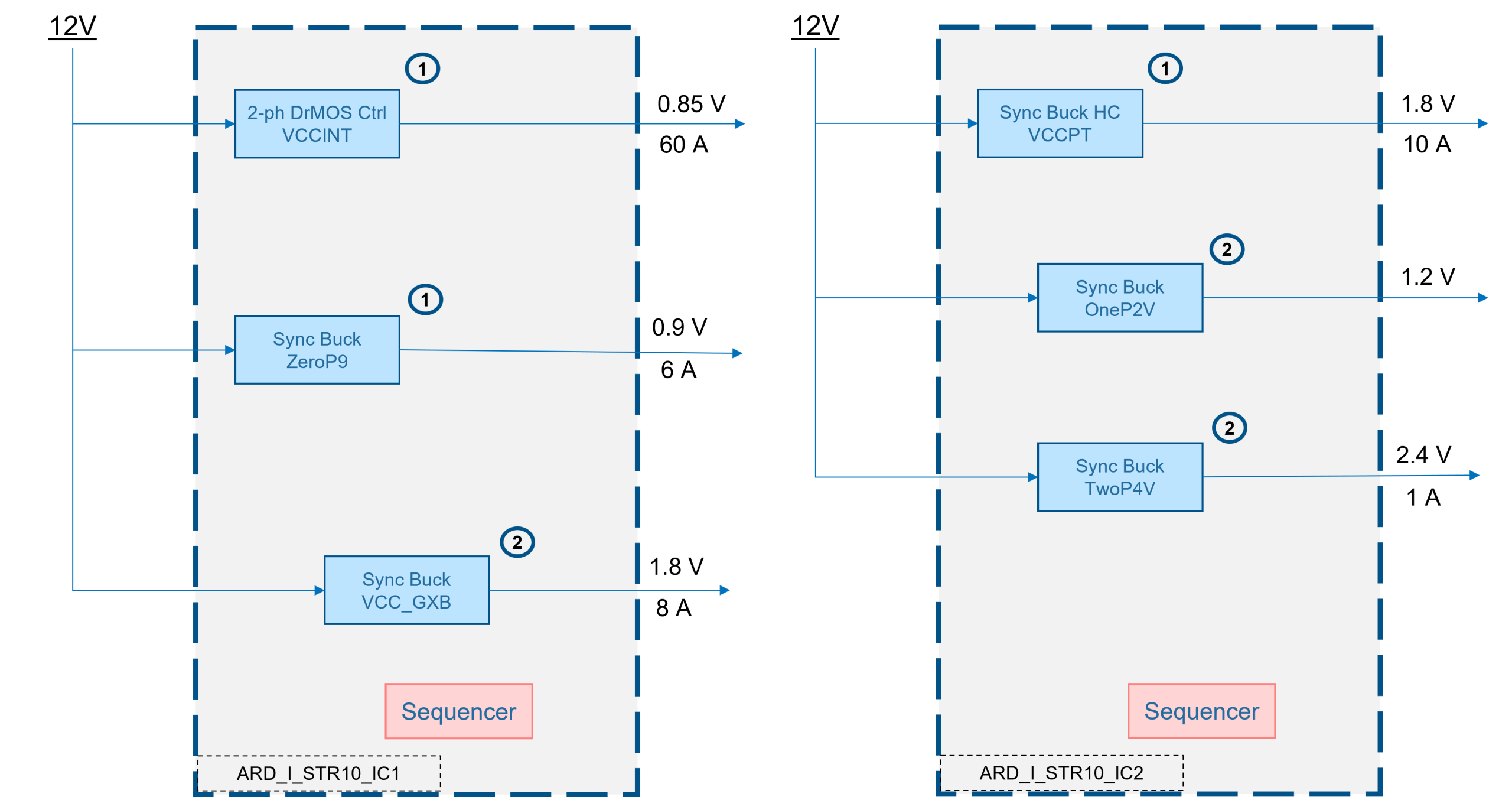

ANDAPT SOLUTION

ARD_I_STRV10 AnDAPT Solution

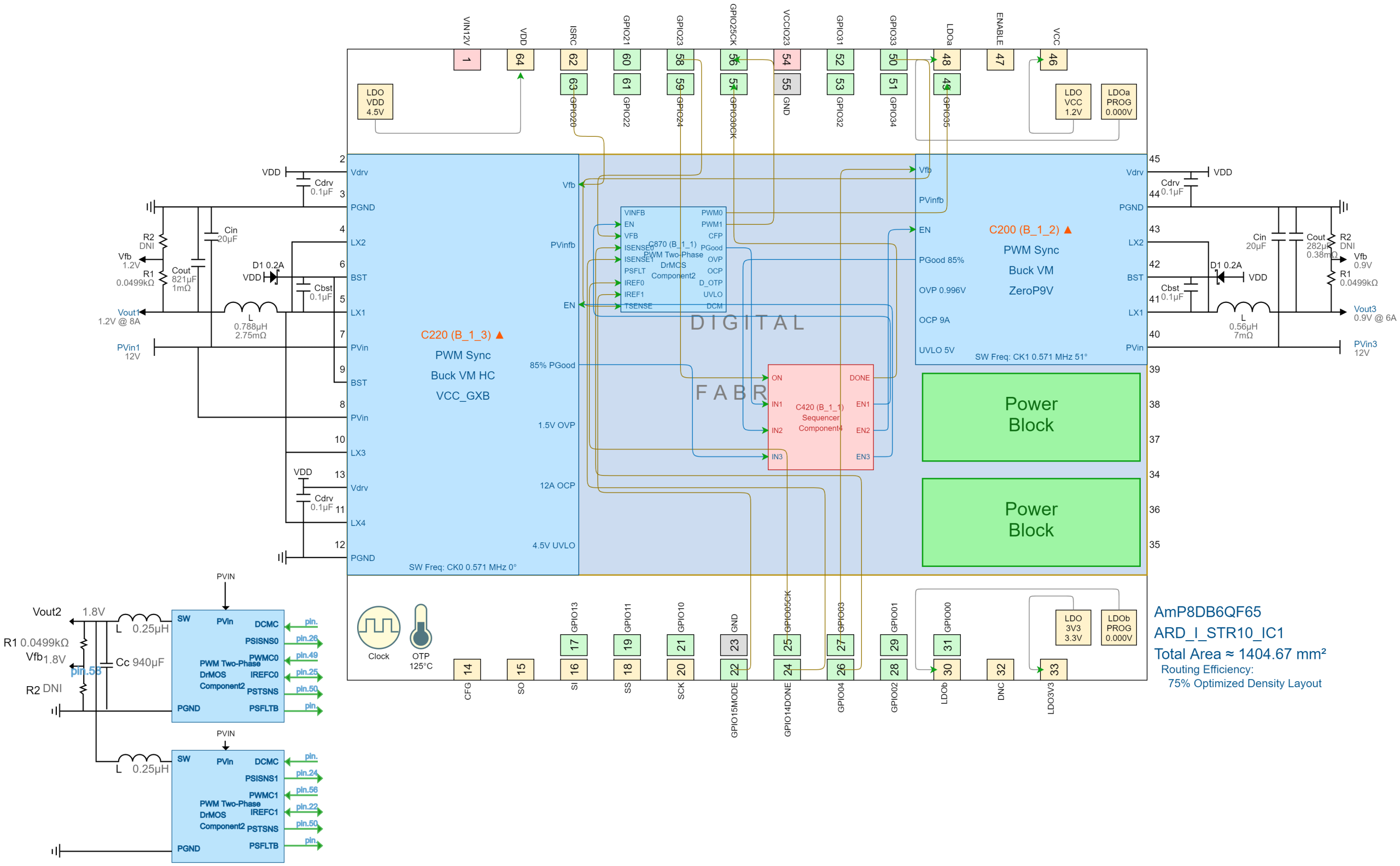

DESIGN VIEW IC1

ARD_I_STRV10 Design View IC1

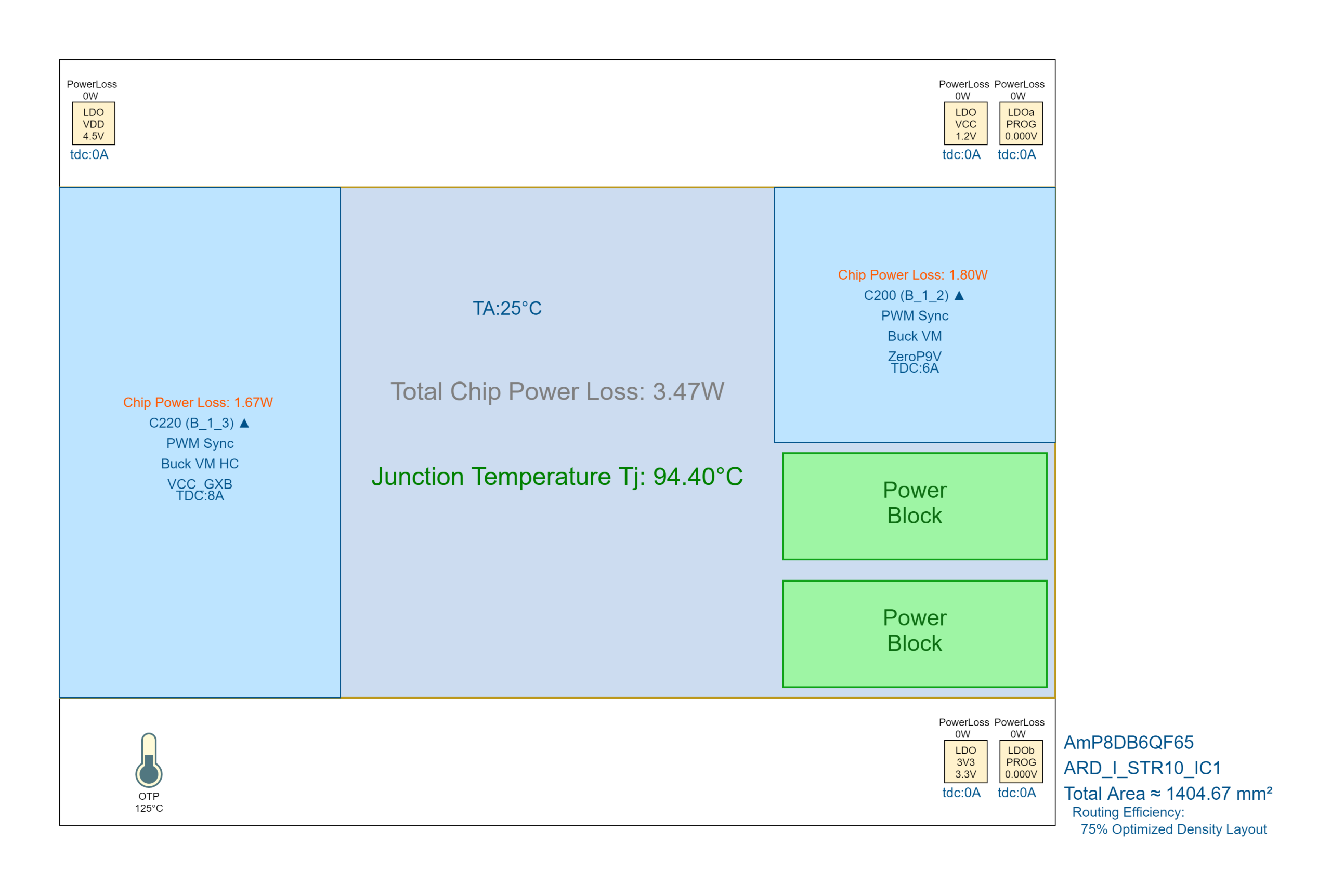

THERMAL VIEW IC1

ARD_I_STRV10 Thermal View IC1

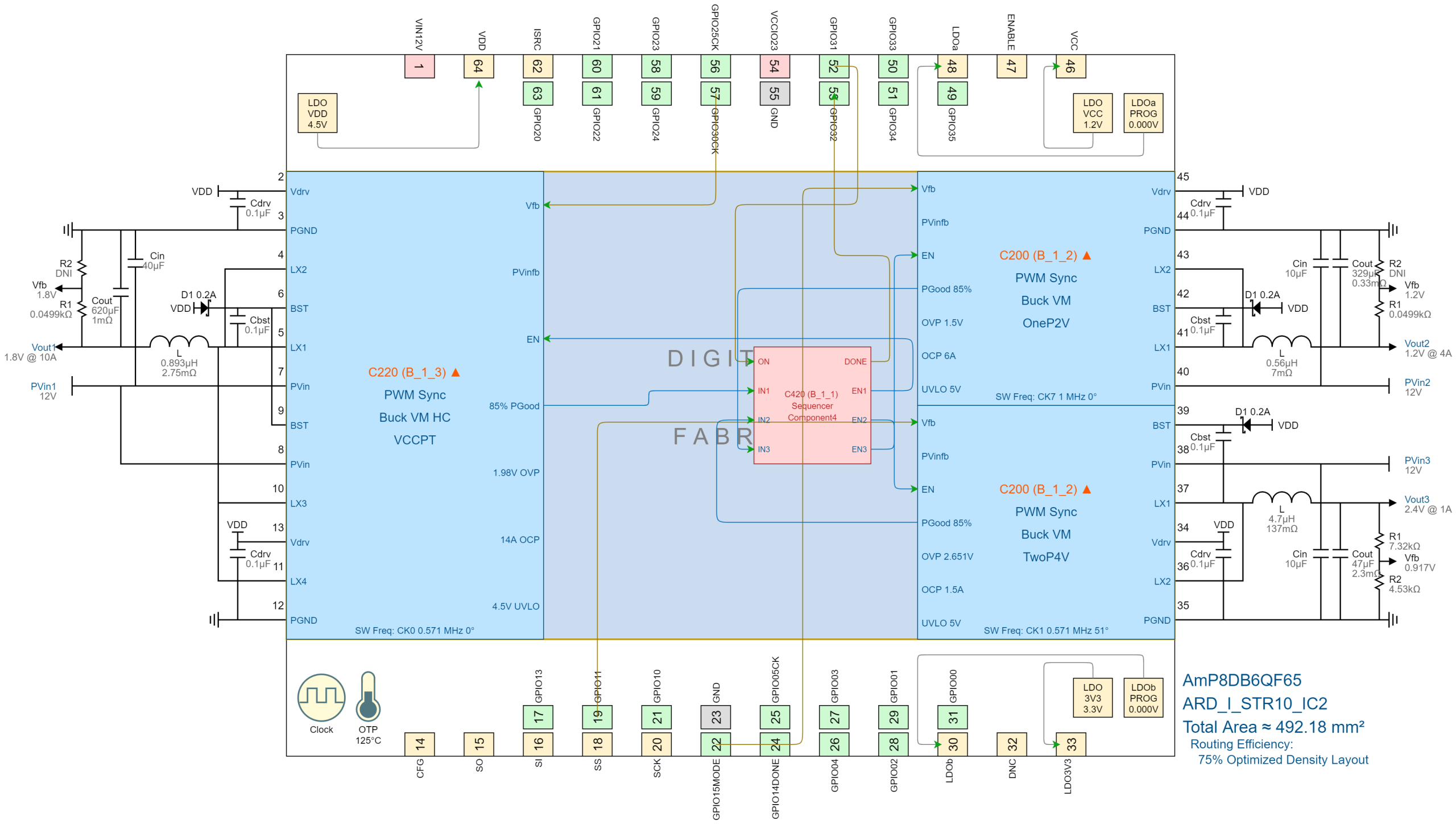

DESIGN VIEW IC2

ARD_I_STRV10 Design View IC2

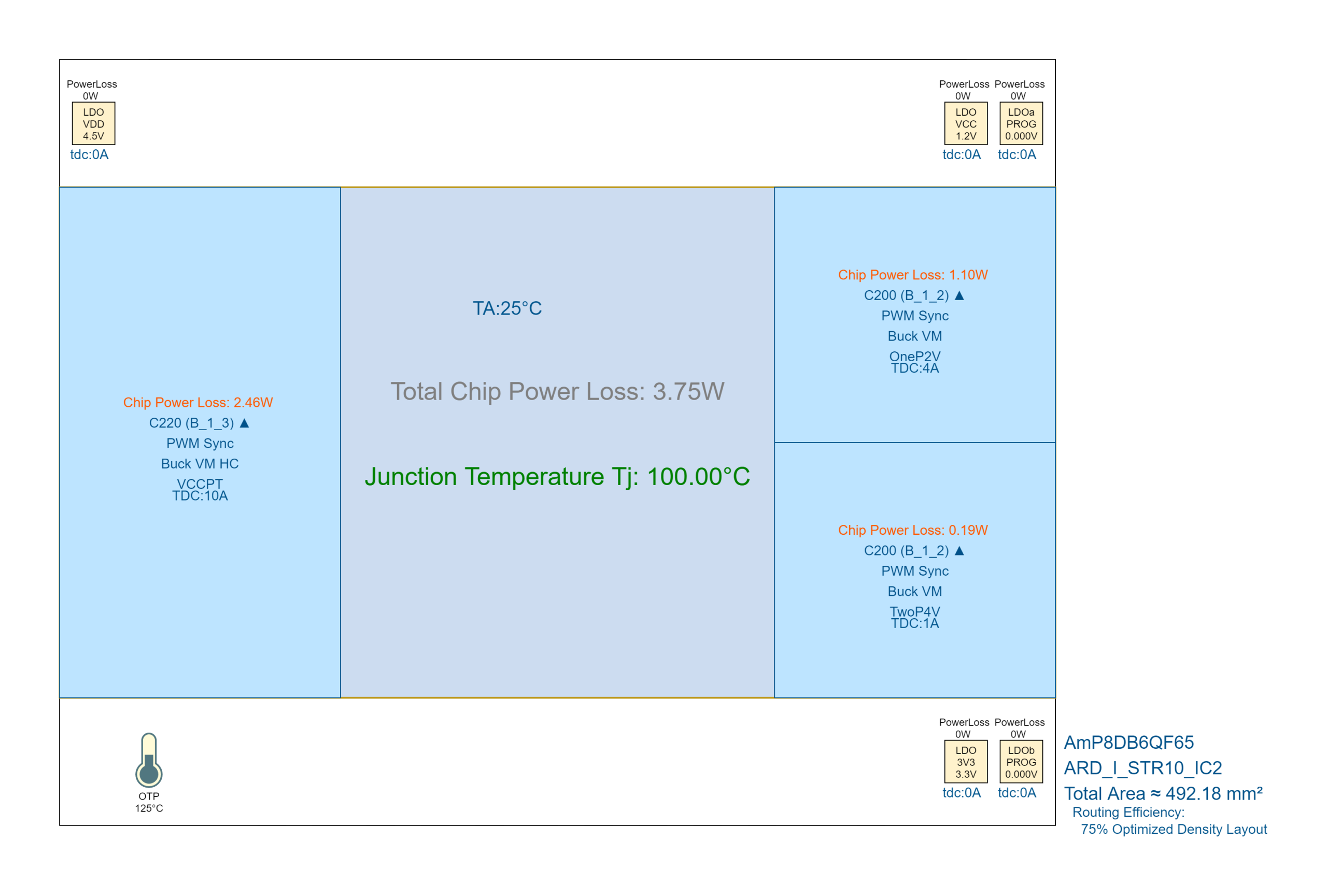

THERMAL VIEW IC2

ARD_I_STRV10 Thermal View IC1
