The ARD_A_STRV is a scalable power supply designed to provide power to Intel Altera Stratix V devices. The design is scalable and flexible to support the FPGA family SKUs from the most basic 5SEB9 to the most feature-rich and power hungry 5SGSD6. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of Stratix V FPGA solutions.


POWER TREE MAPPING – STRATIX V

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCC
(VCC, VCCHIP, VCCHSSI)
1C8601-Ph DrMOS CtrlPVIN120.8520ARD_A_STRV
2VCCPD
(VCCPD, VCCPGM, VCCA_FPLL,
VCC_AUX, VCCA_GXB)
2C200Sync BuckPVIN121.52ARD_A_STRV
3VCCIO3C220Sync BuckPVIN121.83ARD_A_STRV
4VCCPT
(VCCPT, VCCH_GXB, VCCD_FPLL,
VCCT_GXB, VCCR_GXB)
4C200Sync BuckPVIN121.52ARD_A_STRV

ANDAPT SOLUTION

ARD_I_STRV AnDAPT Solution

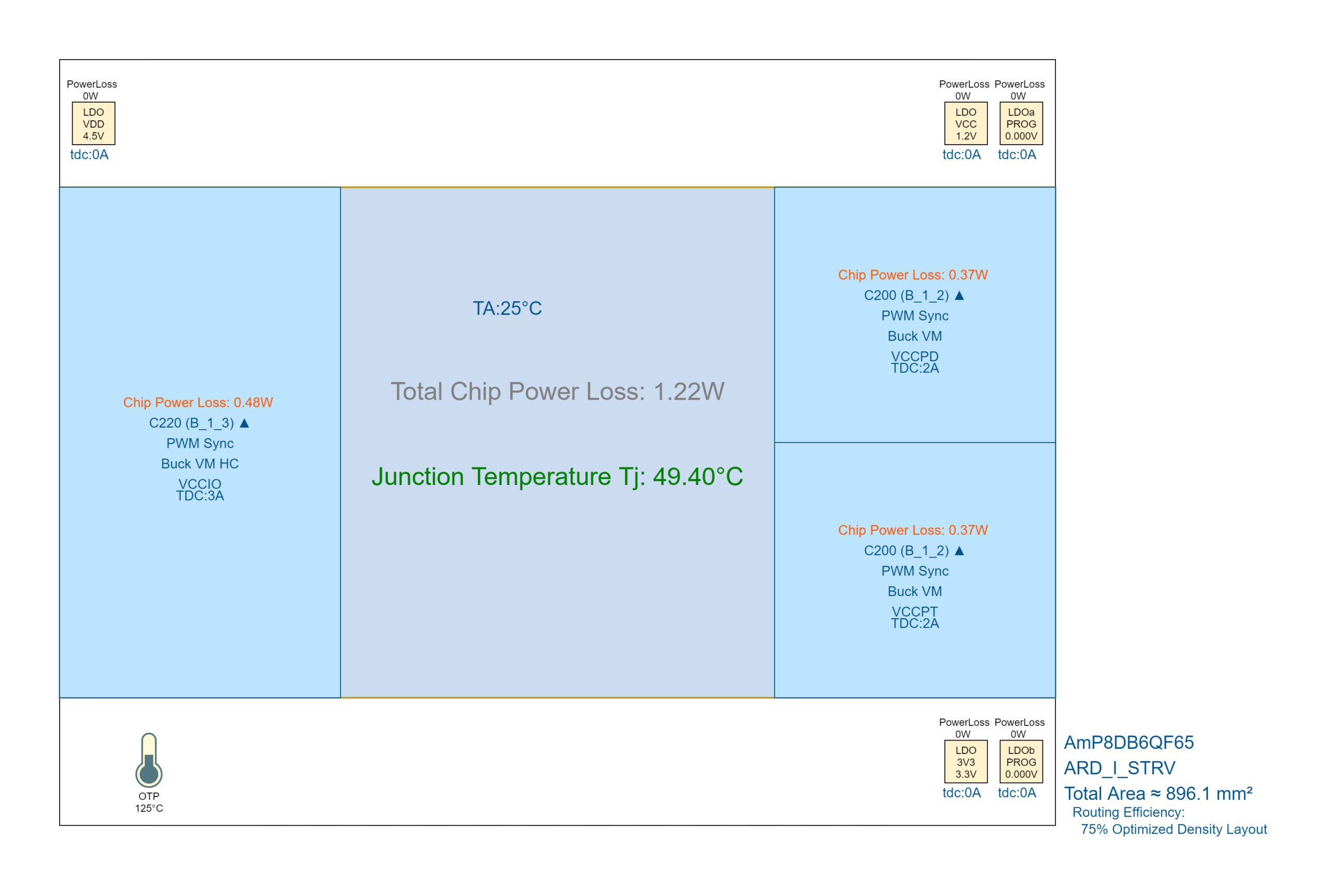

THERMAL VIEW IC1

ARD_I_STRV Thermal View IC1

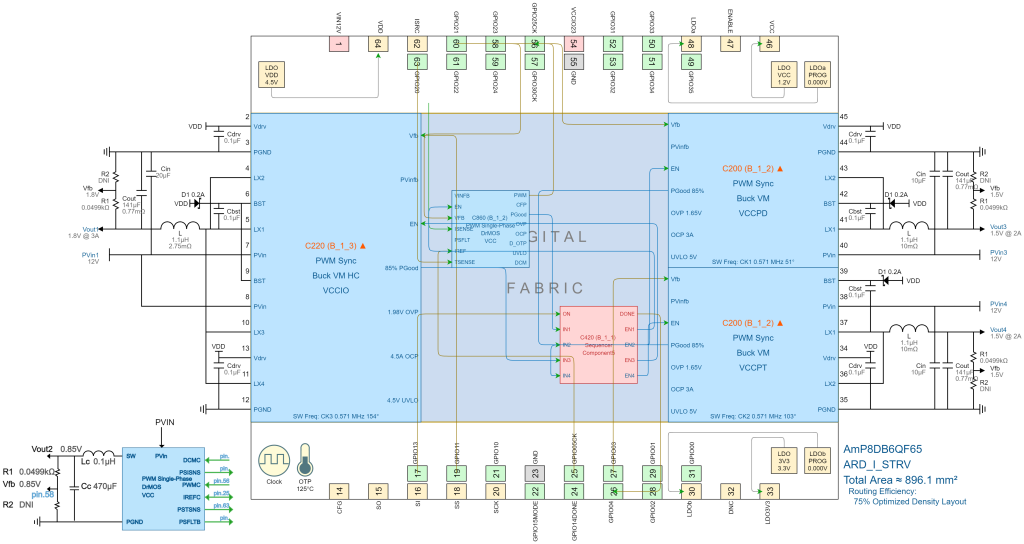

DESIGN VIEW IC1

ARD_I_STRV Design View IC1
