Polarfire Ease-of-Use
POWER TREE MAPPING +5V VIN
| # | Rail | Seq | Power Component | Type | Input Voltage, PVIN (V) | Input Rail | Output Voltage (V) | Current (A) |
| 1 | VDD | 1 | C200 | Sync Buck | 5 | PVIN = 5 V | 1 | 6 |
| 2 | VDDA | 3 | C200 | Sync Buck | 5 | PVIN | 1.05 | 2 |
| 3 | VDD25 (VDD25, VDDA25, VDD_XCVR_CLK) | 2 | C200 | Sync Buck | 5 | PVIN | 2.5 | 2 |
| 4 | VDDAUXX | 4 | C150 | Async Buck | 5 | PVIN | 3.3 | 4 + 0.2 |
| 5 | HSIO_GPIO (VDDIX_GPIO, VDDIX_HSIO, VDD18) | 5 | C710 | SIM LDO | 3.3 | VDDAUXX | 1.8 | 0.2 |

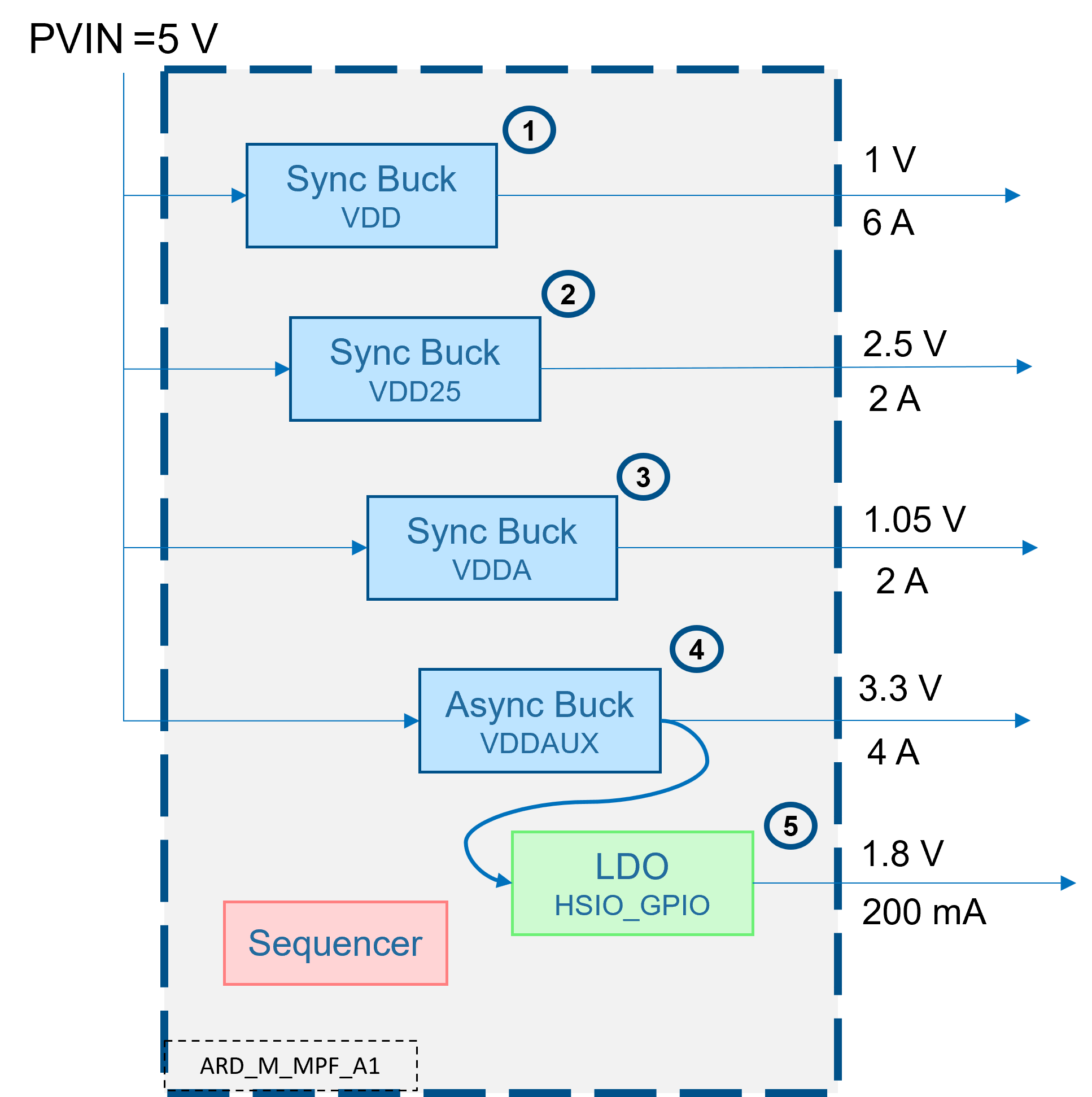

ANDAPT SOLUTION

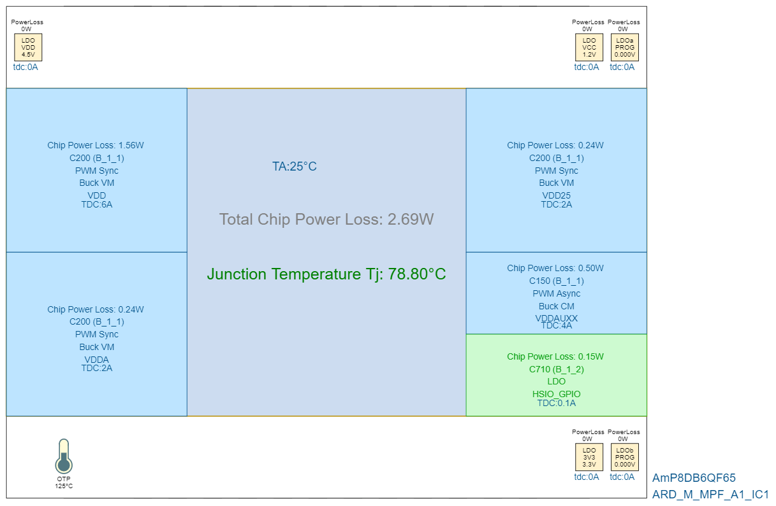

THERMAL VIEW IC1 +5V VIN
DESIGN VIEW IC1 +5V VIN
TEST DATA – RAIL 3: EFFICIENCY
