High Power

ARD_X_AX7_B1

Artix-7
(High Power)

The ARD_X_AX7_B1 is a scalable power supply designed to provide power to Xilinx Artix-7 High-Power FPGA devices. The design is scalable to support the cost-sensitive transceiver optimized devices including XC7A100T and XC7A200T.

WebAmP R.D. Tool

Download Test Data

HIGH POWER

POWER TREE MAPPING – HIGH POWER

#	Rail	Seq	Power Component	Type	Upstream Rail	Vinput (V)	Vout (V)	Iout (A)	AnDAPT PMIC
1	VCCINT, VCCBRAM, MGTAVCC	1	C220	Sync Buck HC	V_IN	12	0.95 / 1	8.7	ARD_X_AX7_B1_IC1
2	VCC_DDR	4	C710	SIM LDO	VCCAUX	1.8	1.35 to 1.5	<2	ARD_X_AX7_B1_IC1
3	VMGTAVTT	4	C200	Sync Buck	V_IN	12	1.2	≤1	ARD_X_AX7_B1_IC1
4	VCCAUX, VCCADC	2	C150	Async Buck	V_IN	12	1.8	<(0.35 + 2)	ARD_X_AX7_B1_IC1
5	VCC_IO	4	CLDO	Corner LDO	V_IN	12	1.8 or 3.3	<0.2	ARD_X_AX7_B1_IC1
6	VCCO [0.1…]	3	CLDO	Corner LDO	V_IN	12	1.2 or 3.3	≤0.05	ARD_X_AX7_B1_IC1

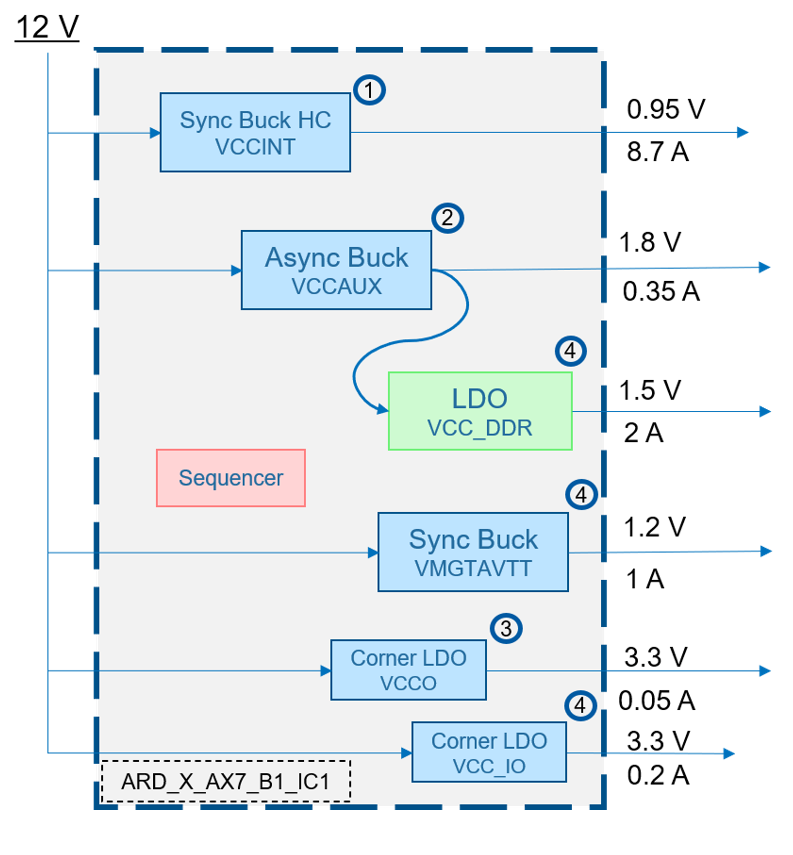

ANDAPT SOLUTION – HIGH POWER

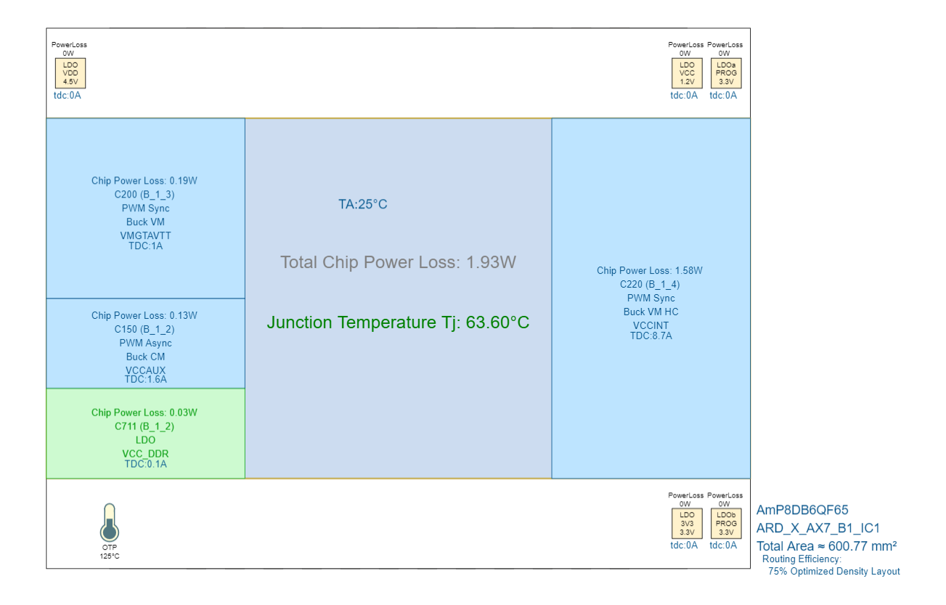

THERMAL VIEW IC1

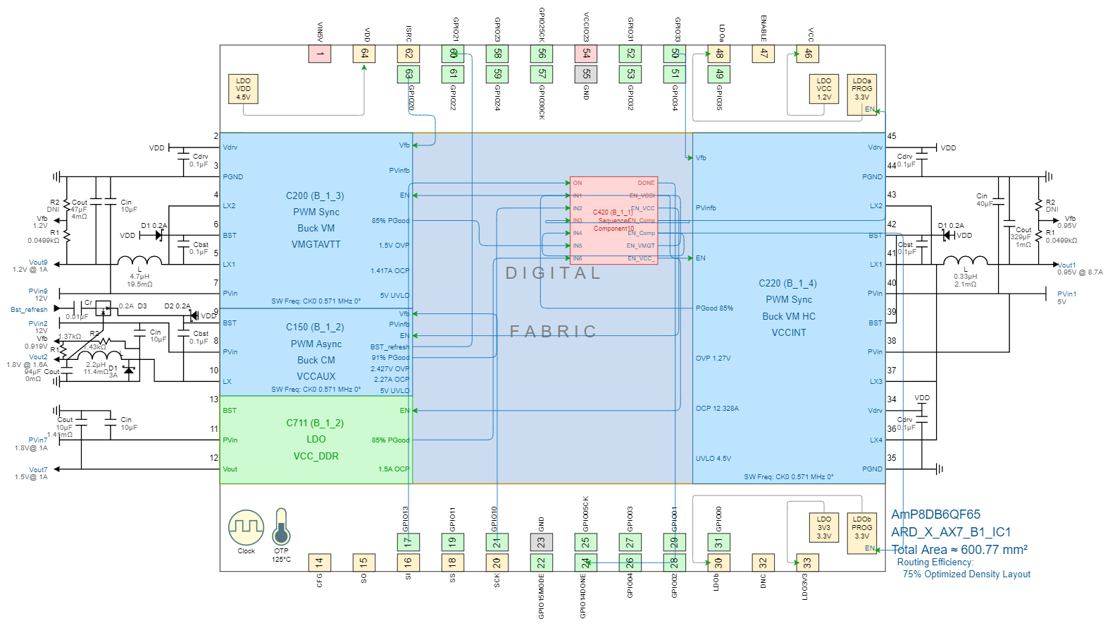

DESIGN VIEW IC1

Download Design
