ARD_X_KX7_C2

Kintex-7 with MGT

The ARD_X_KX7_C2 is a scalable power supply designed to provide power to Xilinx Kintex-7 FPGAs with MGT (Multi-Gigabit Transceiver) rails. The design is scalable and flexible to support the FPGA family SKUs from the most basic XC7K70T to the most feature-rich and power hungry XC7K480T. The programmable system integration, upward scalability, high performance/watt numbers and reduced time-to-market features of the AnDAPT’s AmP PMIC makes it an ideal match for handling power management responsibilities of Kintex-7 FPGA solutions.

Goto WebAmP R.D. Tool

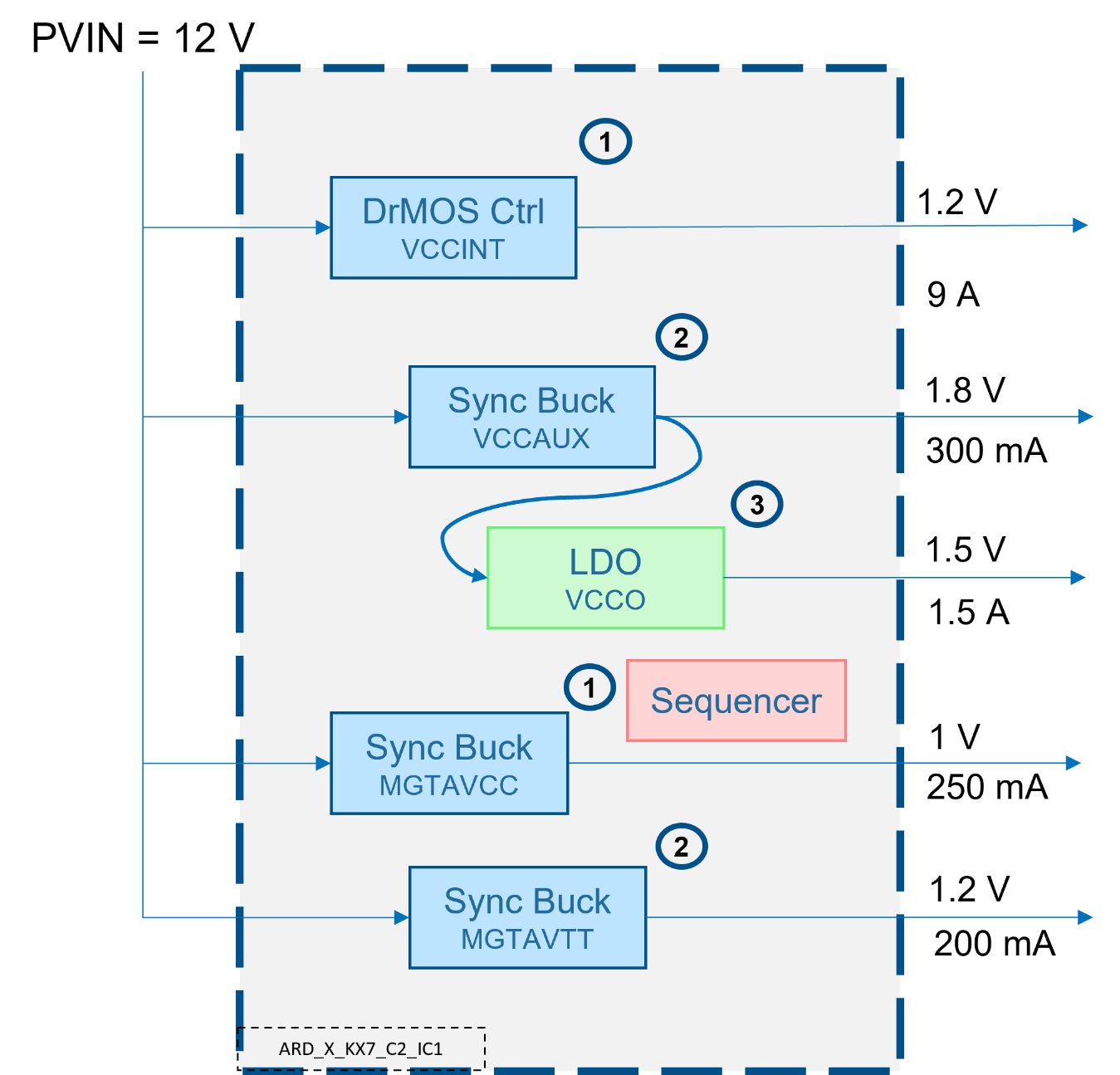

ANDAPT SOLUTION (1XPMIC)

Power Tree Mapping - with MGT

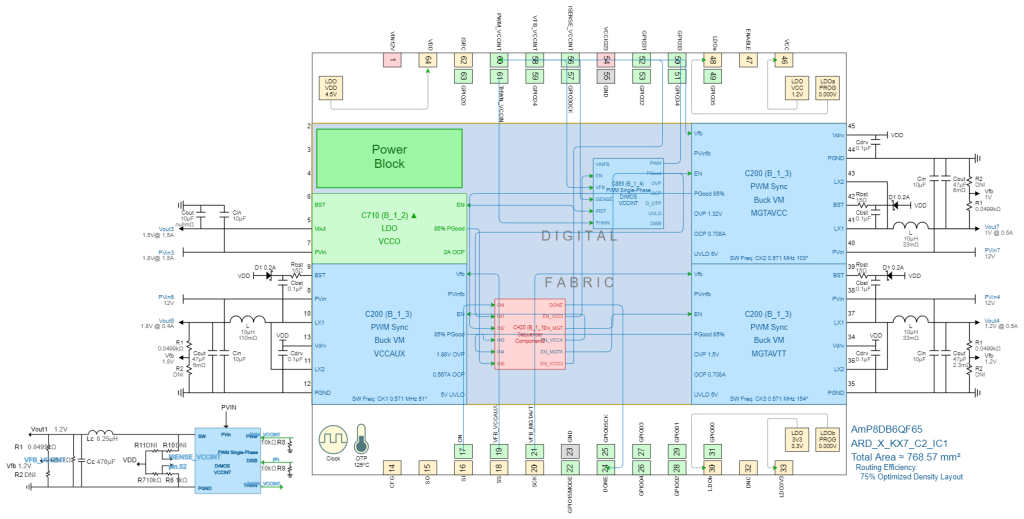

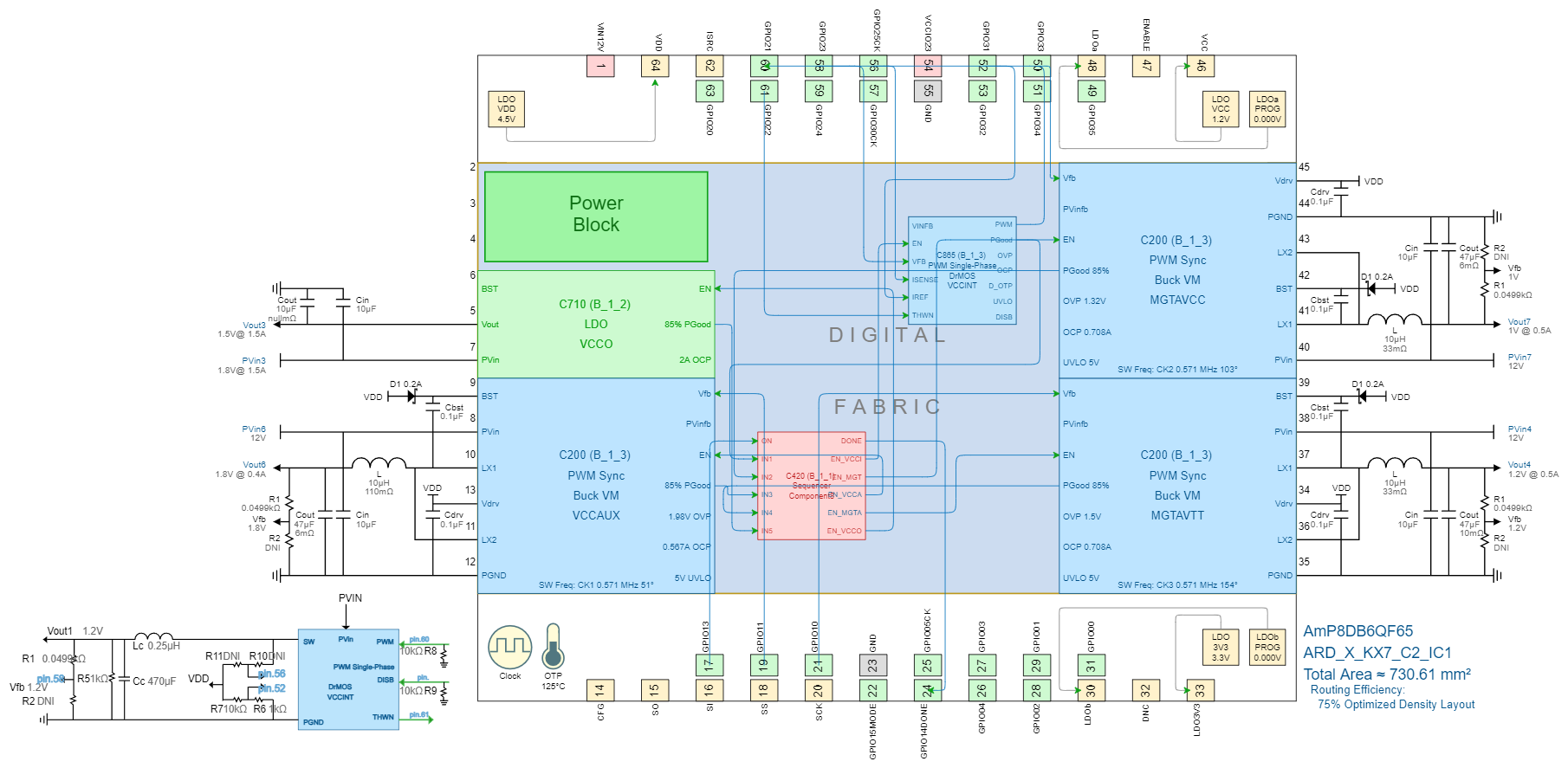

DESIGN VIEW IC1 with MGT

Test Data Mid Range Rail 1

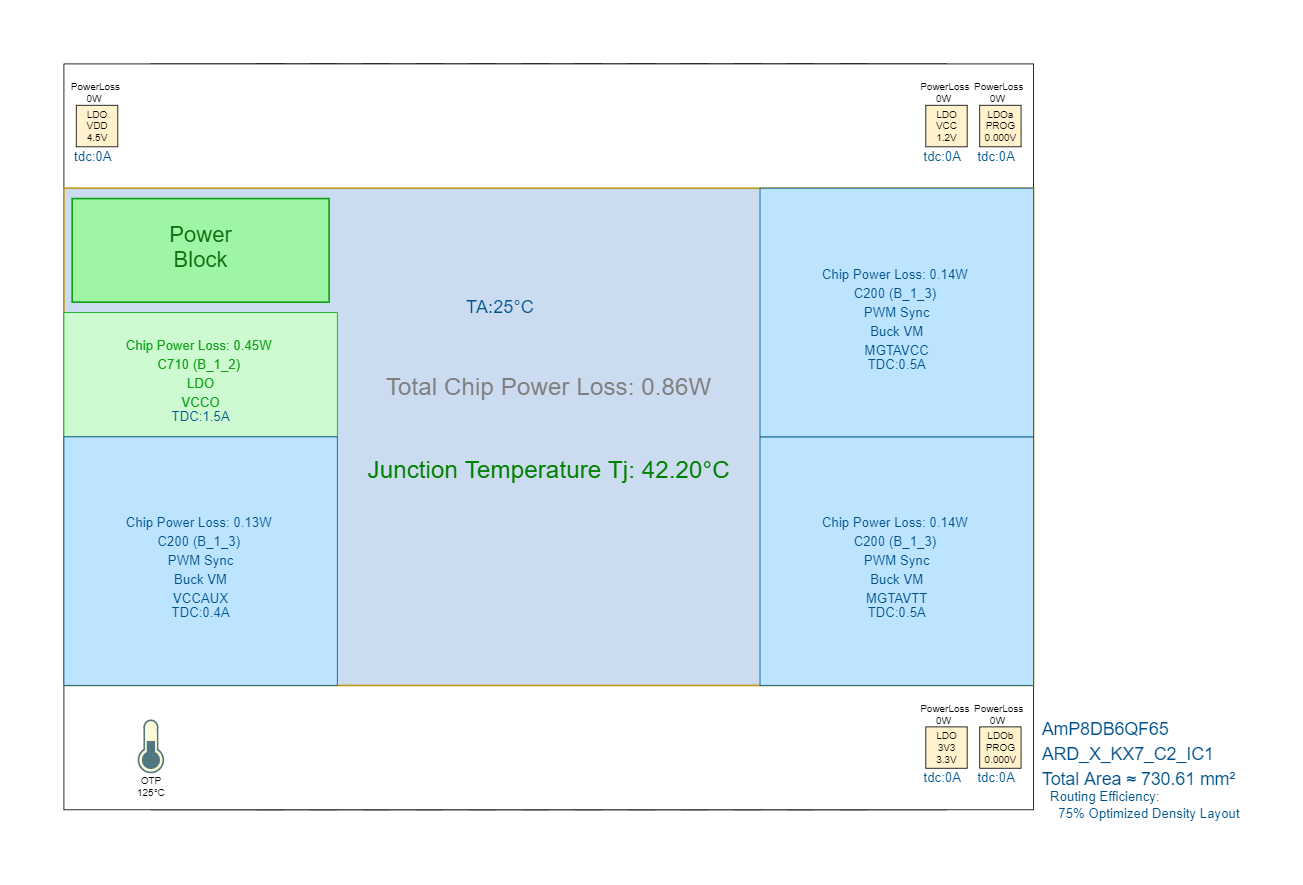

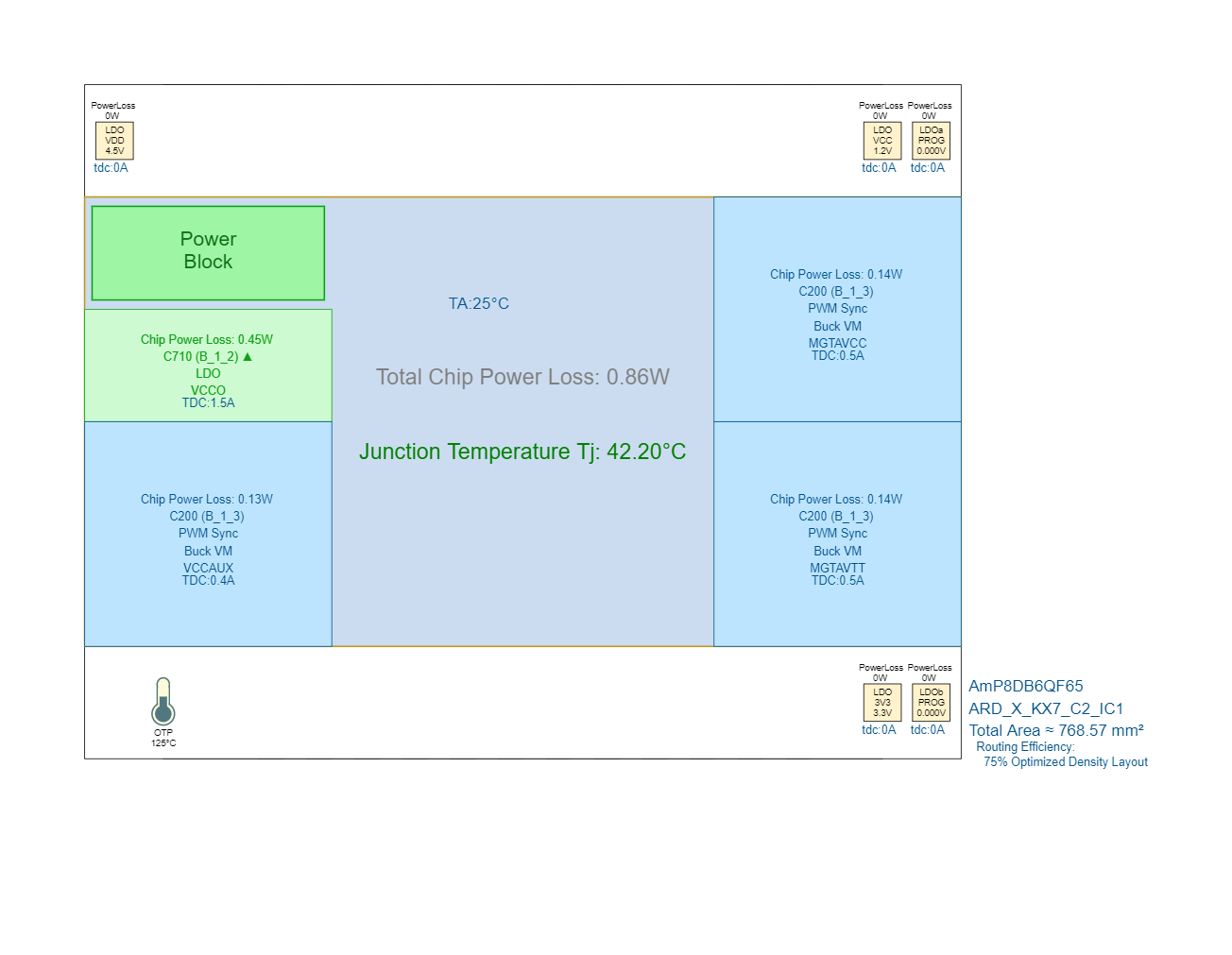

Thermal View IC1 with MGT

for more test data, click Downlod Bench Data below:

Download Design
Download Test Data
Goto WebAmP R.D.Tool
