ARD_X_ZUM_C1

Zynq UltraScale+ MPSoC

The ARD_X_ZUM_C1 is a scalable power supply designed to provide power to Xilinx Zynq UltraScale+ (ZU+) MPSoC Performance optimized FPGAs.

The design is scalable to support the most basic ZU2CG device with a dual-core Arm Cortex-53 application processor and dual-core Arm Cortex-R5F real-time processor to ZU19EG products that have graphics processing capabilities (GPUs) to ZU5EV devices with quad-core Arm Cortex-A53 application processor and dual-core Arm Cortex-R5 real-time processor with video processing abilities.

Goto WebAmP R.D. Tool

Always On, Performance Optimized

Image courtesy Xilinx:
https://www.xilinx.com/support/documentation/user_guides/ug583-ultrascale-pcb-design.pdf

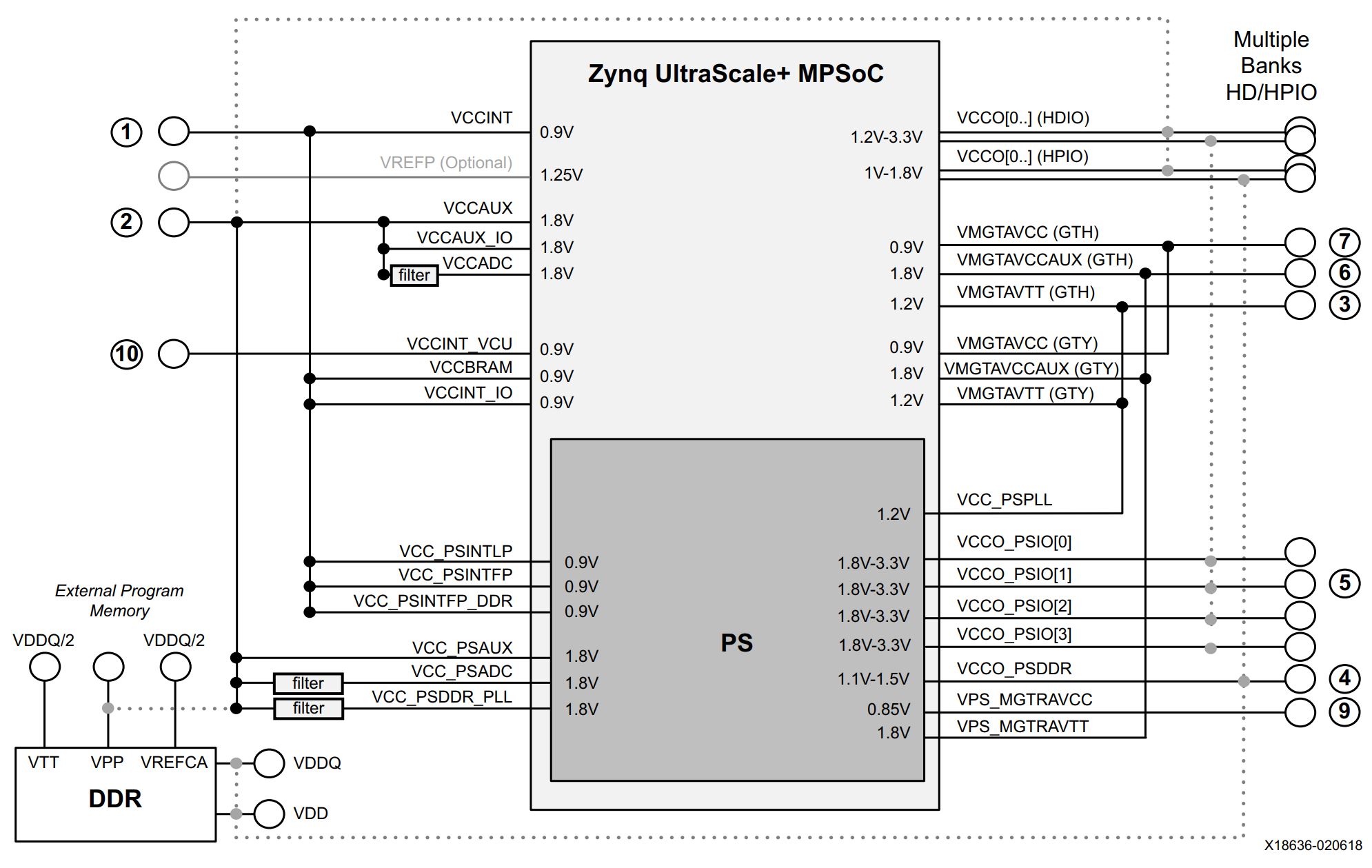

Power Tree Mapping - PERFORMANCE OPTIMIZED

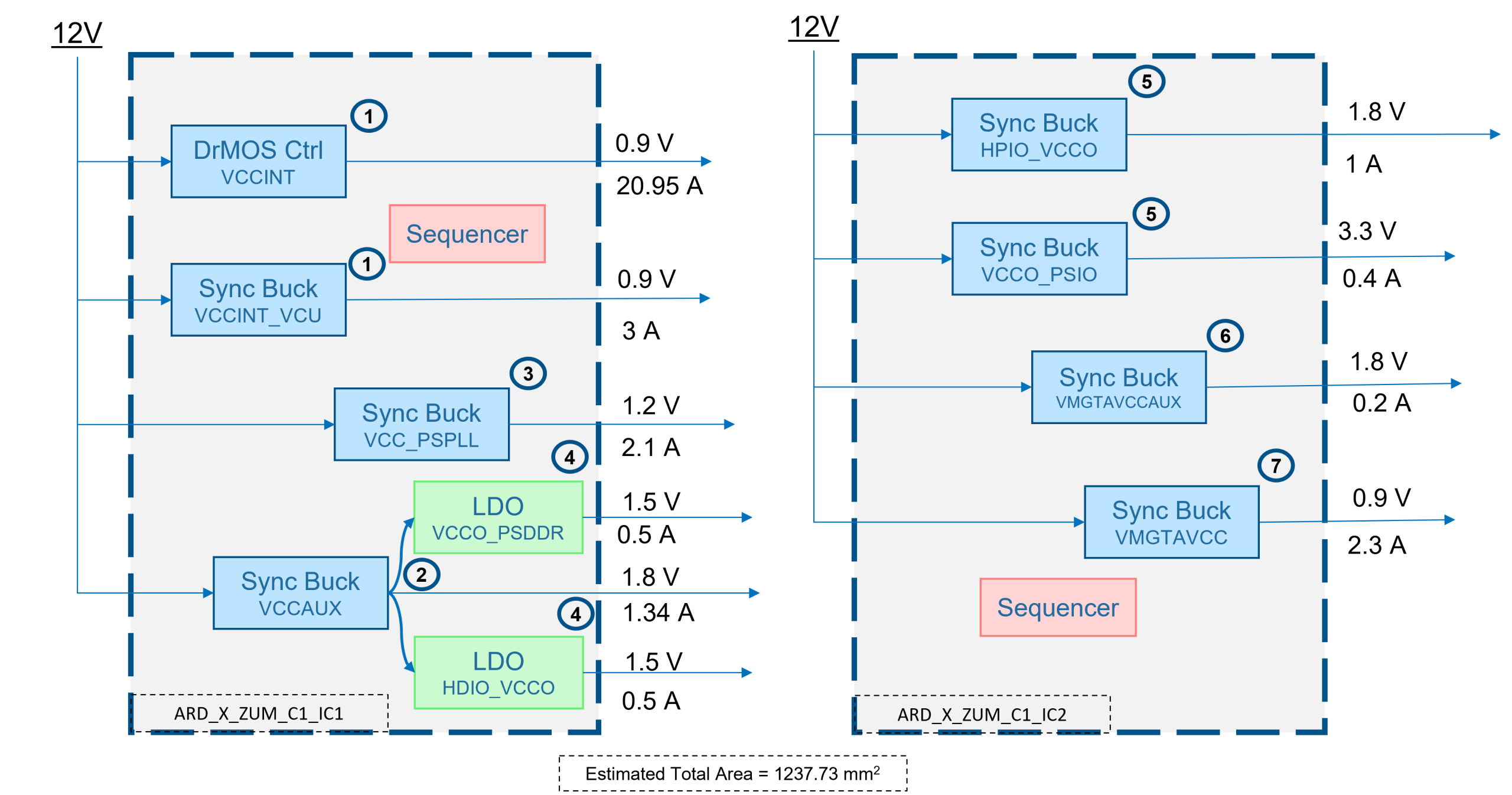

AnDAPT Solution - PERFORMANCE OPTIMIZED

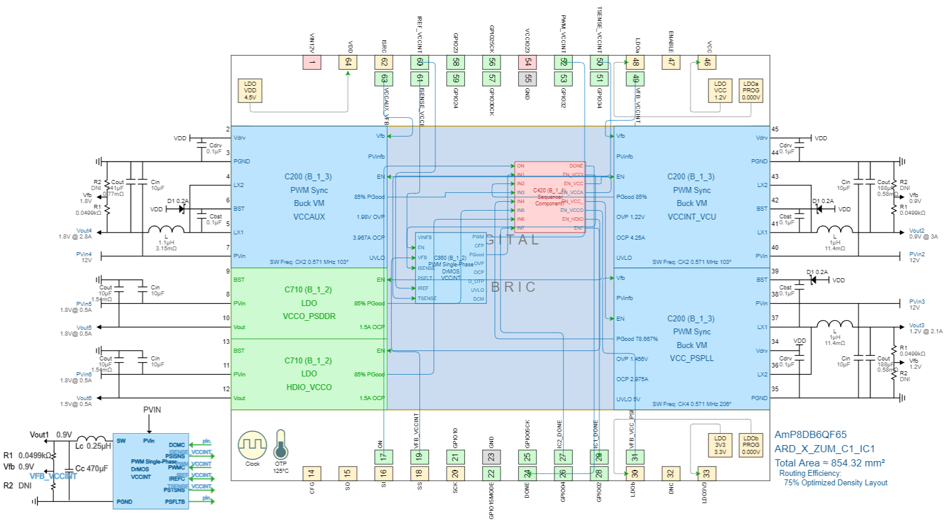

Design View IC1 Performance Optimised

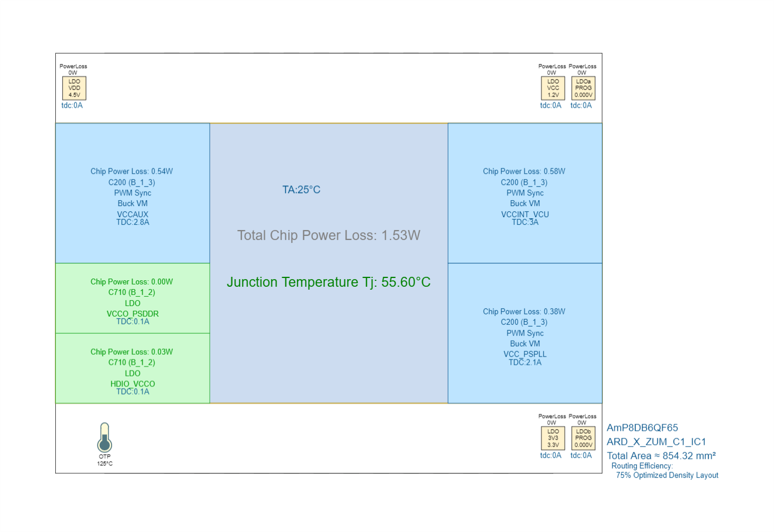

Thermal View IC1 Performance Optimised

Test Data Performance-Optimized Rail 1

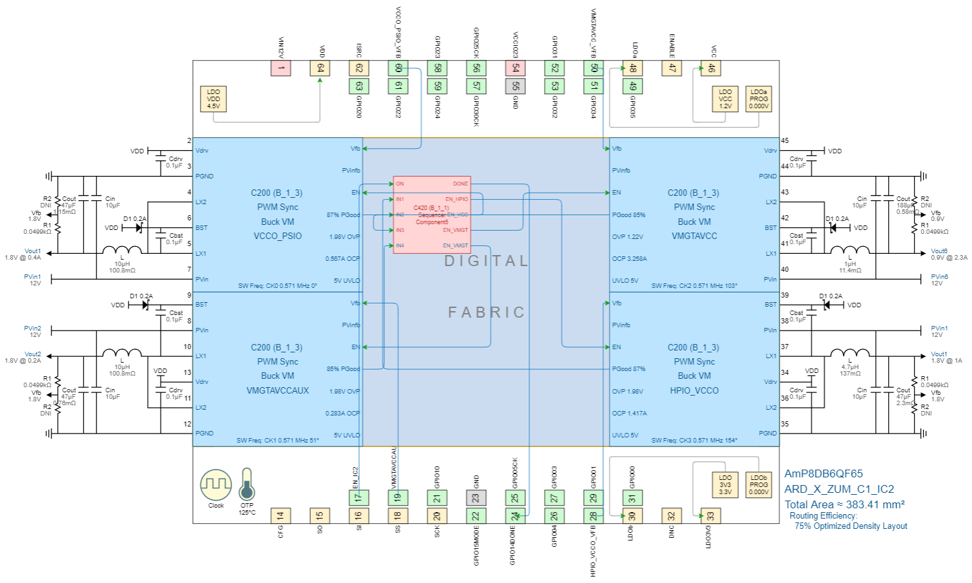

Design View IC2 Performance Optimised

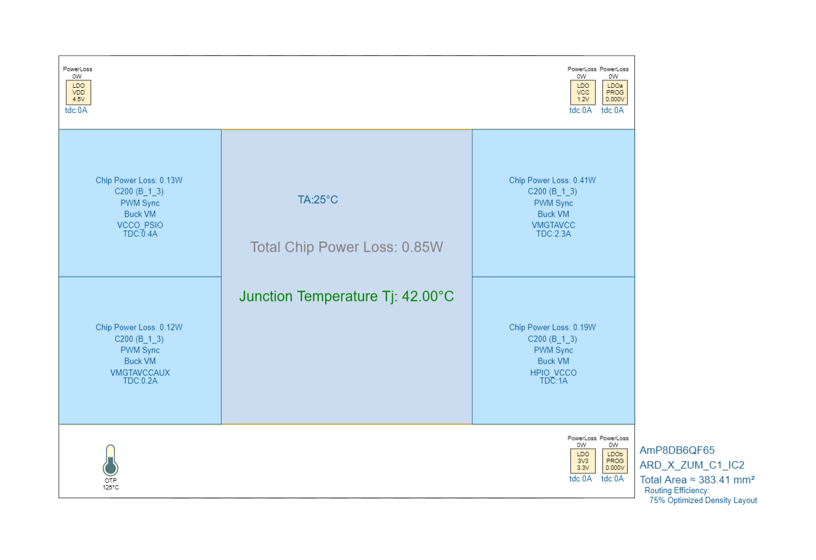

Thermal View IC2 Performance Optimised

for more test data, click Downlod Test Data below:

Download Design
Download Test Data
Goto WebAmP R.D. Tool

Xilinx evaluation board

The AmP8XEB1 evaluation board showcases architectural flexibility, high efficiency, and cost effectiveness of the AmP8DB6QF65 PMIC in powering Xilinx Zynq UltraScale+ (ZU+) MPSoC performance-optimized FPGAs.

The design is scalable to support SKUs from the most basic ZU2CG device to ZU19EG products with GPUs to ZU5EV devices with video processing abilities, serving up to 26 power supply rails using 2 PMICs.

The AmP8XEB1 board allows the user to make changes to evolving needs of analog and digital applications in minutes using AnDAPT’s WebAmP tool while meeting critical design requirements.

AmP8XEB1
