Gen 1 Full Power

ARD_X_ZUR_B1

Zynq UltraScale+ RFSoC
Gen1 (Full Power)

The ARD_X_ZUR_B1 is a scalable power supply designed to provide power to all rails of Xilinx Zynq UltraScale+ (ZU+) RFSoC Gen1 devices. The design is scalable to support the most basic ZU39DR device in Gen1 family with RF data converters integrated on a hardware programmable SoC using a quad-core Arm Cortex-A53 MPCore application processor and dual-core Arm Cortex-R5 MPCore real-time processor to ZU49DR device in the Gen3 family.

WebAmP R.D. Tool

POWER TREE MAPPING – FULL POWER DOMAIN

#	Rail	Seq	Power Component	Type	Upstream Rail	Vinput (V)	Vout (V)	Iout (A)	AnDAPT PMIC
1	VCCINT	1	C870	DrMOS Ctrl 2-ph	V_IN	12	0.72 / 0.85	45	ARD_X_ZUR_B1_IC1
2	VCCBRAM, INT_IO, INT_AMS, SDFEX	2	C860	DrMOS Ctrl 2-ph	V_IN	12	0.85	28	ARD_X_ZUR_B1_IC1
3	VMGTAVTT, VCC_PSPLL, VCCU_PLL	2	C200	Sync Buck	V_IN	12	1.2	4	ARD_X_ZUR_B1_IC1
4	MGTAVCC	2	C200	Sync Buck	V_IN	12	0.9	2	ARD_X_ZUR_B1_IC1
5	VPS_MGTRAVCC	3	C710	SIM LDO	MGTAVCC	0.9	0.85	0.3	ARD_X_ZUR_B1_IC1
6	VCCO_PSDDR, DDR_VDDQ	6	C200	Sync Buck	V_IN	12	1.1 – 1.5	6	ARD_X_ZUR_B1_IC2
7	VCCAUX, ADC, IO, VCCPSAUX, DDR_PLL, ADC	5	C200	Sync Buck	V_IN	12	1.8	2 – 3	ARD_X_ZUR_B1_IC2
8	VCCO	6	C200	Sync Buck	V_IN	12	3.3 / 5	4	ARD_X_ZUR_B1_IC2
9	VPS_MGTAVTT, VMGTVAUX	4	C200	Sync Buck	V_IN	12	1.8	0.5	ARD_X_ZUR_B1_IC2
10	ADC_AVCC	8	C200	Sync Buck	V_IN	12	0.925/0.98	3.2	ARD_X_ZUR_B1_IC3
11	DAC_AVCC	9	C200	Sync Buck	V_IN	12	0.925	6	ARD_X_ZUR_B1_IC3
12	ADC_AVCCAUX	7	C150	Async Buck	V_IN	12	1.8	1.5	ARD_X_ZUR_B1_IC3
13	DAC_AVCCAUX	11	C710	SIM LDO	DAC_AVTT	2.5	1.8	0.72	ARD_X_ZUR_B1_IC3
14	DAC_AVTT	10	C200	Sync Buck	V_IN	12	2.5 / 3.3	0.9	ARD_X_ZUR_B1_IC3

ARD_X_ZUR_B1_IC3 is optional for Gen 1, Gen 2 and Gen 3.

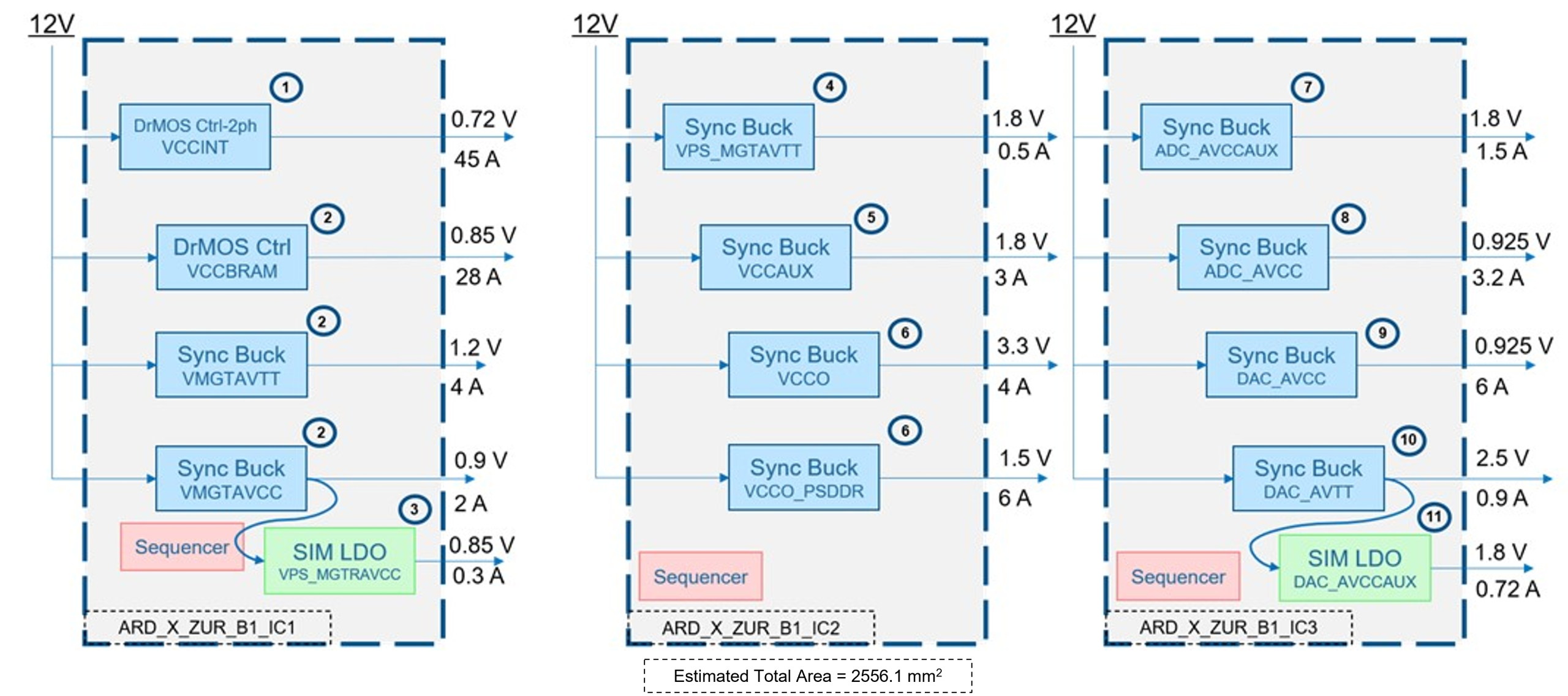

ANDAPT SOLUTION – FULL POWER DOMAIN

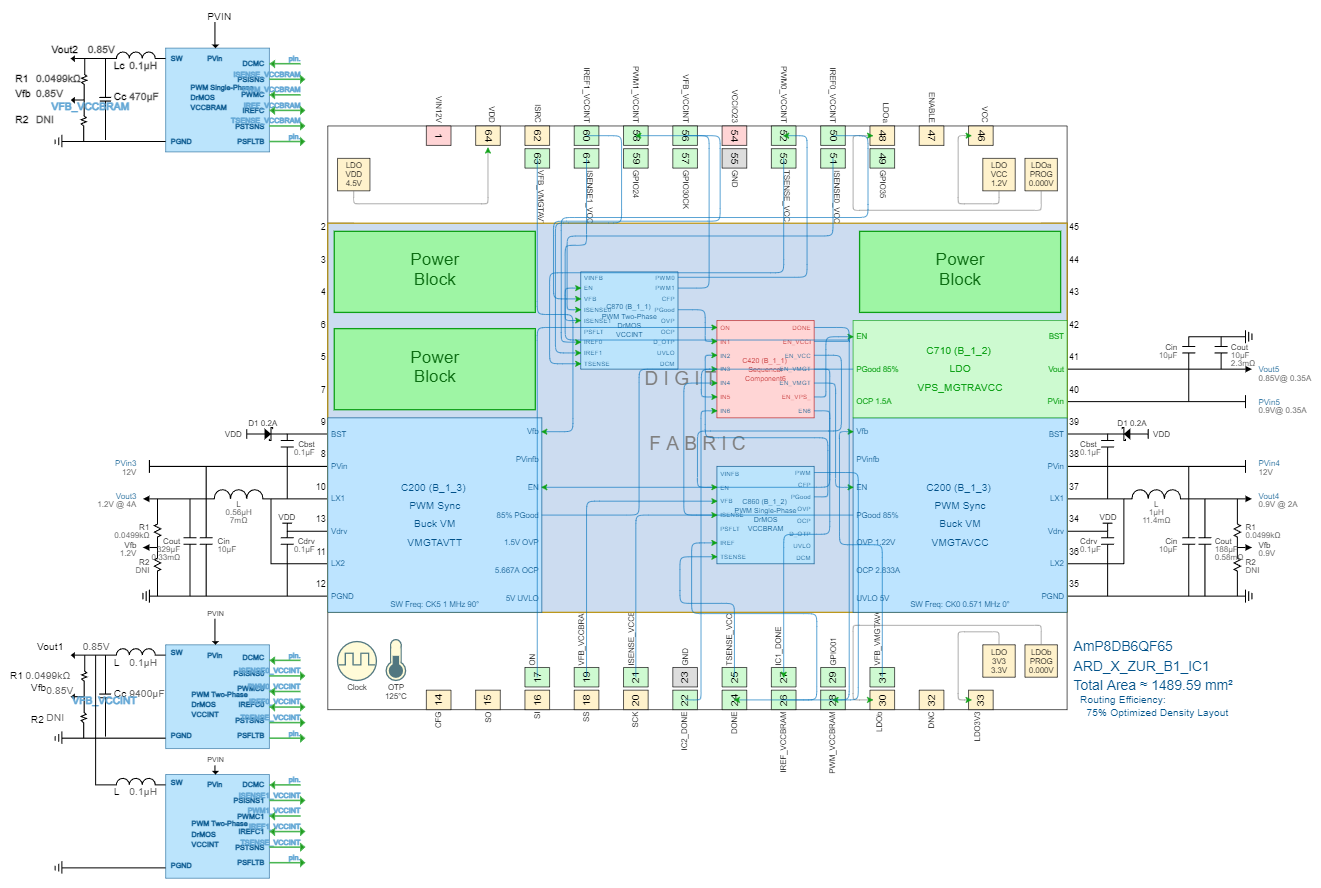

DESIGN VIEW IC1 – MANDATORY

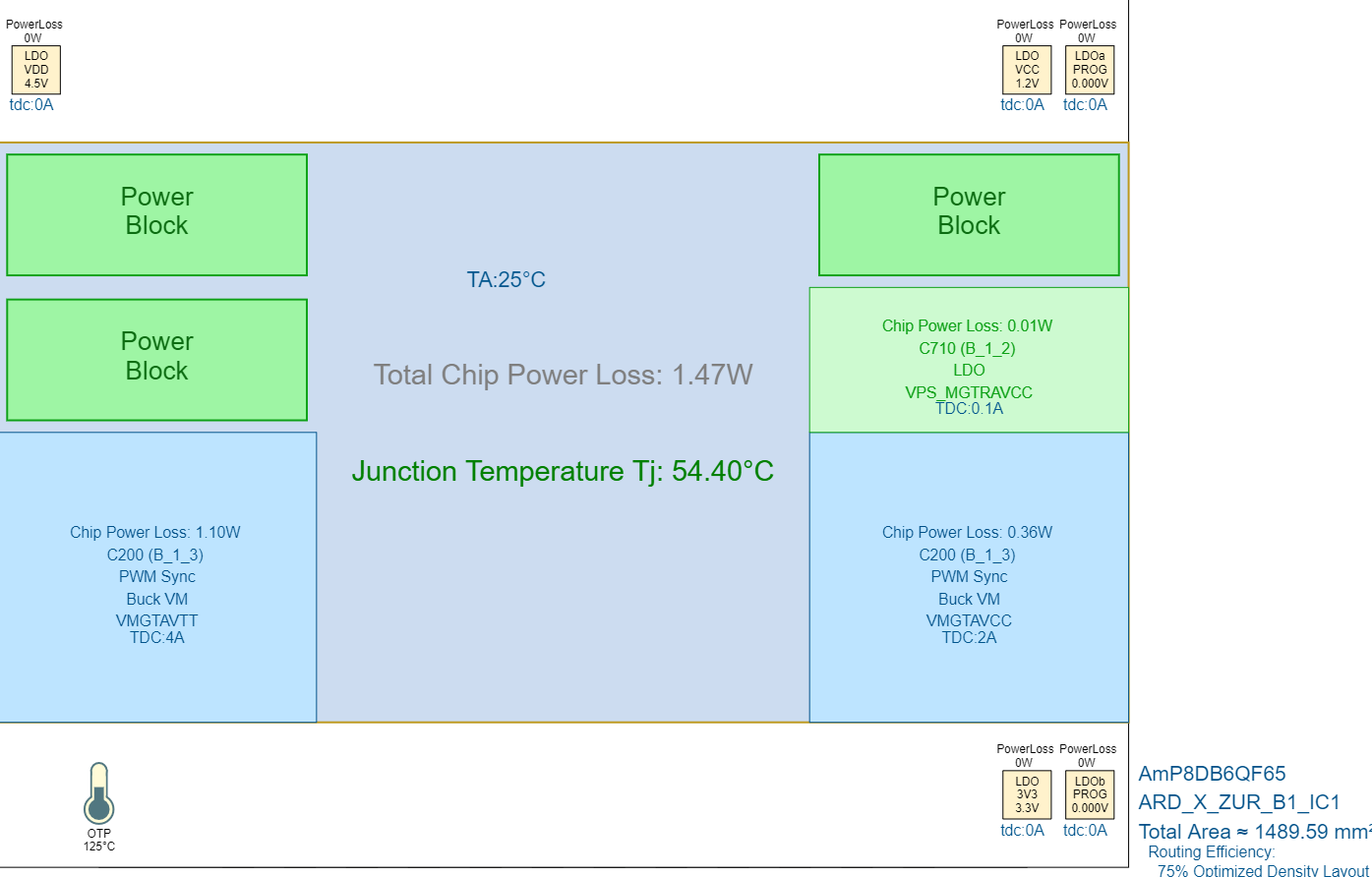

THERMAL VIEW IC1 – MANDATORY

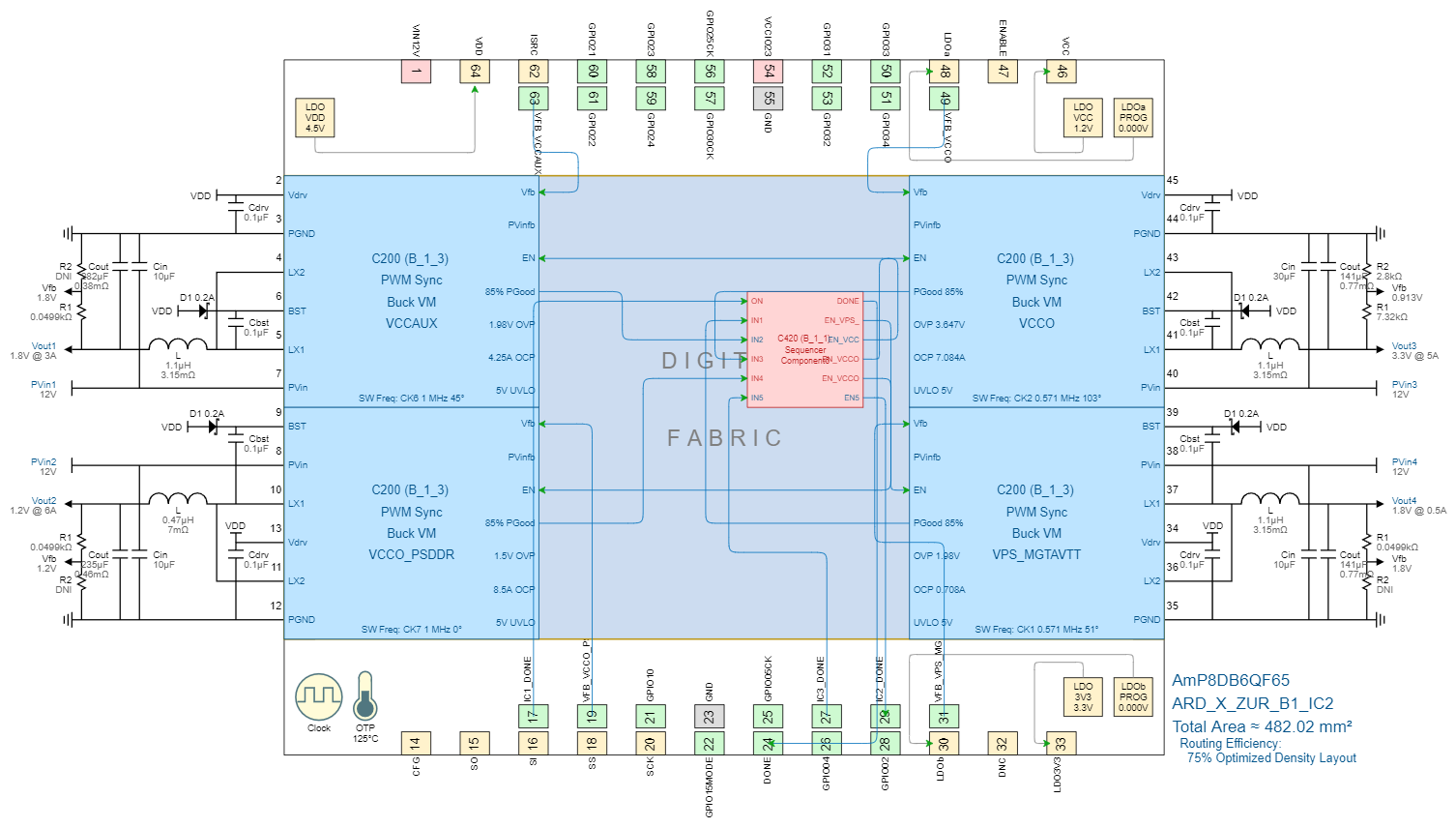

DESIGN VIEW IC2 – MANDATORY

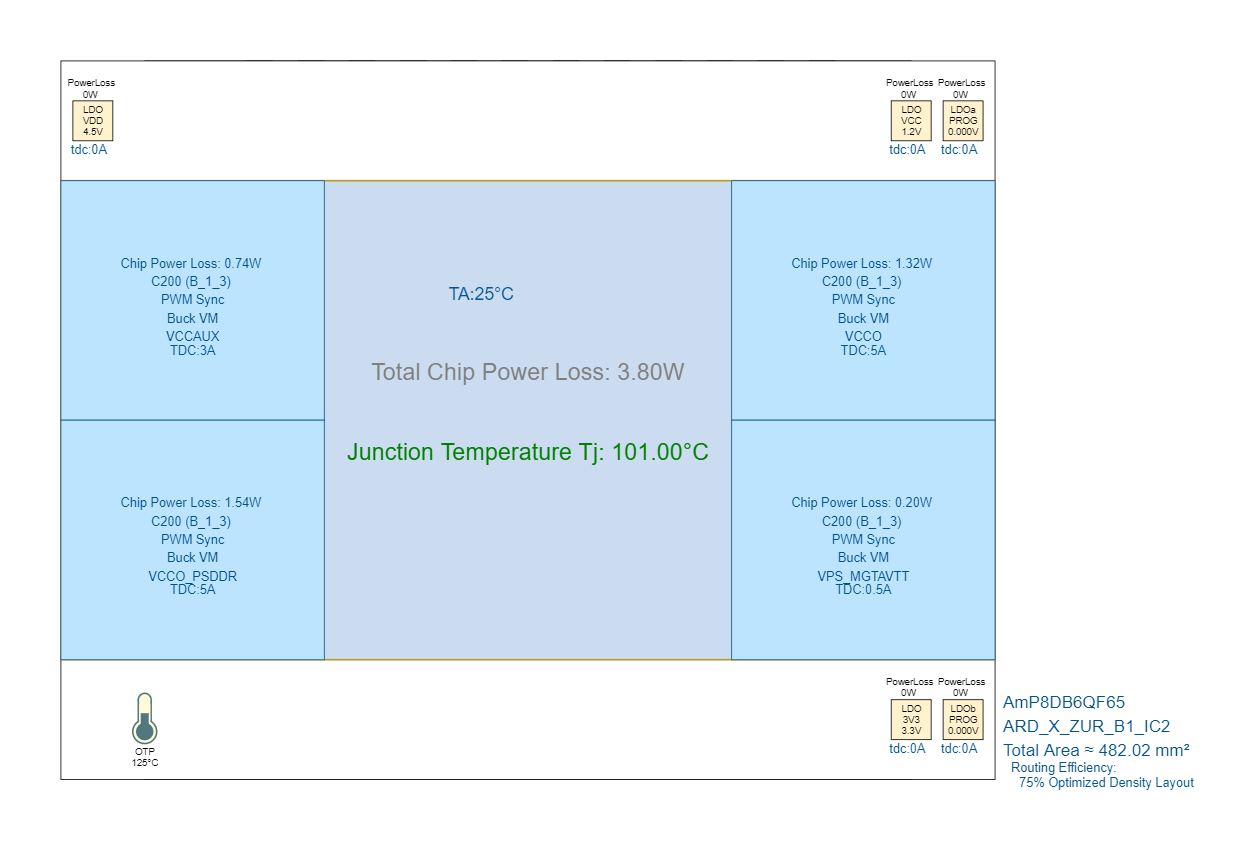

THERMAL VIEW IC2 – MANDATORY

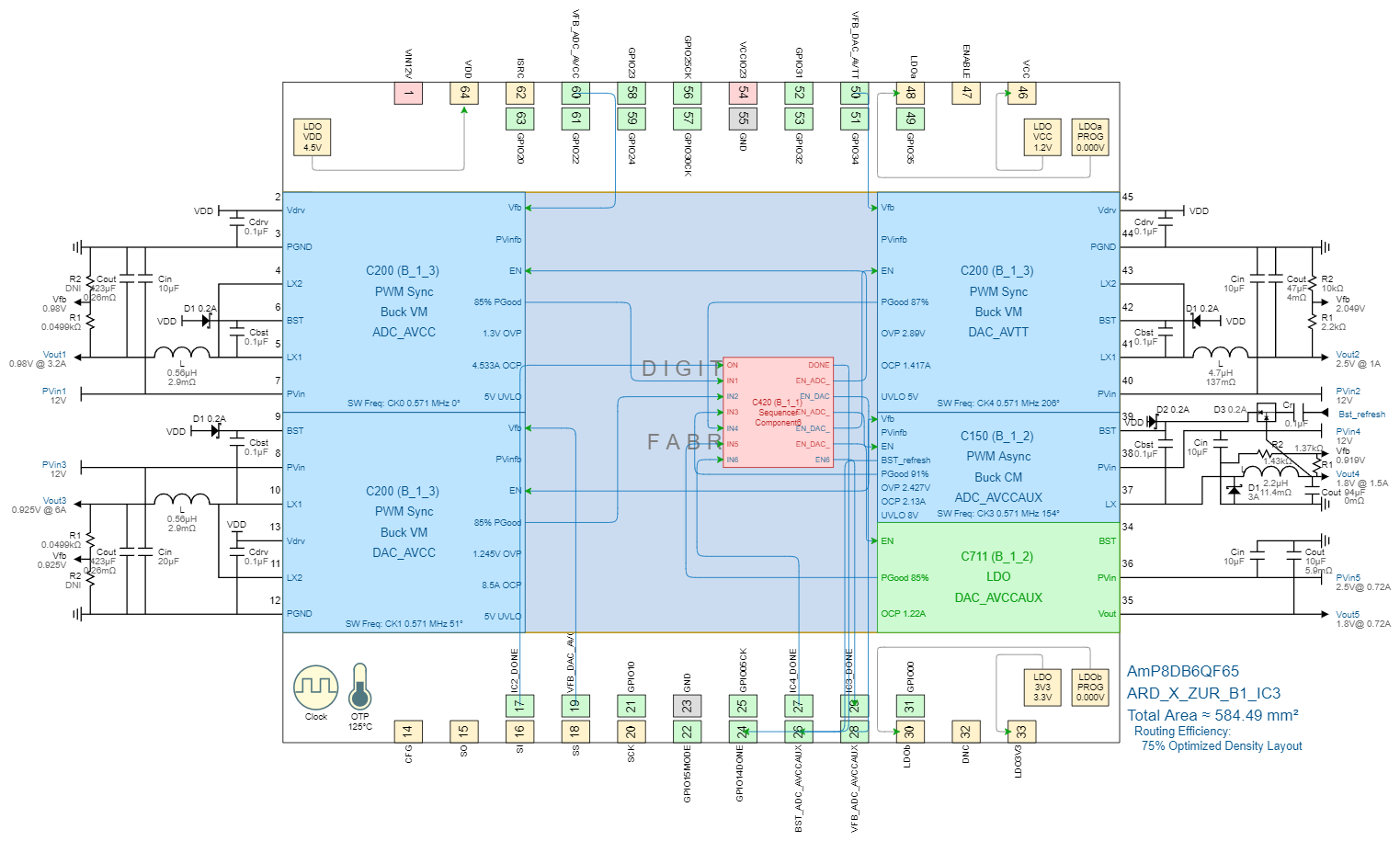

DESIGN VIEW IC3 – OPTIONAL

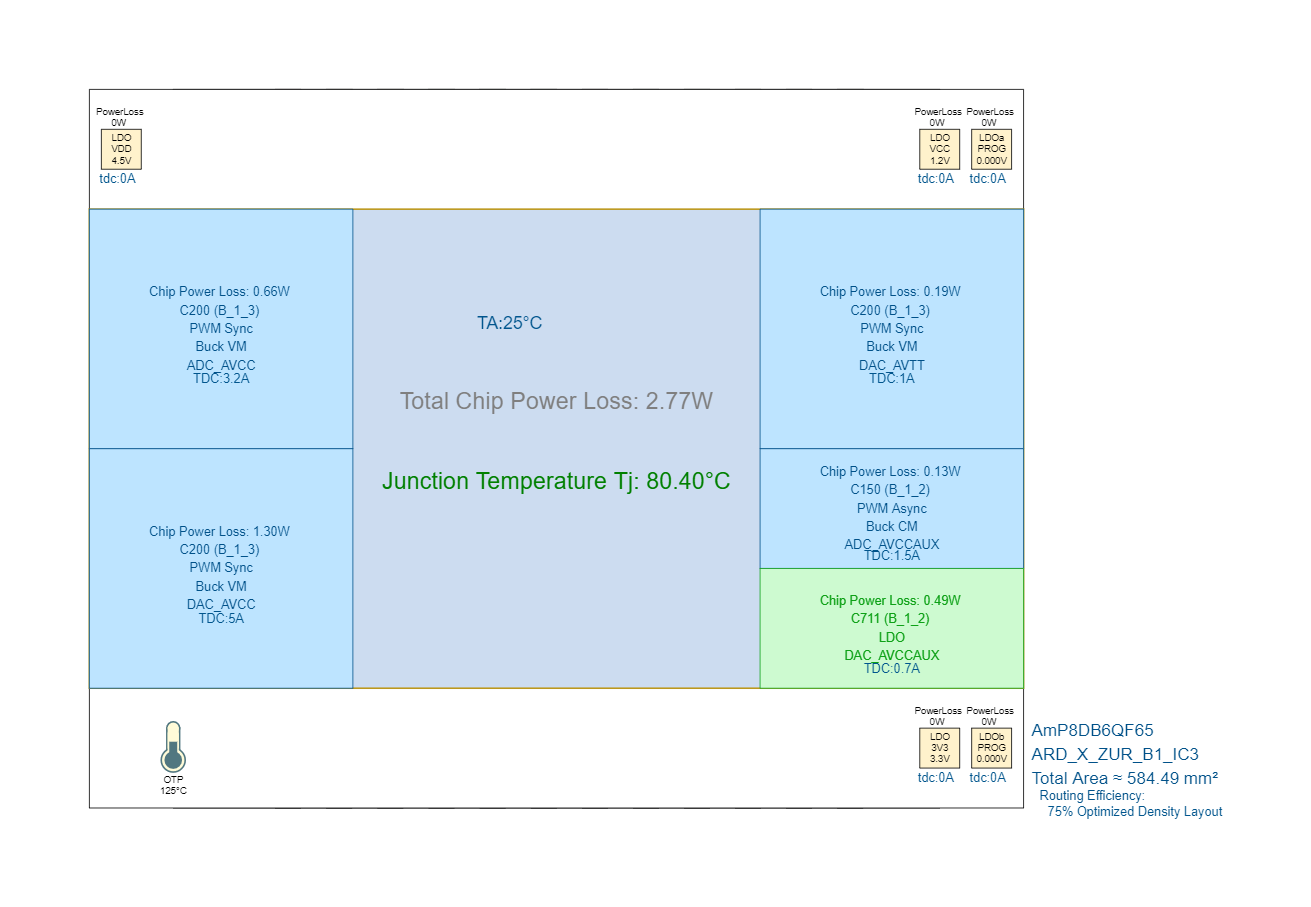

THERMAL VIEW IC3 – OPTIONAL
