Hardware Demo Boards

Check out AnDAPT’s latest demo boards to experience the AmP technology and test out different power components to power your SoCs.

  • AmP8XEB1
  • AmP8DB2
  • AmP8DB3
  • AnD8400EB
  • AnD8320EB
  • AnD8302EB
  • AnD8240EB
  • AnD8204EB
  • AnD7220EB

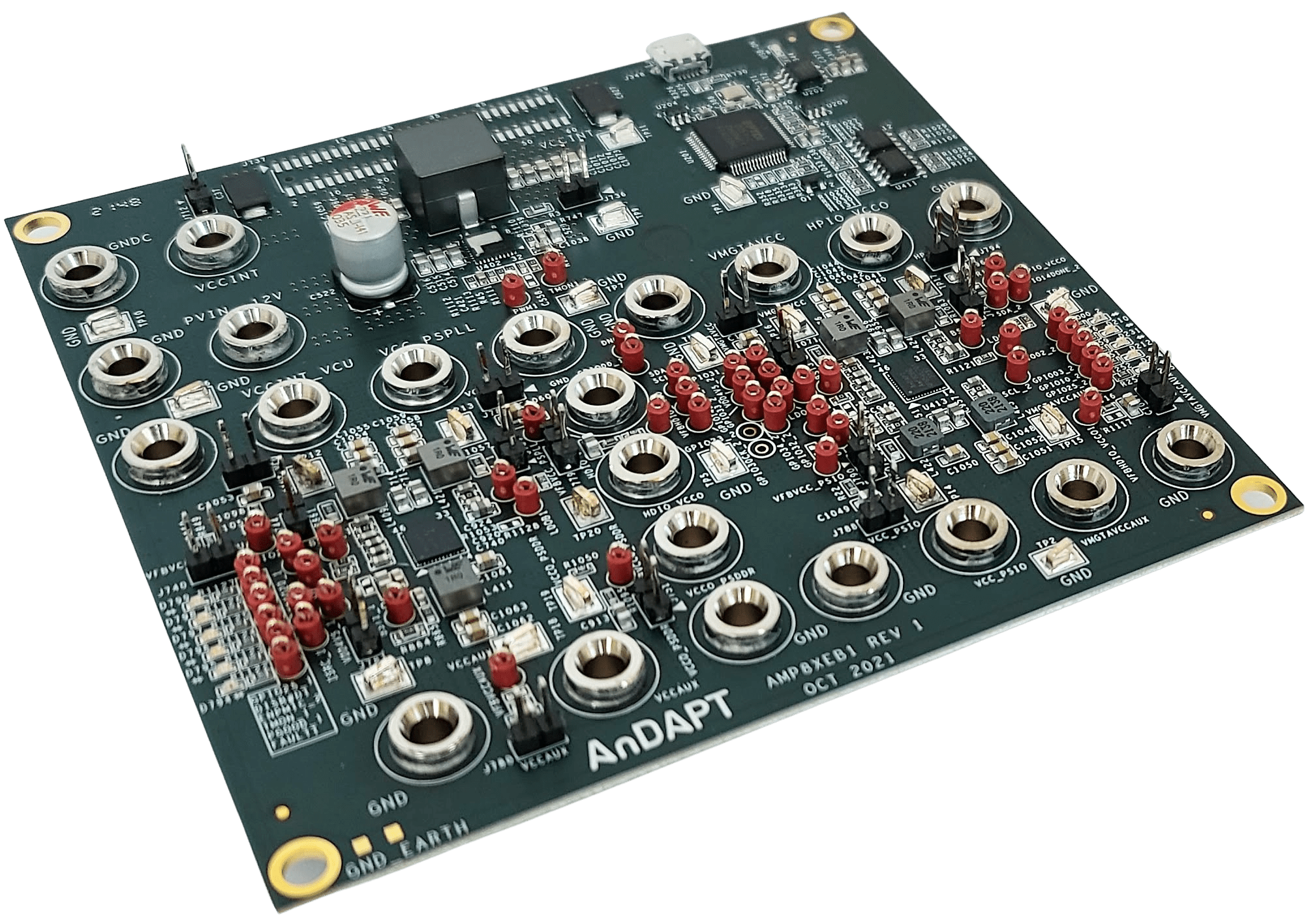

Xilinx Evaluation Board

The AmP8XEB1 evaluation board showcases the architectural flexibility, high efficiency, and cost-effectiveness of the AmP8DB6QF65 PMIC in powering Xilinx Zynq UltraScale+ (ZU+) MPSoC performance-optimized FPGAs.

The design is scalable to support SKUs from the most basic ZU2CG device to ZU19EG products with GPUs to ZU5EV devices with video processing abilities, serving up to 26 power supply rails using 2 PMICs.

The AmP8XEB1 board allows the user to make changes to evolving needs of analog and digital applications in minutes using AnDAPT’s WebAmP tool while meeting critical design requirements.

AmP8XEB1

AnDAPT AMP8XEB1 Evaluation Board

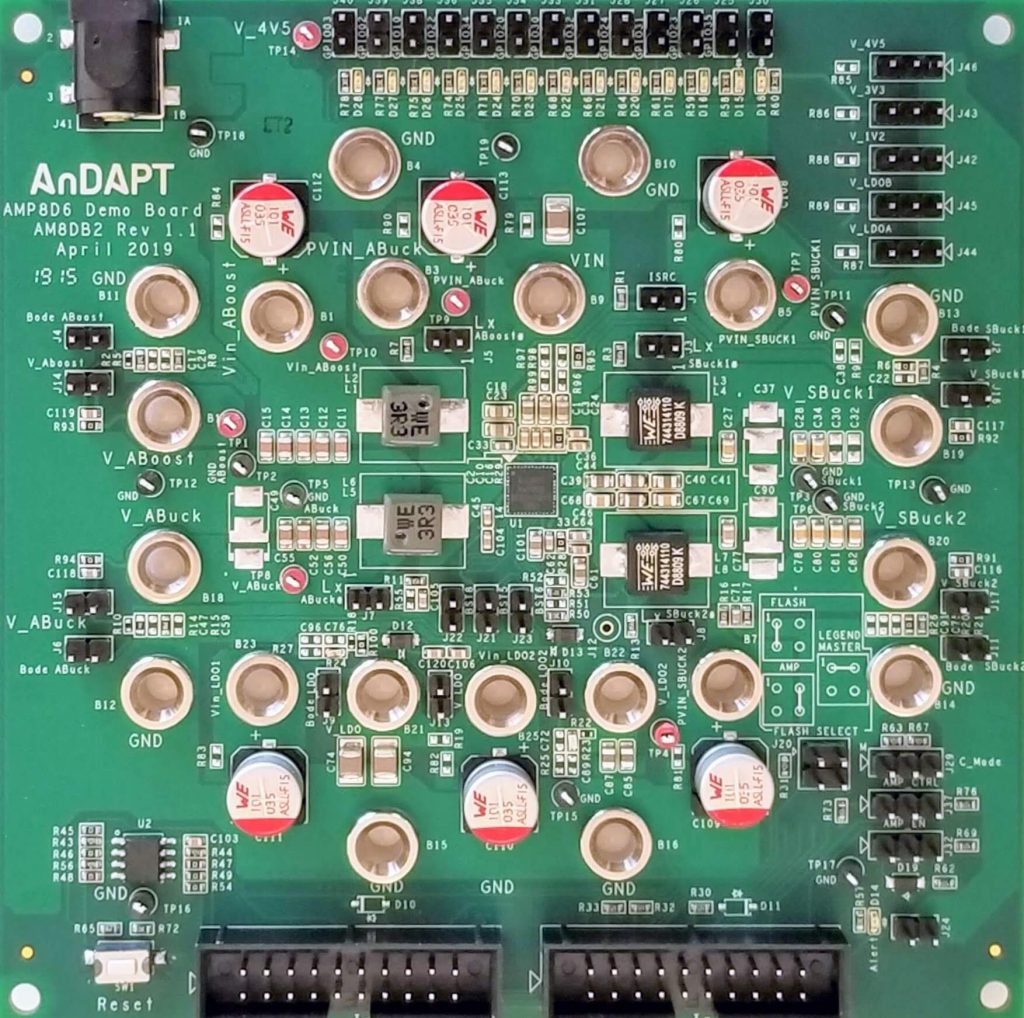

AmP8DB2

Demonstrates Sync Buck, Async Buck, LDO, Load Switch,
and Supervisory functions.

AmP8DB2

Demonstrates Sync Buck, Async Buck, LDO, Load Switch, and Supervisory functions.

AnDAPT AmP8DB2 Evaluation Board

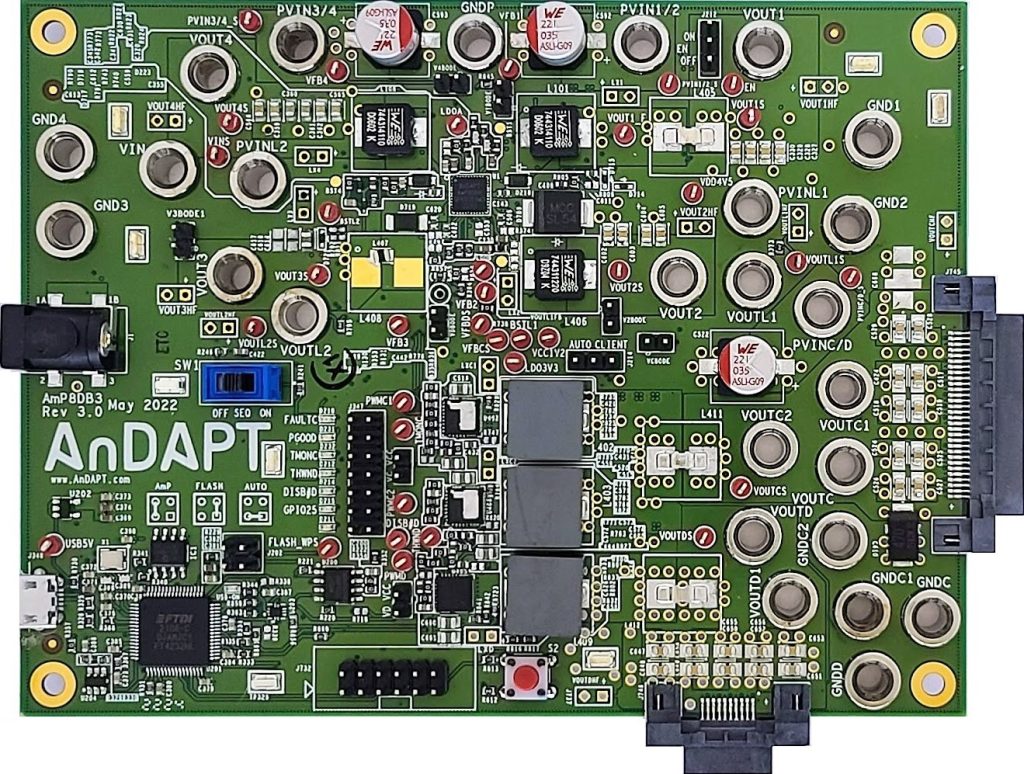

AmP8DB3

  • Covers the main features of the AmP8DB6QF6.
  • Demonstrates Sync Buck, Async Buck, 1ph DrMOS Buck, 2-ph DrMOS Buck, LDOs, Load Switches, and Supervisor functions.
  • Eliminates the need for AmPLink USB Adapter.
AnDAPT AmP8DB3 Evaluation Board

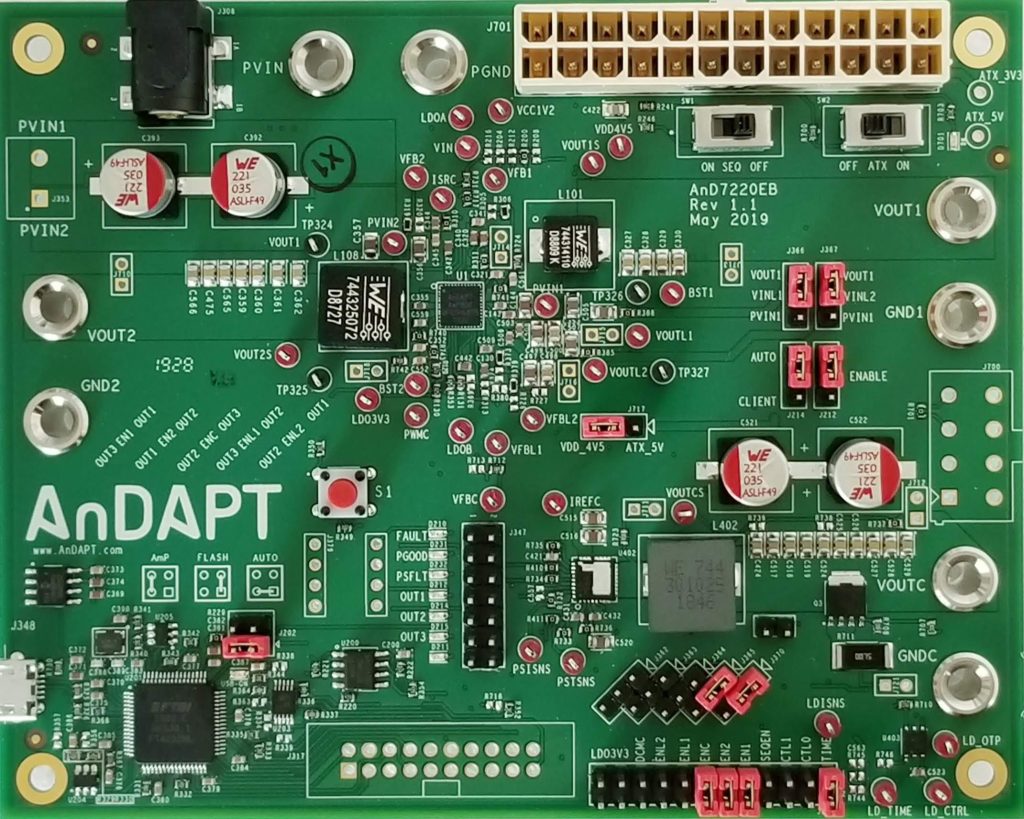

AnD7220EB

Covers the main features of the AmP8DB6QF65 and
eliminates the need for AmPLink USB Adapter.

AnD7220EB

Covers the main features of the AmP8DB6QF65 and eliminates the need for AmPLink USB Adapter.

AnDAPT AnD7220EB Evaluation Board

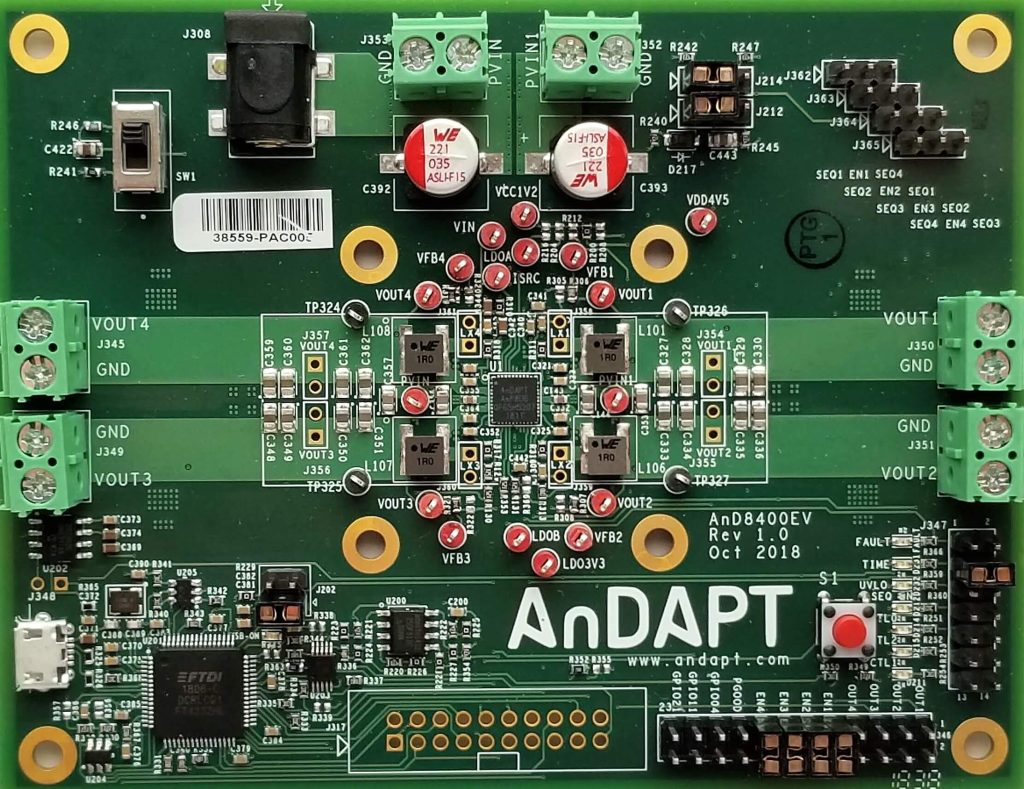

AnD8400EB

Demonstrates the AnD84XX Chip

AnDAPT AnD8400EB Evaluation Board

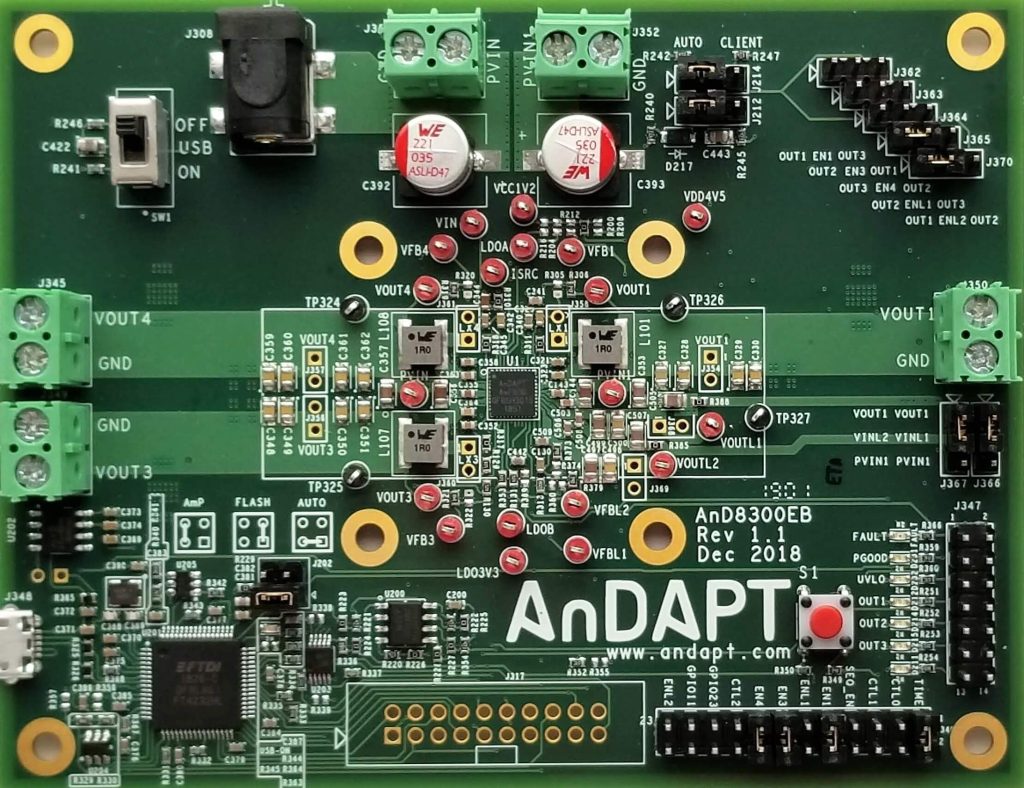

AnD8300EB

Demonstrates the AnD83XX Chip

AnDAPT AnD8320EB Evaluation Board

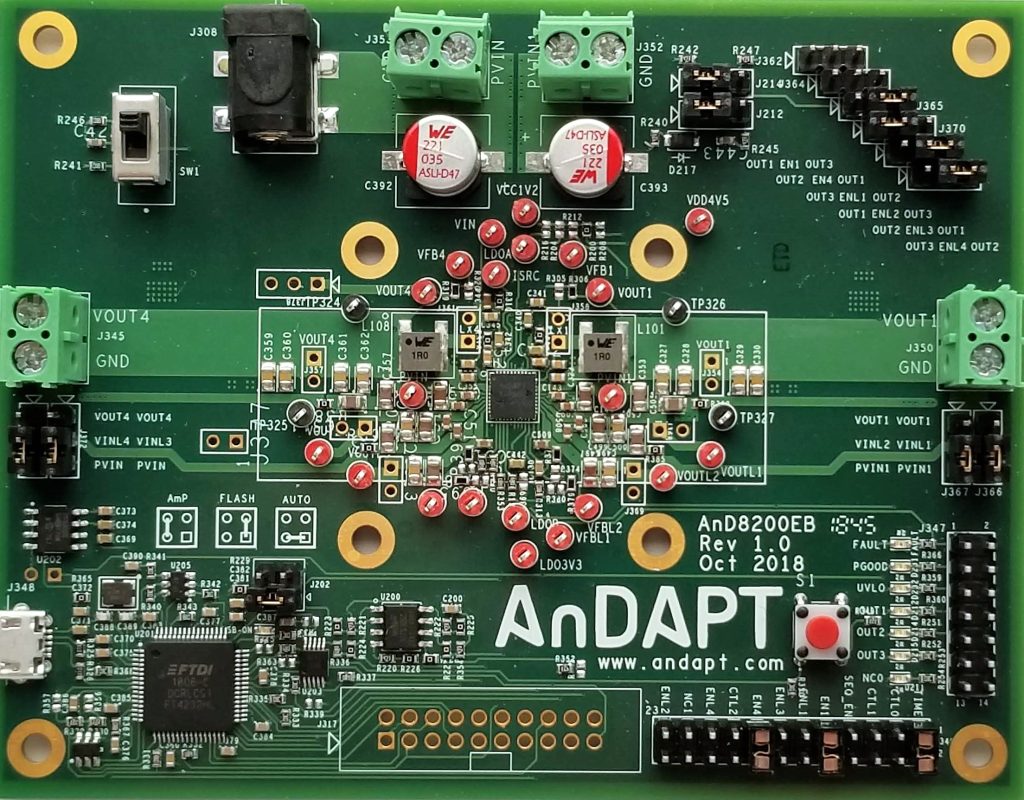

AnD8200EB

Demonstrates the AnD82XX Chip

AnDAPT AnD8240EB Evaluation Board
