Full Power Domain

ARD_X_ZUM_D2

Zynq UltraScale+ MPSoC
(Full Power Domain)

The ARD_X_ZUM_D2 is a scalable power supply designed to provide power to Xilinx Zynq UltraScale+ (ZU+) MPSoC Full Power Domain FPGAs. The design is scalable to support the most basic ZU2CG device with a dual-core Arm Cortex-53 application processor and dual-core Arm Cortex-R5F real-time processor to ZU19EG products that have graphics processing capabilities (GPUs) to ZU5EV devices with quad-core Arm Cortex-A53 application processor and dual-core Arm Cortex-R5 real-time processor with video processing abilities.

WebAmP R.D. Tool

Download Test Data

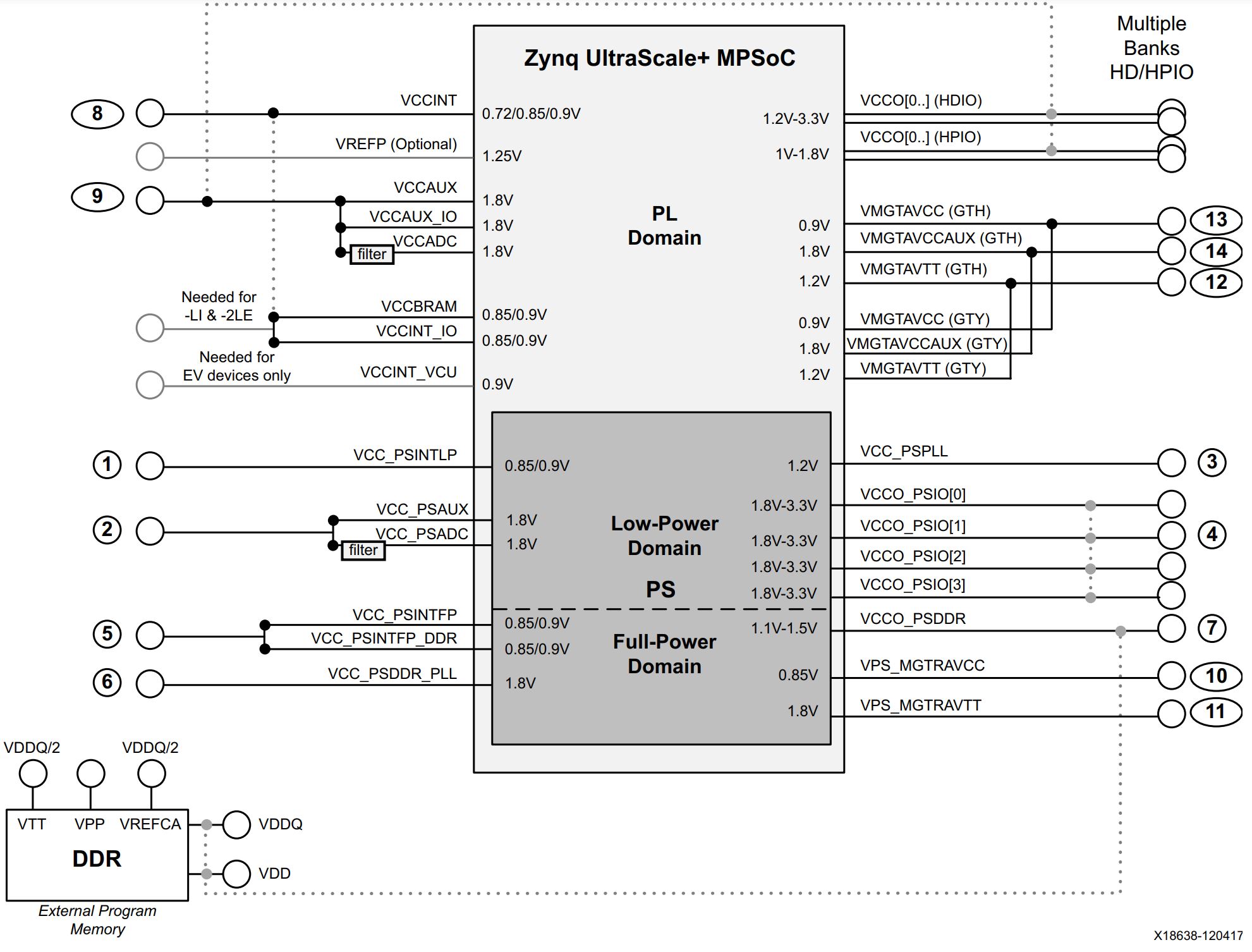

FULL POWER DOMAIN

Image Courtesy of AMD

POWER TREE MAPPING – FULL POWER DOMAIN

#	Rail	Seq	Power Component	Type	Upstream Rail	Vinput (V)	Vout (V)	Iout (A)	AnDAPT PMIC
1	VCC_PSINTLP	1	C200	Sync Buck	V_IN	12	0.85/0.9	3.15 + 2.75	ARD_X_ZUM_D2_IC1
2	VCC_PSAUX, VCC_PSADC	2	C200	Sync Buck	V_IN	12	1.8	1.2 + 0.1 + 0.5 + 1.82 + 0.1 + 0.3	ARD_X_ZUM_D2_IC1
3	VCC_PSPLL	3	C200	Sync Buck	V_IN	12	1.2	1.7	ARD_X_ZUM_D2_IC1
4	VCCO_PSIO	4	C150	Async Buck	V_IN	12	1.8 – 3.3	1	ARD_X_ZUM_D2_IC1
5	VCC_PSINTFP, VCC_PSINTFP_DDR	5	C750	Load Switch	VCC_PSINTLP	0.85/0.9	0.85/0.9	2.75	ARD_X_ZUM_D2_IC1
6	VCC_PSDDR_PLL	6	C750	Load Switch	VCC_PSAUX	1.8	1.8	0.1	ARD_X_ZUM_D2_IC2
7	VCCO_PSDDR	7	C710	SIM LDO	VCC_PSAUX	1.8	1.1 – 1.5	0.5	ARD_X_ZUM_D2_IC2
8	VCCINT, VCCBRAM, VCCINT_IO	8	C860	DrMOS Ctrl	V_IN	12	0.85	(1.6 – 29.2) + 0.3	ARD_X_ZUM_D2_IC2
9	VCCINT_VCU*	8	C200	Sync Buck	V_IN	12	0.85	3	ARD_X_ZUM_D2_IC2
10	VCCAUX, VCCAUX_IO, VCCADC, DDR_VPP1	9	C750	Load Switch	VCC_PSAUX	1.8	1.8	1.82	ARD_X_ZUM_D2_IC2
11	VPS_MGTRAVCC	10	C750	Load Switch	VCCINT	0.85	0.85	0.3	ARD_X_ZUM_D2_IC2
12	VPS_MGTRAVTT	11	C750	Load Switch	VCC_PSAUX	1.8	1.8	0.1	ARD_X_ZUM_D2_IC2
13	VMGTAVTT (GTH), VMGTYAVTT (GTY)	12	C220	Sync Buck HC	V_IN	12	1.2	2.5 – 10	ARD_X_ZUM_D2_IC3
14	VMGTAVCC (GTH), VMGTAVCC (GTY)	13	C200	Sync Buck	V_IN	12	0.9	6	ARD_X_ZUM_D2_IC3
15	VMGTVCCAUX (GTH), VMGTYVCCAUX (GTY)	14	C750	Load Switch	VCC_PSAUX	1.8	1.8	0.3	ARD_X_ZUM_D2_IC3
16	HDIO_VCCO	14	C200	Async Buck	V_IN	12	1.2 – 3.3	0.5	ARD_X_ZUM_D2_IC3
17	HPIO_VCCO	11	C150	Async Buck	V_IN	12	1 – 1.8	1	ARD_X_ZUM_D2_IC3

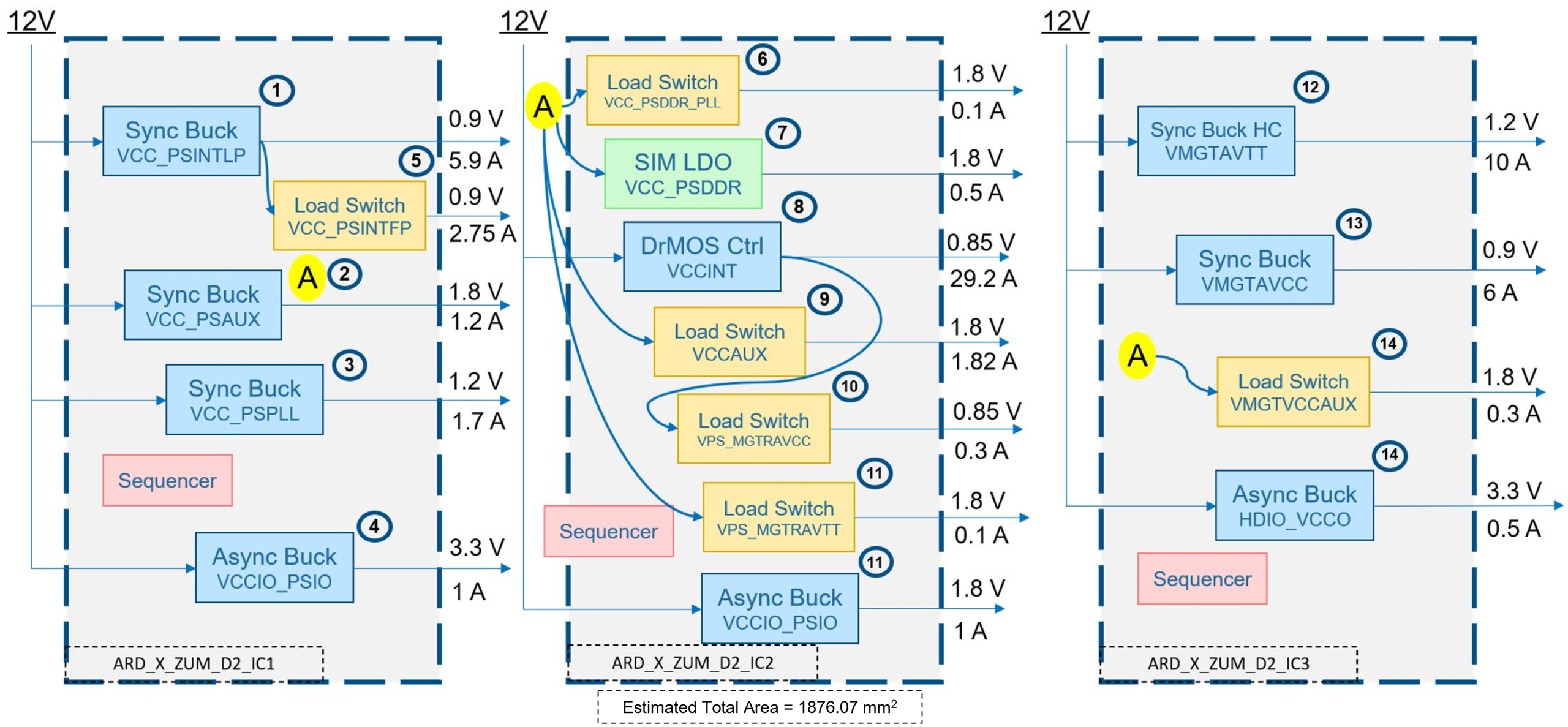

ANDAPT SOLUTION – FULL POWER DOMAIN

DESIGN VIEW IC1

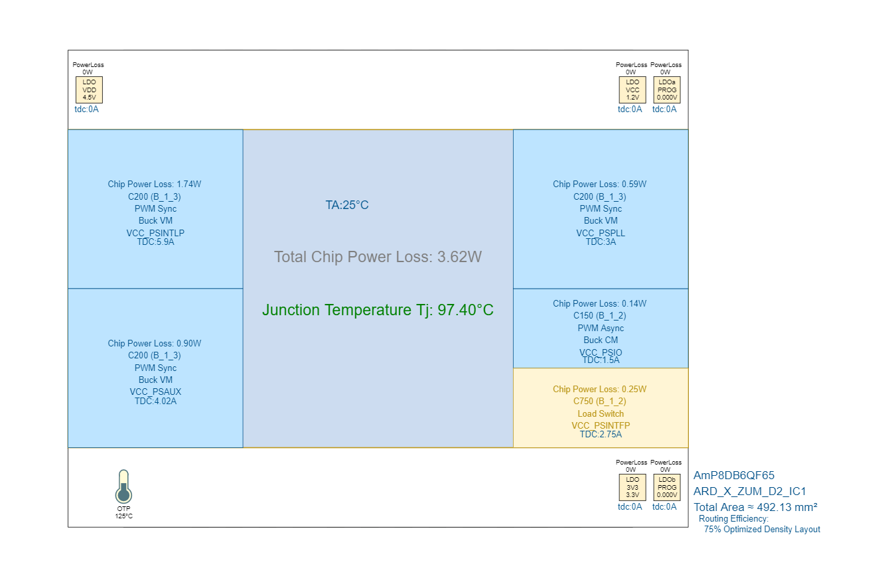

THERMAL VIEW IC1

DESIGN VIEW IC2

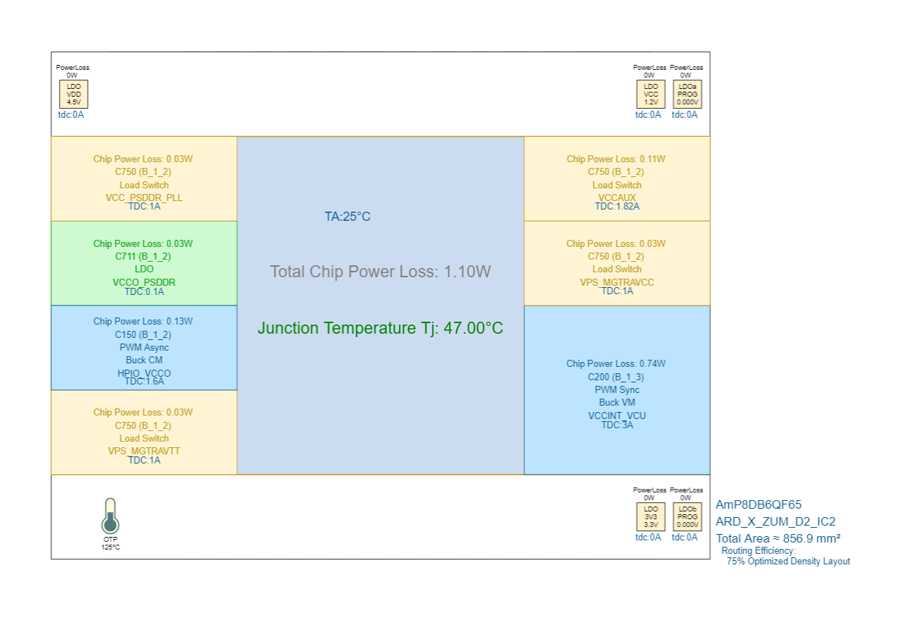

THERMAL VIEW IC2

DESIGN VIEW IC3

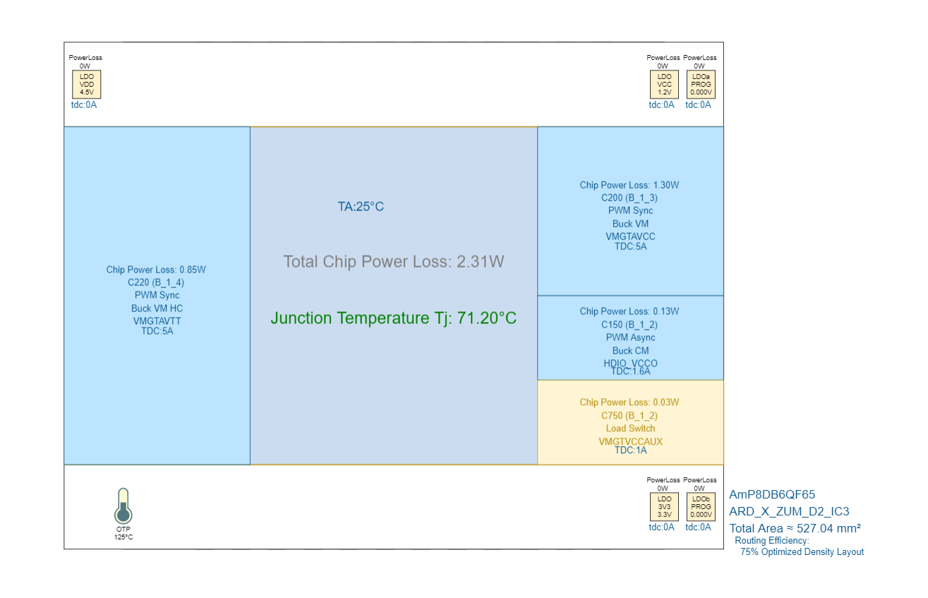

THERMAL VIEW IC3

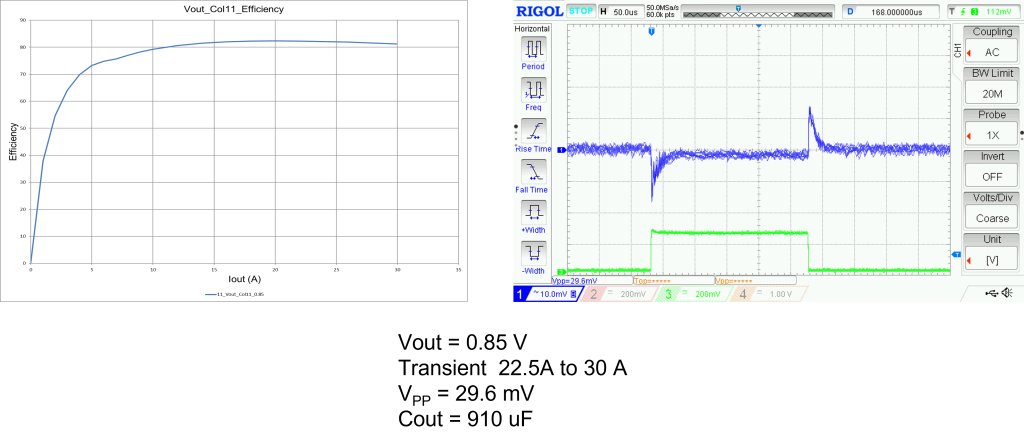

TEST DATA
