ARD_X_ZUM_D1

Zynq UltraScale+ MPSoC (Full Power Management)

The ARD_X_ZUM_D1 is a scalable power supply designed to provide power to Xilinx Zynq UltraScale+ (ZU+) MPSoC Full Power Domain FPGAs. The design is scalable to support the most basic ZU2CG device with a dual-core Arm Cortex-53 application processor and dual-core Arm Cortex-R5F real-time processor to ZU3EG products that have graphics processing capabilities (GPUs).

Goto WebAmP R.D. Tool
Download Test Data

Design recommended by Xilinx/AMD

+ (ZU+) MPSoC (Full Power Management)

Image courtesy Xilinx:
https://www.xilinx.com/support/documentation/user_guides/ug583-ultrascale-pcb-design.pdf

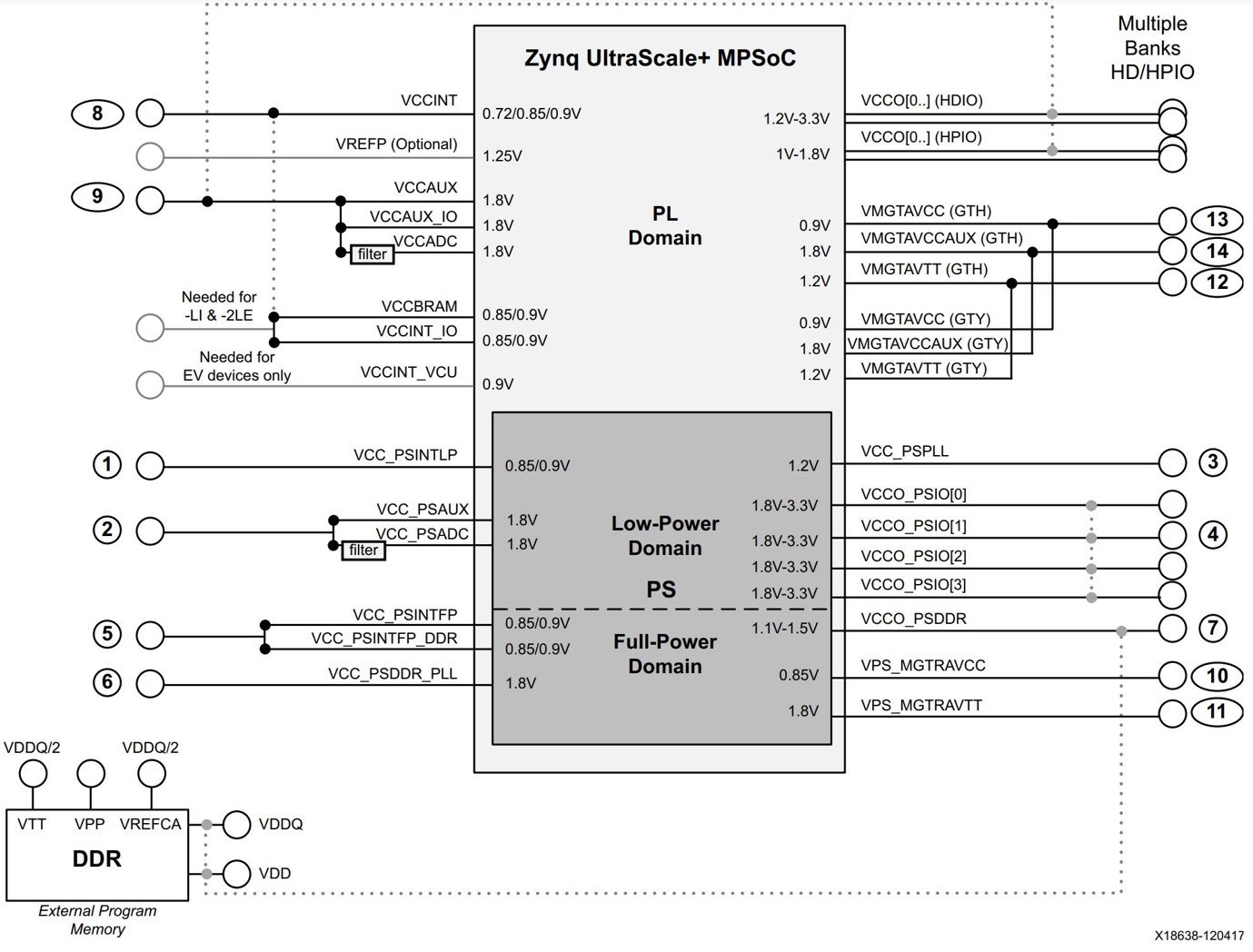

POWER TREE MAPPING - (Full Power Management)

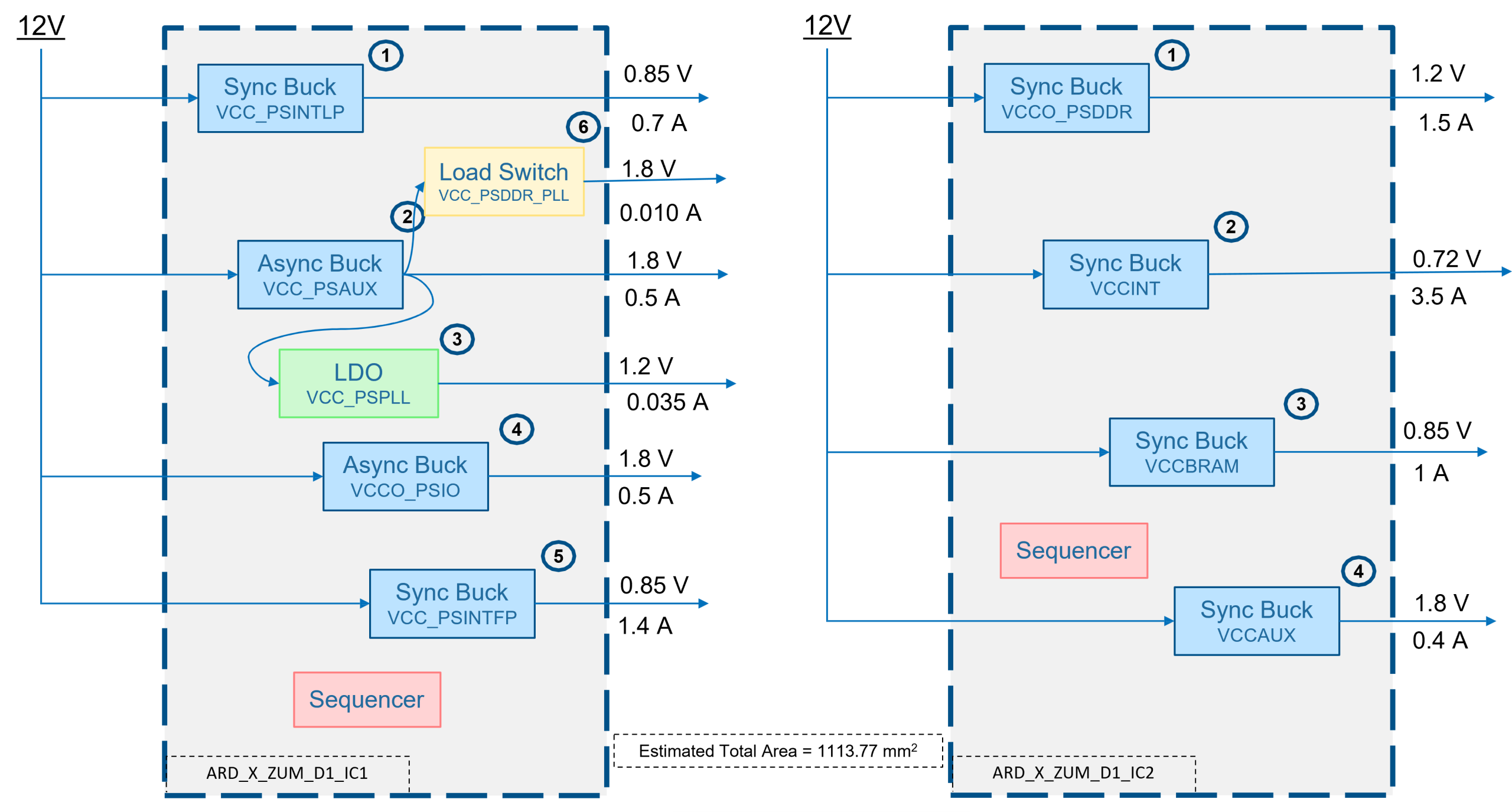

ANDAPT SOLUTION - (Full Power Management)

DESIGN VIEW IC1 (Full Power Management)

DESIGN VIEW IC2 (Full Power Management)

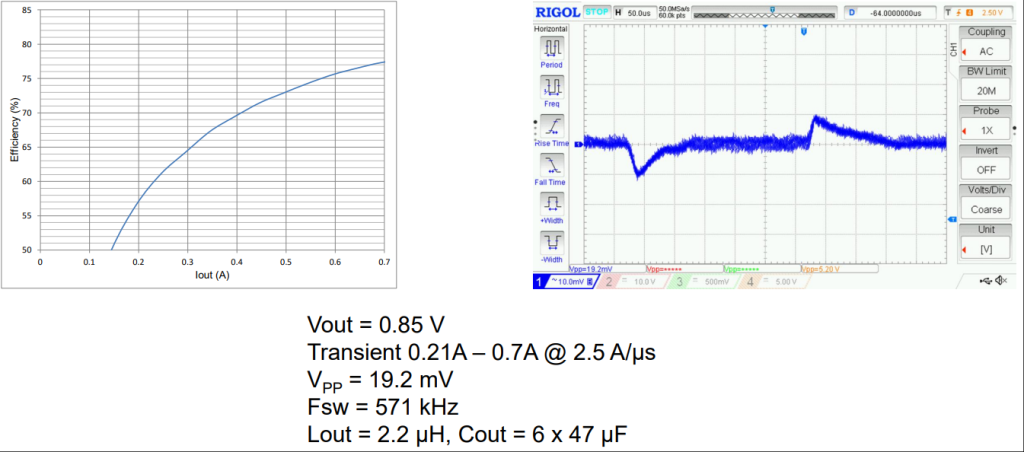

Test Data

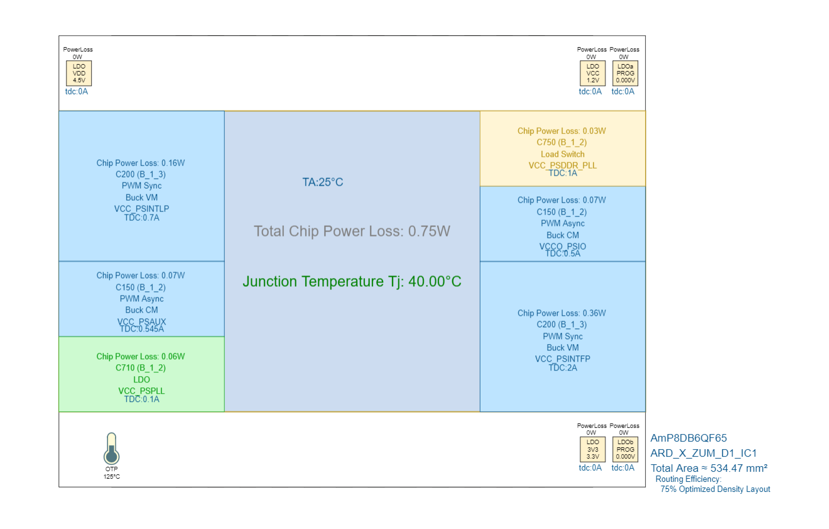

Thermal DESIGN VIEW IC1 (Full Power Management)

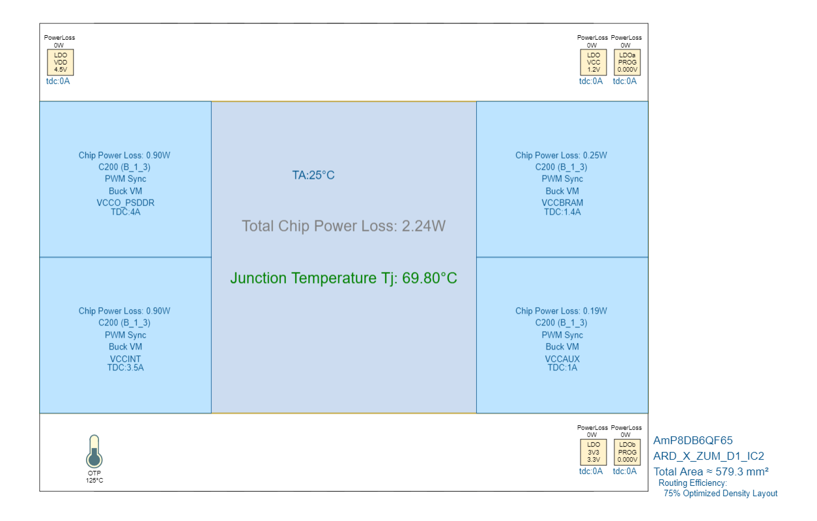

Thermal DESIGN VIEW IC2 (Full Power Management)

for more test data, click Downlod Bench Data below:

Download Design
Download Test Data
Goto WebAmP R.D. Tool
