Full Power Domain

ARD_X_ZUM_D2

Zynq UltraScale+ MPSoC
(Full Power Domain)

The ARD_X_ZUM_D2 is a scalable power supply designed to provide power to Xilinx Zynq UltraScale+ (ZU+) MPSoC Full Power Domain FPGAs. The design is scalable to support the most basic ZU2CG device with a dual-core Arm Cortex-53 application processor and dual-core Arm Cortex-R5F real-time processor to ZU19EG products that have graphics processing capabilities (GPUs) to ZU5EV devices with quad-core Arm Cortex-A53 application processor and dual-core Arm Cortex-R5 real-time processor with video processing abilities.

FULL POWER DOMAIN

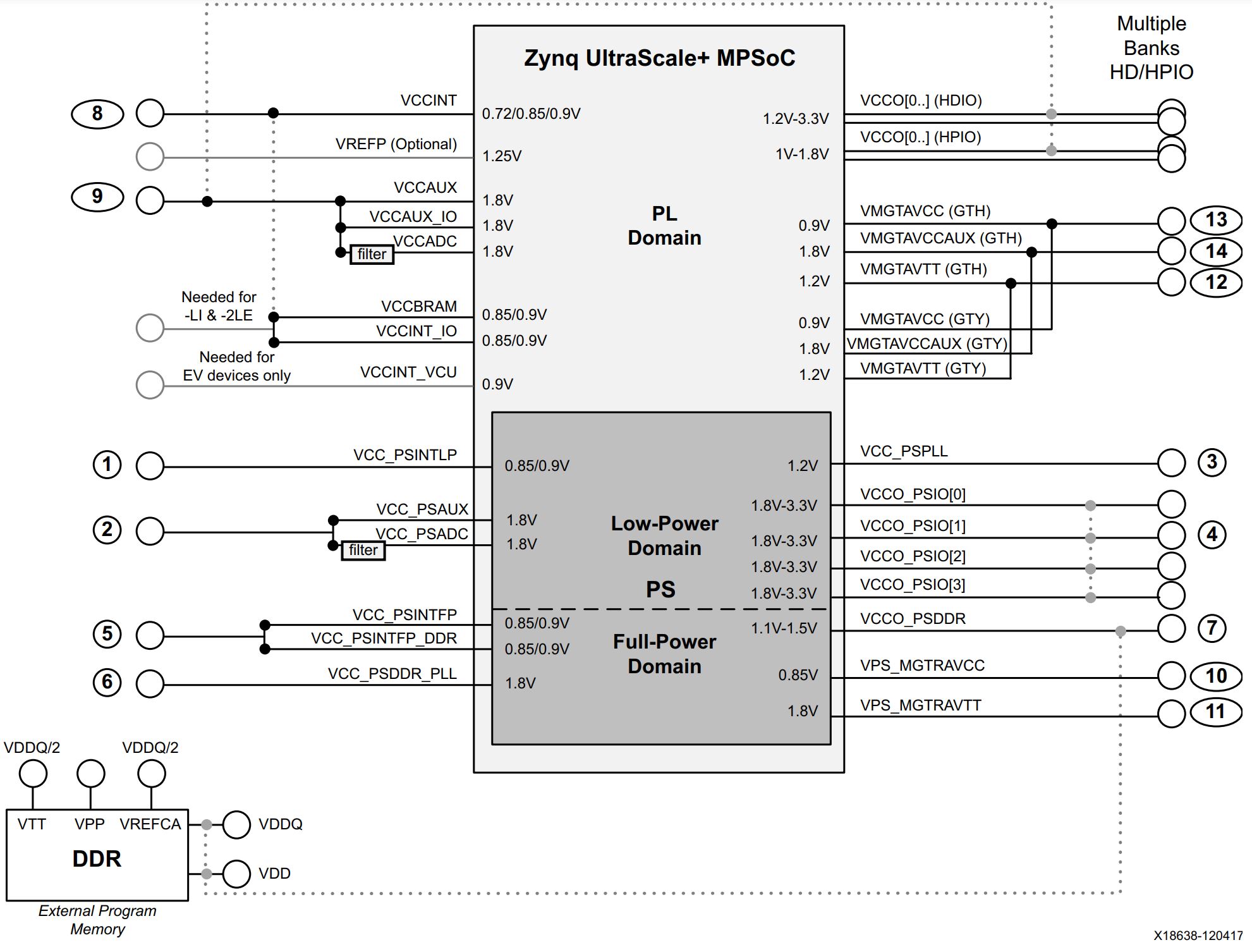

POWER TREE MAPPING – FULL POWER DOMAIN

#RailSeqPower ComponentTypeUpstream RailVinput (V)Vout (V)Iout (A)AnDAPT PMIC
1VCC_PSINTLP1C200Sync BuckVIN120.85/0.93.15 + 2.75ARD_X_ZUM_D2_IC1
2VCC_PSAUX, VCC_PSADC2C200Sync BuckVIN121.81.2 + 0.1 + 0.5 + 1.82 + 0.1 + 0.3ARD_X_ZUM_D2_IC1
3VCC_PSPLL3C200Sync BuckVIN121.21.7ARD_X_ZUM_D2_IC1
4VCCO_PSIO4C150Async BuckVIN121.8 – 3.31ARD_X_ZUM_D2_IC1
5VCC_PSINTFP, VCC_PSINTFP_DDR5C750Load SwitchVCC_PSINTLP0.85/0.90.85/0.92.75ARD_X_ZUM_D2_IC1
6VCC_PSDDR_PLL6C750Load SwitchVCC_PSAUX1.81.80.1ARD_X_ZUM_D2_IC2
7VCCO_PSDDR7C710SIM LDOVCC_PSAUX1.81.1 – 1.50.5ARD_X_ZUM_D2_IC2
8VCCINT, VCCBRAM, VCCINT_IO8C860DrMOS CtrlVIN120.85(1.6 – 29.2) + 0.3ARD_X_ZUM_D2_IC2
9VCCINT_VCU*8C200Sync BuckVIN120.853ARD_X_ZUM_D2_IC2
10VCCAUX, VCCAUX_IO, VCCADC, DDR_VPP19C750Load SwitchVCC_PSAUX1.81.81.82ARD_X_ZUM_D2_IC2
11VPS_MGTRAVCC10C750Load SwitchVCCINT0.850.850.3ARD_X_ZUM_D2_IC2
12VPS_MGTRAVTT11C750Load SwitchVCC_PSAUX1.81.80.1ARD_X_ZUM_D2_IC2
13VMGTAVTT (GTH),
VMGTYAVTT (GTY)
12C220Sync Buck HCVIN121.22.5 – 10ARD_X_ZUM_D2_IC3
14VMGTAVCC (GTH),
VMGTAVCC (GTY)
13C200Sync BuckVIN120.96ARD_X_ZUM_D2_IC3
15VMGTVCCAUX (GTH),
VMGTYVCCAUX (GTY)
14C750Load SwitchVCC_PSAUX1.81.80.3ARD_X_ZUM_D2_IC3
16HDIO_VCCO14C200Async BuckVIN121.2 – 3.30.5ARD_X_ZUM_D2_IC3
17HPIO_VCCO11C150Async BuckVIN121 – 1.81ARD_X_ZUM_D2_IC3

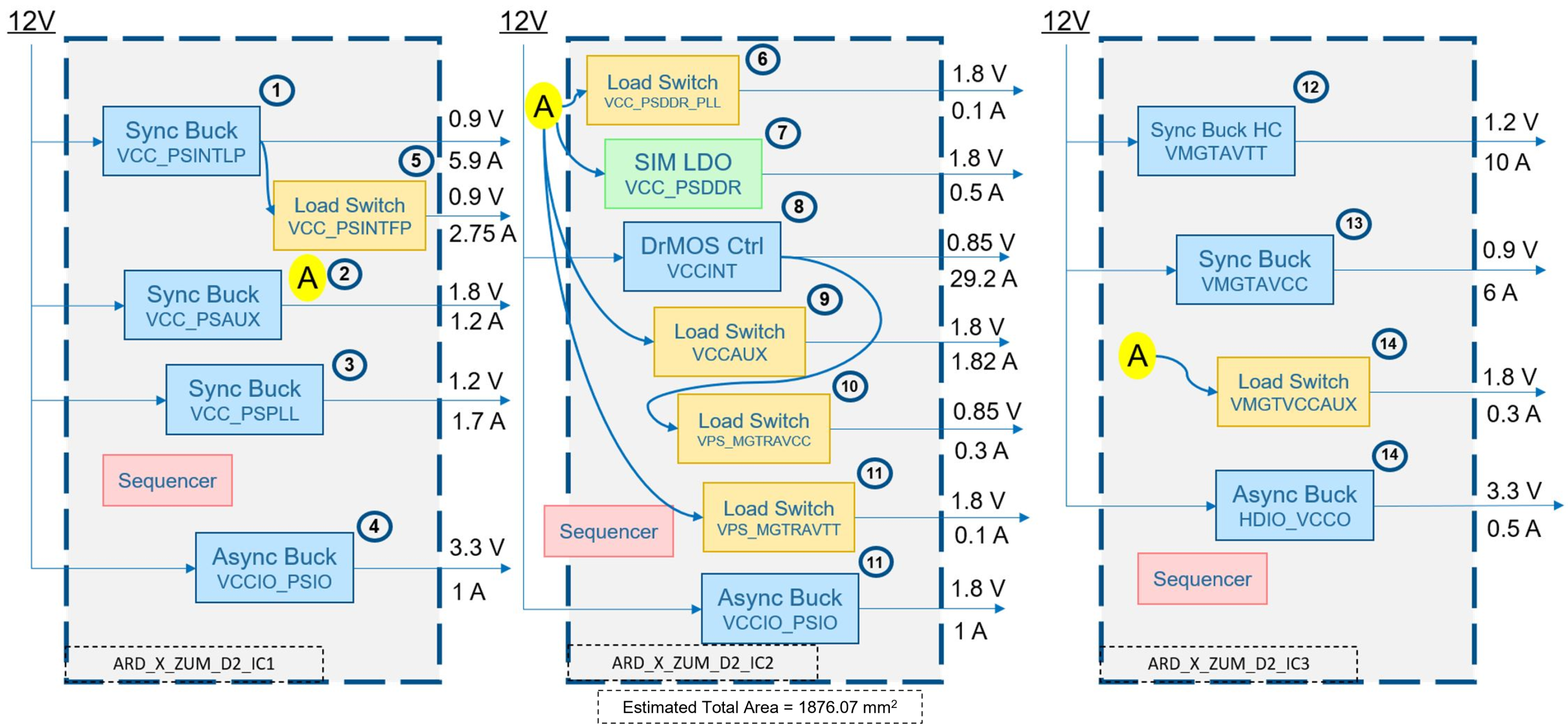

ANDAPT SOLUTION – FULL POWER DOMAIN

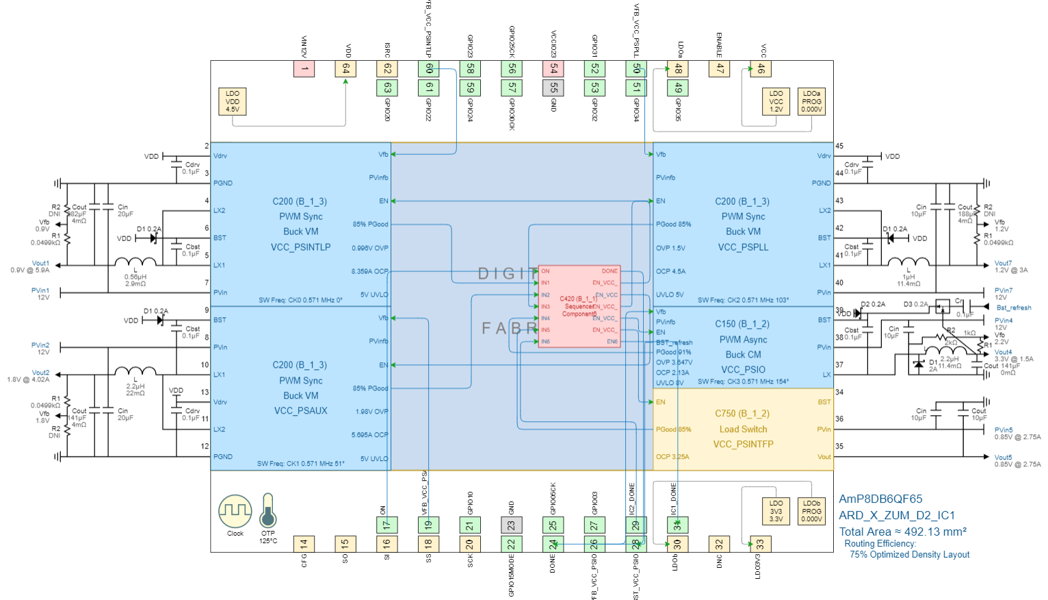

DESIGN VIEW IC1

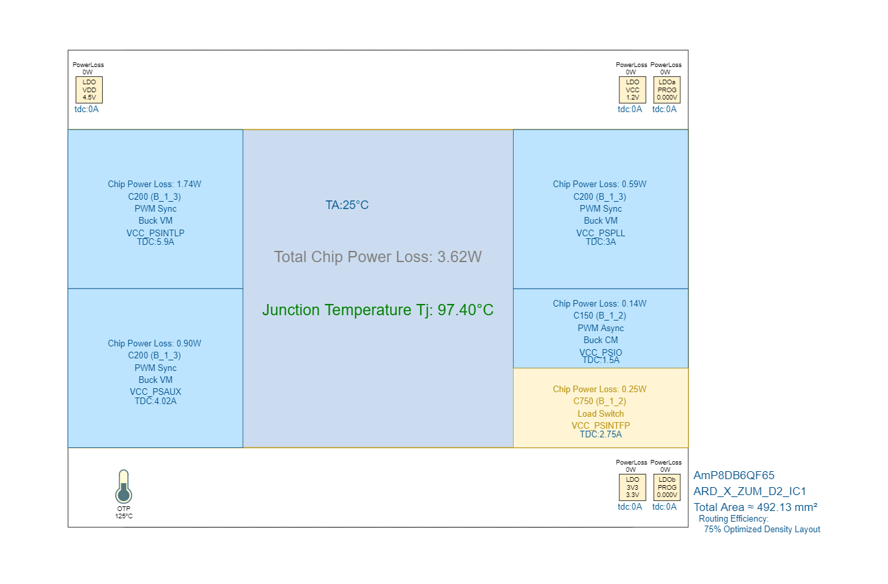

THERMAL VIEW IC1

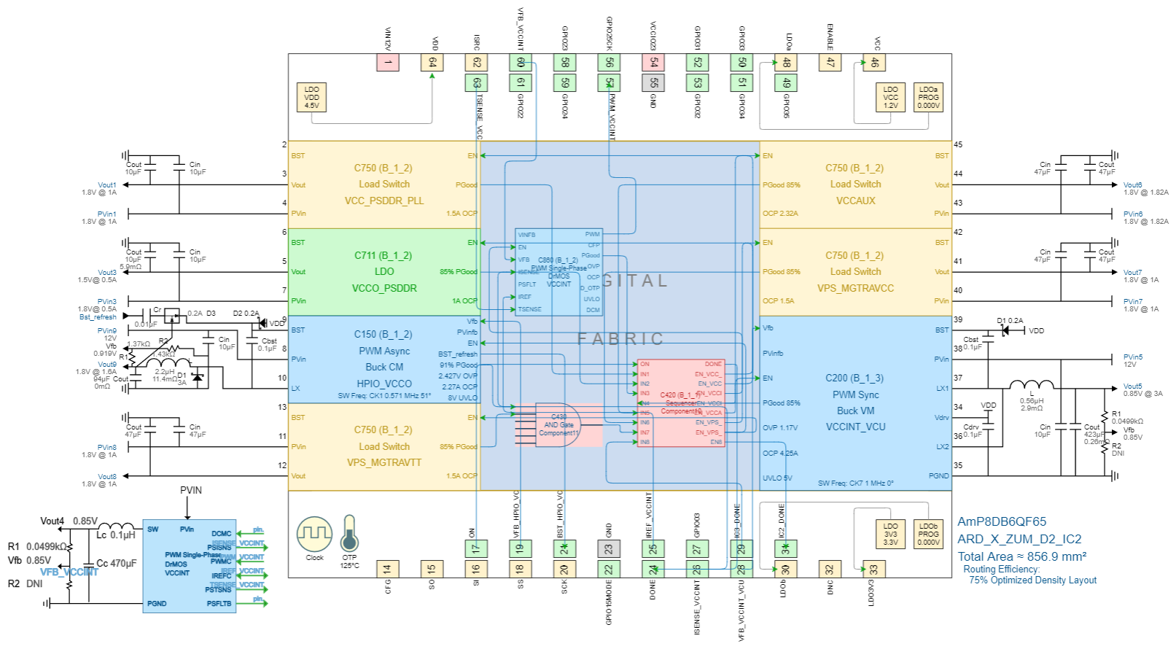

DESIGN VIEW IC2

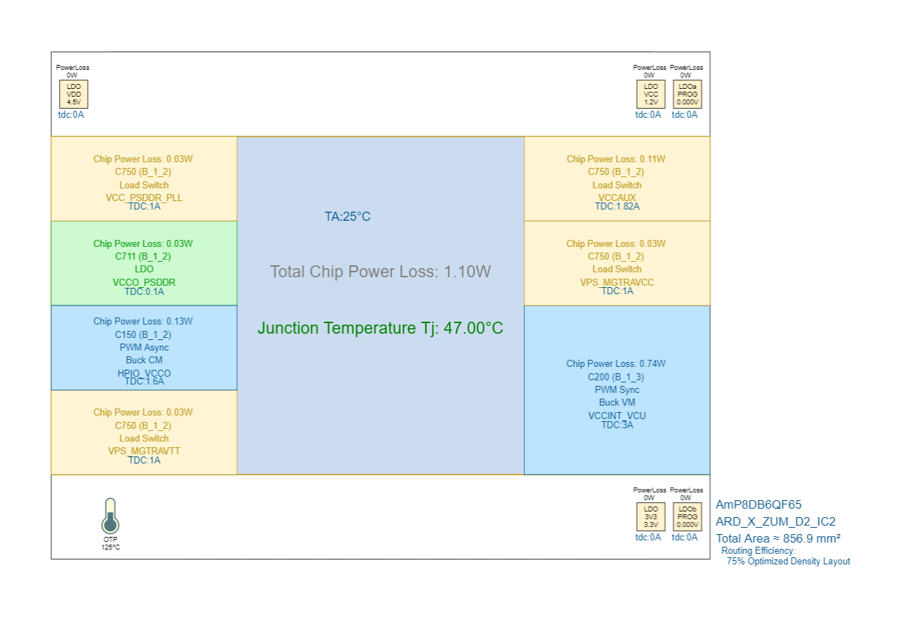

THERMAL VIEW IC2

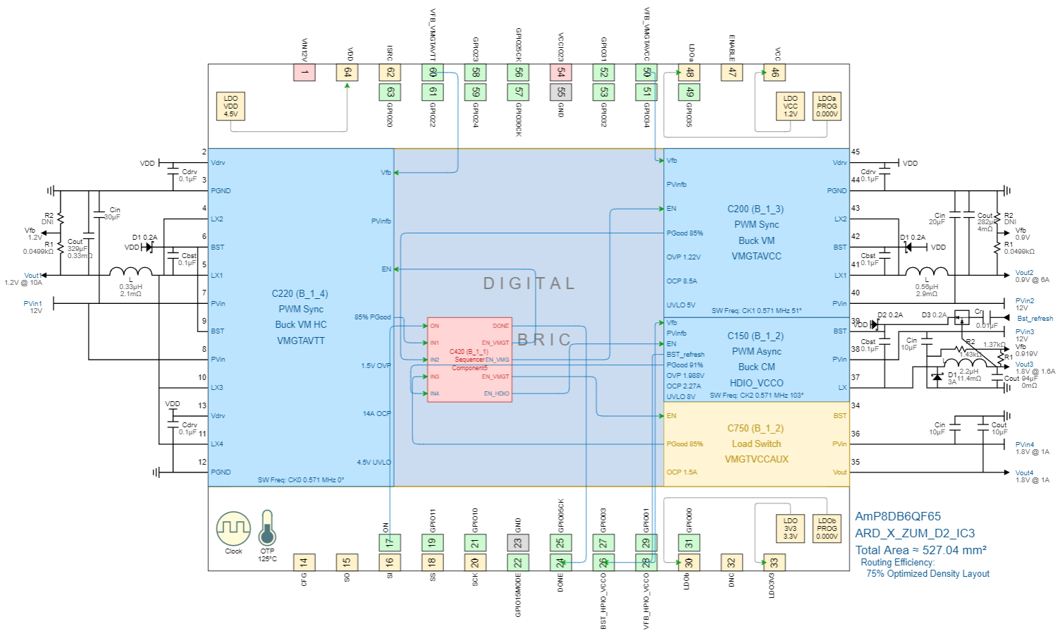

DESIGN VIEW IC3

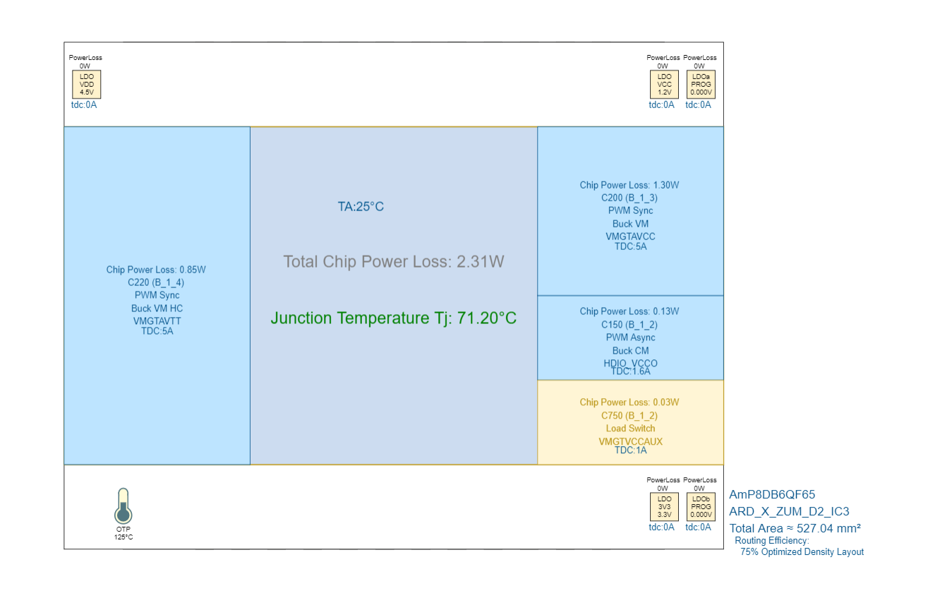

THERMAL VIEW IC3

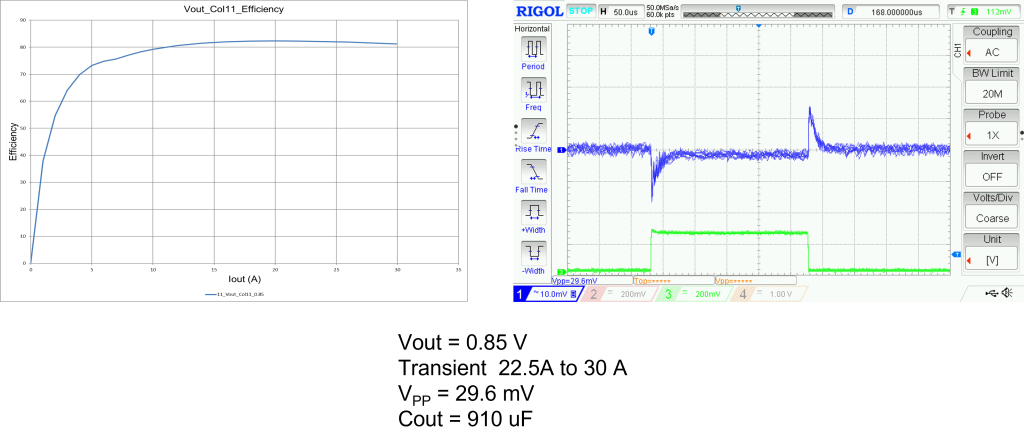

TEST DATA
